Names Of Parts; Fitting Of Dial Pointer - Sharp QT-CD210 Service Manual

11.
(TAPE) Record Button
12.
(TAPE) Play Button
13.
(TAPE) Rewind Button
14.
(TAPE) Fast Forward Button
15.
(TAPE) Stop/Eject Button
16.
(TAPE) Pause Button
17.
Cassette Compartment
18.
CD Compartment
19.
Tuning Control
10.
(CD) Stop Button
11.
(CD) Track Down/Review Button
12.
Volume Control
13.
Function Selector/Power Switch
14.
(CD) Track Up/Cue Button
15.
(CD) Play/Pause Button
16.
(CD) Play Indicator
17.
(CD) Pause Indicator
18.
Battery Compartment
19.
FM Telescopic Rod Aerial
20.
AC Power Input Socket

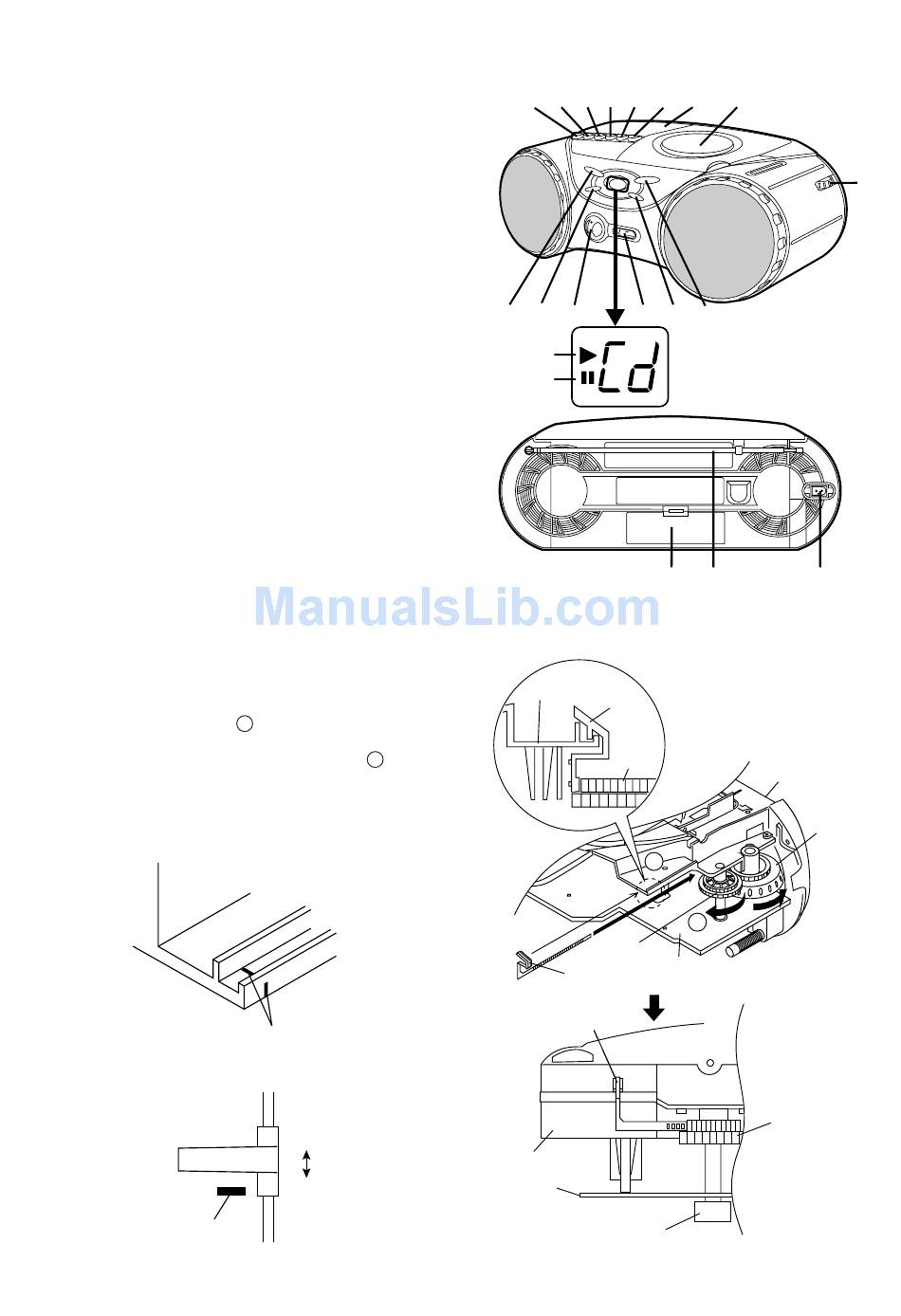

Setting method of the dial pointer
1. Remove the front cabinet. (Refer to Fig.4-1 on page 4,
"Disassembly method".)
2. Remove the dial pointer.
3. Insert the dial pointer from A of the top cabinet so that it
engages with the drum gear.
4. Fully turn the drum in the opposite direction of B and set
it to the FL marks.
5. Reassemble the front cabinet.
Mark
Figure 3-1

NAMES OF PARTS

FITTING OF DIAL POINTER

FL Mark
Carved Seal
FH
FL
1 2 3 4 5 6
10 11 12
16
17
Top Cabinet
Dial
Pointer
Dial Pointer
Dial Pointer
Top Cabinet
Main
PWB
– 3 –
QT-CD210/C
7 8
13 14 15
18 19
Drum
Top Cabinet
A
B
Drum
Main
PWB
Drum
Variable Capacitor
Figure 3-2
9
20
Tuning
Knob
