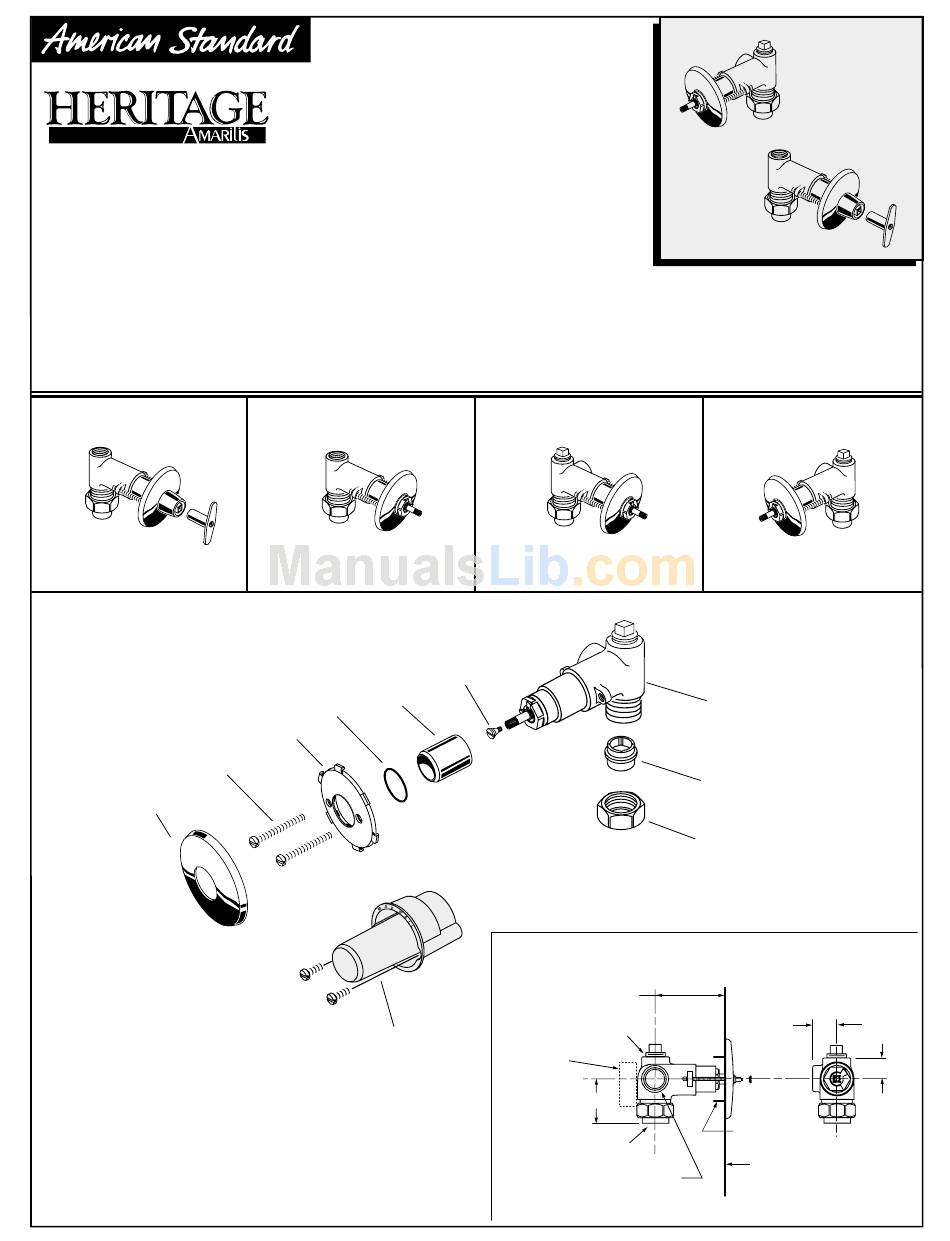

HERITAGE SERIES
SINGLE BUILT-IN
WALL SUPPLY VALVES
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
7000 SERIES
STRAIGHT VALVE
W/LOOSE KEY
MOUNTING
SCREWS
ESCUTCHEON
P r i n t e d i n M e x i c o
Installation
Instructions
7000 SERIES
7001 SERIES
7006 SERIES
7007 SERIES
7001 SERIES
STRAIGHT VALVE
VALVE
COVER
O-RING
FIXATION
PLATE
PLASTER
GUARD
7006 SERIES
BYPASS VALVE, "HOT"
VALVE
SCREW
ROUGHING-IN DIMENSIONS
2-3/8 1/2
BY-PASS OUTLET THREADED
1/2'' N.P.T. INSIDE
CROSS
BRACE
2
UNION INLET
1/2"-14 N.P.T.
BY-PASS OUTLET THREADED
1/2'' N.P.T. INSIDE
Certified to comply with ANSI A112.18.1M
U.S. Patent No. 5,819,789
7007 SERIES
BYPASS VALVE, "COLD"
VALVE
BODY
UNION
SWIVEL
COUPLING
NUT
+ -
2.1 DIA.
FINISHED
WALL
3 4 8 0 3 N
1-1/8
1-1/8
Advertisement
Related Manuals for American Standard Single Built-In Wall Supply Valves 7000
Summary of Contents for American Standard Single Built-In Wall Supply Valves 7000
-
Page 1: Installation Instructions
HERITAGE SERIES SINGLE BUILT-IN WALL SUPPLY VALVES Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. 7000 SERIES STRAIGHT VALVE W/LOOSE KEY FIXATION PLATE MOUNTING... - Page 2 Turn off hot and cold water CAUTION supplies before beginning. ROUGHING-IN FITTING Prepare water supplies per "Roughing-in Dimensions." Slip COUPLING NUT over supply pipe and screw UNION SWIVEL to pipe. For Sweat Connection: Slip COUPLING NUT over 5/8'' O.D.supply tube and solder tube into UNION SWIVEL or female inlet of stop. Install VALVE at indicated height and depth.
- Page 3 HERITAGE SERIES ON/OFF & VOLUME CONTROL VALVE - 3/4" INLET/OUTLET Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. HANDLE DECORATOR RING VALVE SCREW PLASTER...
