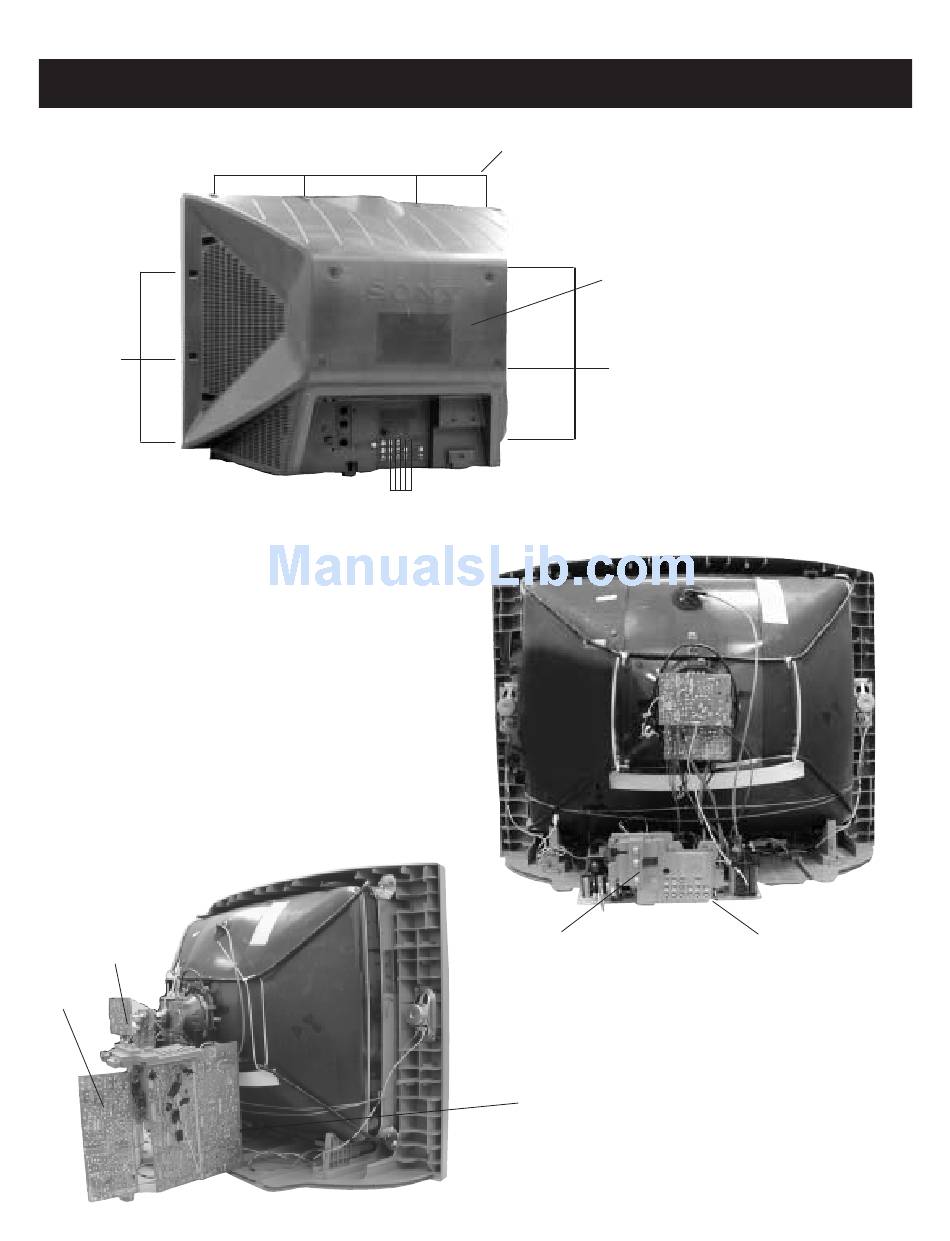

1-1. REAR COVER REMOVAL
3 Screws
+BVTP 4 x 16
1-3. SERVICE POSITION
C Board
GK Board
SECTION 1: DISASSEMBLY
4 Screws
+BVTP 4 x 16
5 Screws
+BVTP 4 x 16
1-2. CHASSIS ASSEMBLY REMOVAL
A Board
— 10 —
Rear Cover
3 Screws
+BVTP 4 x 16
Claw
Chassis Assembly
KV-27FS100/27FS200/29FS100/
32FS100/32FS200/34FS100
