INSTRUCTIONS

BASIC FUNCTION

3
4
5
6. SEEK Knob/( / )/ (SEEK+/SEEK-)/(SEEK/SEEK)(Speed forward/backward/Select station/song)
In radio mode, press/rotate the knob to select station upward/backward. Long press/rotate the knob to
automatically scan station.
In playback mode, short press/rotate the knob to select song upward/backward,long press/rotate it to
achieve speed forward/backward function.
7
Dual (front and rear)USB
Warning :You can only use either front or rear USB at a time.Never connect both front
and rear USB at the same time! This could cause malfunctions.
8
9.MIC Input
Bluetooth MIC input.
Bluetooth
iPod
03

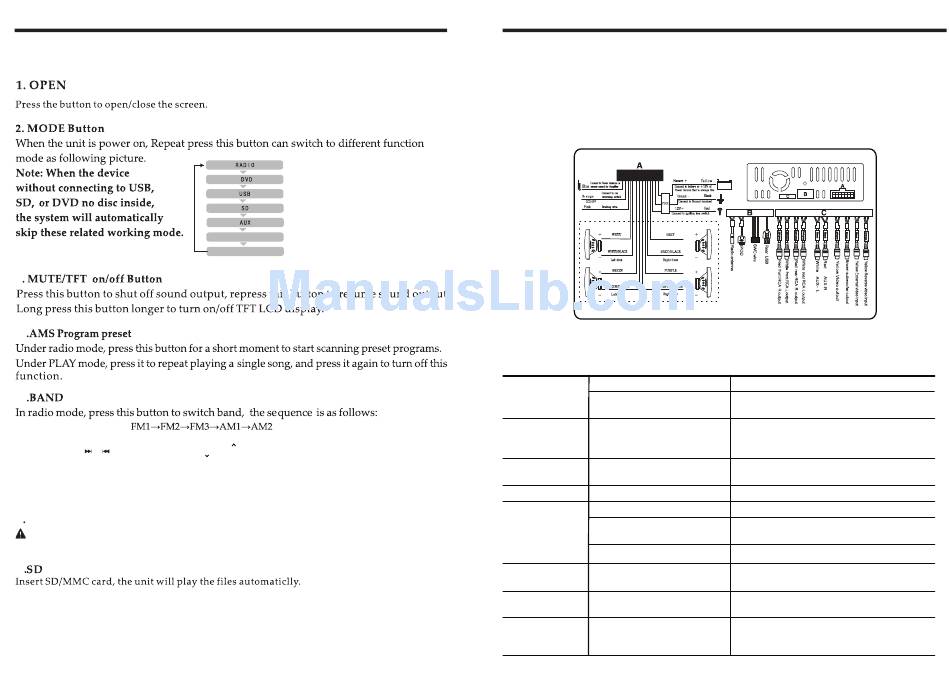

WIRING DIAGRAM

This player is equipped with ISO standard connector, please follow below instruction:
Red - ACC ON (+12V)
●
● Yellow – 12 V Constant
Black – Ground wire
●
Blue - Power Antenna / Remote Amp Turn On
●
Orange – Back-Up Camera Trigger (+)
●
TROUBLE SHOOTING
PROBLEM CAUSE
Check fuse
Cannot power on
Some factors cause MPU
wrong operation
After ignition switch
Change battery or fuse
off ,setting
information all lose
Poor performance
Weak signal
of radio station
Connot load disk There is a disk inside
Disc is scratched
Put wrong side of disc into
Cannot play disc
the unit
Lens is dirty
Cannot switch
There is only one language/
language/subtitle
subtitle in disc
Other factors cause MPU
No image
wrong operation
Cannot watch
It's not allowed to watch image
image during
during driving
driving
INSTRUCTIONS
Grey/Grey black - Right front speaker (+/-)
●
● White/White black - Left front speaker (+/-)
Purple/Purple black - Right rear speaker (+/-)
●
● Green/Green black - Left rear speaker (+/-)
Pink – Parking Brake (-)
●
SOLUTION
Change fuse same as the old one
Press RES button on the panel by
penpoint, then, power on
Reset information and save
Move the car to another place, then research
Remove disc before inserting another one
Change new disc
Insert in the disk with sign side up
Clean lens by lens clean disc
If disc is not with multi-language/subtitle,
it cannot switch language/subtitle
Press [RES] button on the panel by
penpoint, then, power on
Park the car in a safe place, put the car stall
in " P " postion, pull up the hand brake,
parking brake wire must be grounded
16
