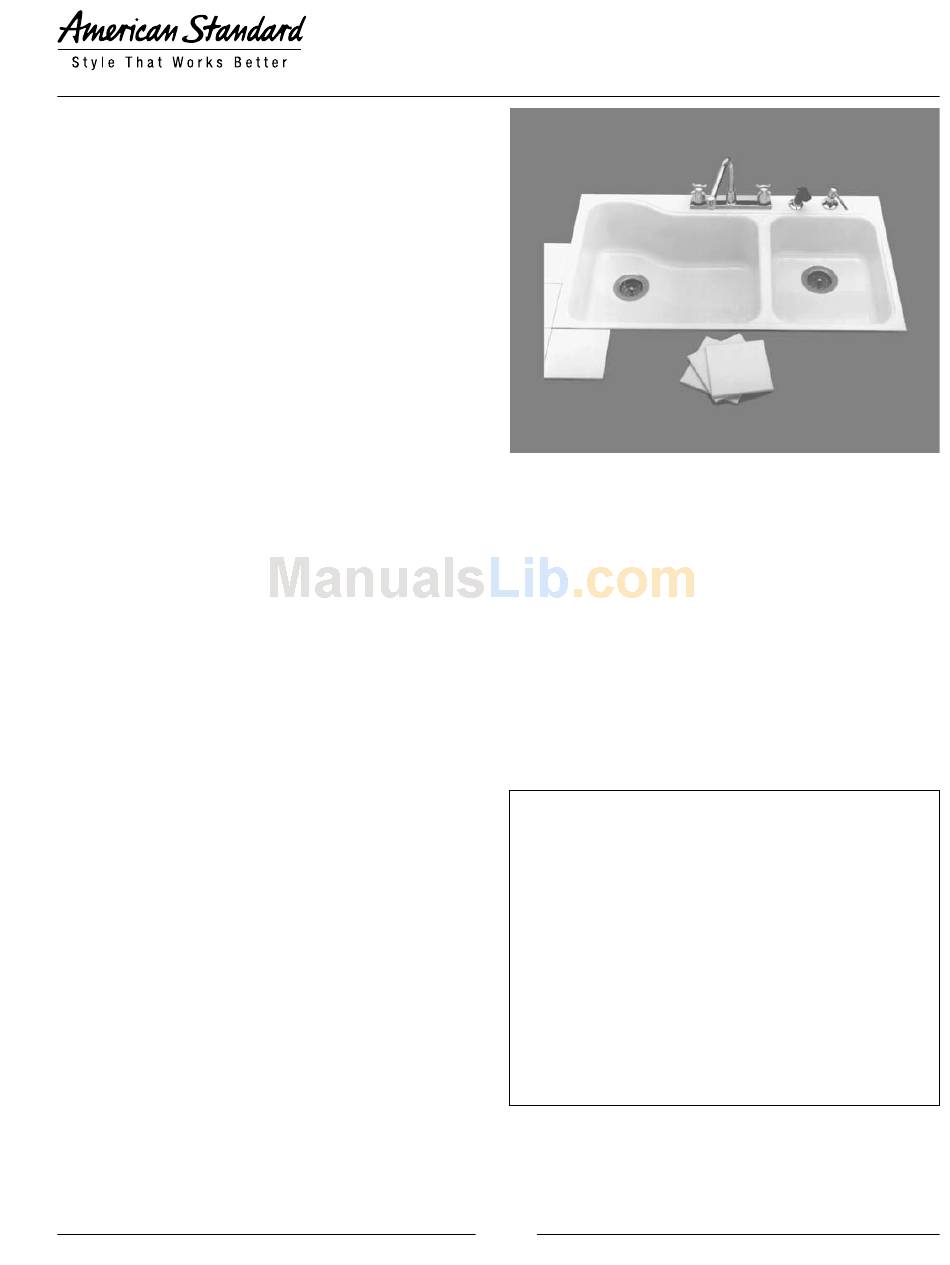

American Standard Silhouette 7196.011 Specification Sheet

SILHOUETTE™ 38" DUAL LEVEL KITCHEN SINK
• Americast brand engineered material
®
• Dual level double bowl design
• Titanium enamel - heat resistant up to 1000°
• Acid-resisting glossy porcelain finish
• Tile-edge installation
• Fits most standard 36" cabinet bases
• Silicone Sealant supplied
• Available in 1, 3, 4, or 5 faucet hole
configuration
• Customized hole punchings available
(see page G56)
Tile Edge:
❏ 7196.011 Center hole only
❏
7196.813 3 hole
❏
7196.814 4 hole
❏ 7196.815 5 hole
Nominal Dimensions:
965 x 559 x 241mm
(38" x 22" x 9-1/2")
Bowl sizes:
Right Hand: 318mm (12-1/2") wide
413mm (16-1/4") front to back
178mm (7") deep
Left Hand: 527mm (20-3/4") wide
476mm (18-3/4") front to back
229mm (9") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.4M for Americast Plumbing Fixtures
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
To Be Specified:
❏ Color:
❏ Faucet*:
❏ Faucet Finish:
❏ Basket Strainer: 4331.013
❏ Soap Dispenser: 4503.115, (specify color):
❏ Traps:
Optional Accessories:
❏ Large Wood Cutting Board: 9000.250
❏ Small Wood Cutting Board: 9000.185
❏ Colander for Cutting Board: 8102.100, Color:
❏ Large Colander: 8103.100, Color:
❏ Web Cover: 8106.100, Color:
❏ Bottom Sink Rack (Left): 7407.100, Color:
* See faucet section for available models
G21
SILHOUETTE™ 38"
DUAL LEVEL SINK
AMERICAST
Revised 2/08
®
