Summary of Contents for Sunpentown SD-52PE
-
Page 1: Instruction Manual

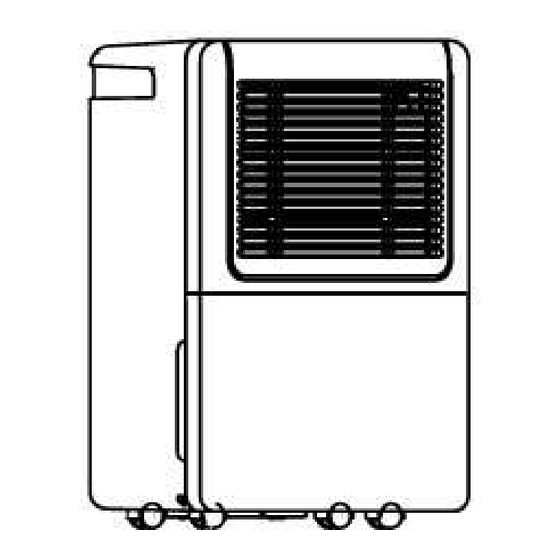

DEHUMIDIFIER with BUILT-IN PUMP MODELS: SD-52PE / SD-72PE INSTRUCTION MANUAL Please read these instructions thoroughly and keep it in a safe place for future reference. -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTUIONS…...……………………………………………………………2 ELECTRICAL INFORMATION .……………………………………………………………3 CONTROL PANEL ….………………………………………………………………………4 FEATURES ………….……………………………………………………………………….5 IDENTIFICATION OF PARTS …………………………….……………………………….6 OPERATING THE UNIT ………..………………………….……………………………….7 WATER DRAINAGE ……….………..…………………………………………………….8 CARE AND MAINTENANCE ………..………………………………………………….10 TECHNICAL SPECIFICATIONS ……………………….………………………………11 TROUBLE SHOOTING …………………………………………………………………..11 SOCIABLE REMARK DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. -
Page 3: Safety Precautuions
BEFORE YOU USE YOUR DEHUMIDIFIER, PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY. SAFETY PRECAUTIONS To prevent injury and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damages. The seriousness is classified by the following indications: WARNING: This symbol indicates the possibility of death or serious injury. -
Page 4: Electrical Information
8. Always operate with filters properly installed. Notes: Clean filter once every two weeks. 9. If water enters the unit, turn unit off immediately and contact Sunpentown. 10. Do not place flower vases or other water container on top of the unit. -
Page 5: Control Panel
CONTROL PANEL Control Buttons: whenever a button is pressed, the unit will make a beep sound to indicate that it is changing modes. PUMP: Press to activate pump operation. NOTE: Make sure the pump drain hose is installed and the continuous drain hose is removed before activating the pump operation. -
Page 6: Features
DISPLAY PANEL Displays the set humidity level (from 35% to 85%) or auto-start/stop time (0-24) while setting, then returns to display actual room humidity level (±5% accuracy), in a range of 30% RH to 90%RH (relative humidity). Displays error codes and protection codes: o AS –... -
Page 7: Identification Of Parts
o When the unit if off: press of the Timer button and the Timer-On indicator will illuminate (indicating auto-start is initiated). Press Timer button again and the Timer-Off indicator will illuminate (indicating auto-stop is initiated). o Press or hold the +/- buttons to change the set time in 0.5-hour increments, up to 10 hours;... -
Page 8: Operating The Unit
OPERATING THE UNIT Positioning the unit A dehumidifier will have little or no effect in drying an adjacent enclosed area, such as a closet, unless there is adequate circulation of air in and out of the area. Do not use outdoors. This dehumidifier is intended for indoor residential applications only. -
Page 9: Water Drainage
Removing collected water - There are three ways to remove collected water. 1. Use the bucket If the unit is off and bucket is full, the Full indicator will illuminate. If the unit is on and bucket becomes full, the compressor and fan will turn off. Full Fig.1 indicator illuminates and digital display shows P2. - Page 10 Make sure the connections are secure so there will be no leaks. Direct the hose towards the drain, be sure there are no kinks that will stop the water flow. Continuous drain is gravity-pulled, be sure the hose is level or going downwards to allow water to flow smoothly.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Always turn the dehumidifier off and unplug from power source before cleaning. Clean the Grille and Housing Use water and a mild detergent. Do not use bleach or abrasives Do not splash water directly onto the unit. Doing so may cause electric shock, cause the insulation to deteriorate or cause the unit to rust. -
Page 12: Technical Specifications
Clean the pump filter The Pump indicator light Check the pump hose is not kinked or blocked blinks Empty the water in the bucket If you still cannot solve the problem after trying the above, unplug unit and contact Sunpentown Int’l Inc. - Page 13 This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
