Summary of Contents for Sunpentown SD-46

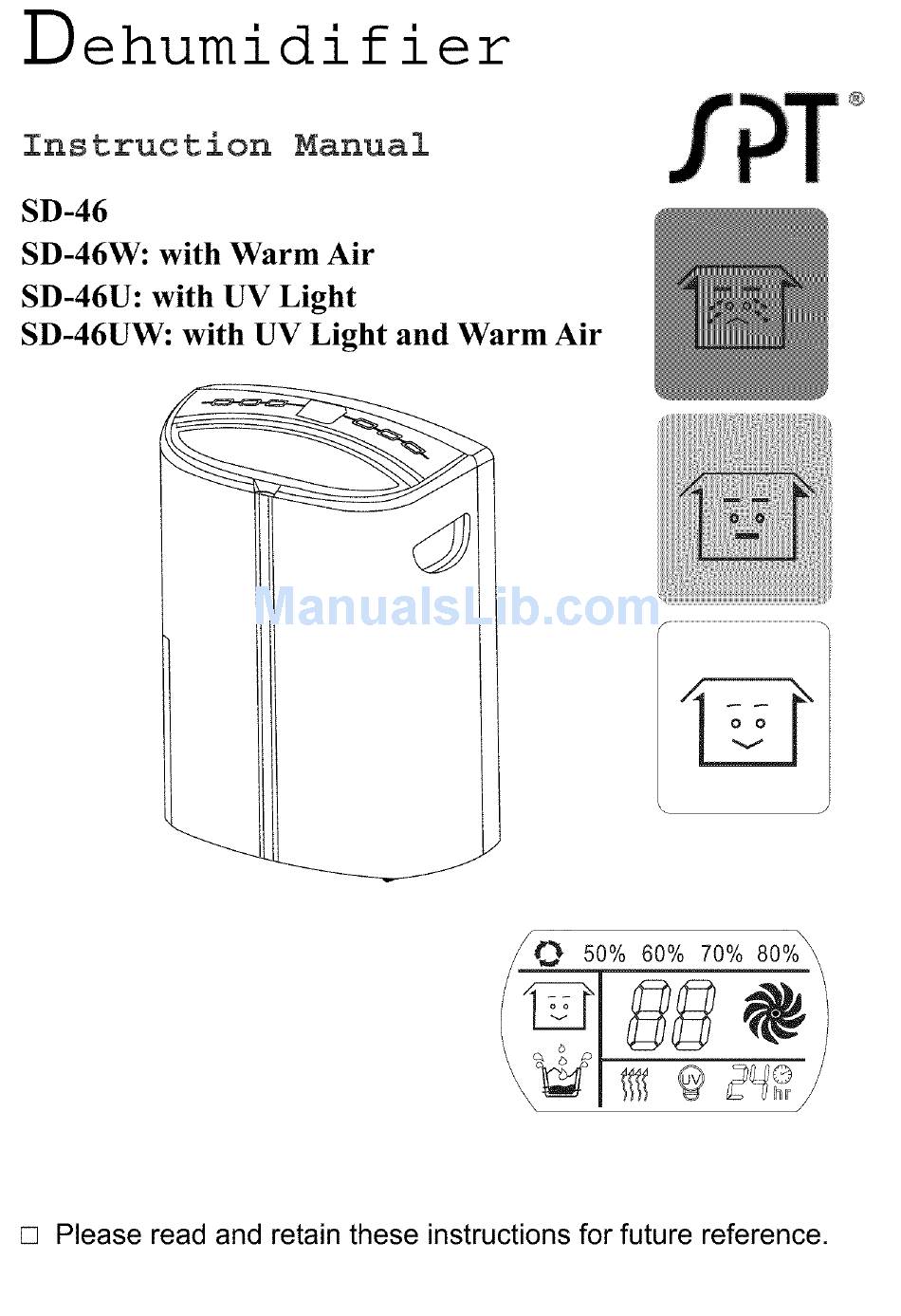

- Page 1 Dehumidifier ® Instruction SD-46 SD-46W: with Warm Air SD-46U: with UV Light SD-46UW: with UV Light and Warm Air ____.,.,.% 50% 60% 70% 80%__ [] Please read and retain these instructions for future reference.
- Page 2 Before use Parts Operation 6, 7 Drainage 8, 9 Maintenance 10, 11 Trouble shooting Warranty Info SD-46 46 Pints/day dehumidifier SD-46W 46 Pints/day dehumidifier with 600W warm air SD-46U 46 Pints/day dehumidifier with UV light SD-46UW 46 Pints/day dehumidifier with 600W warm air and UV...
- Page 3 Power supply 115 V / 60Hz Moisture removal capacity 46 Pints/day 600 W 600 W Heating capacity 440W / 4A Power/Amp consumption Compressor Rotary Refrigerant R134a Working range 41 - 95°F Water tank capacity 12.5 pint Size [WxDxH] 16,14 x 8,27 x 21,46 inch N.W.
- Page 4 DRY WARMER AIR C( NDENSER .EVAPORATER "-- MOIST MOTOR SATURATED r-_. • MICRO: WATER TANK COMPRESSOR WATER TANK L ij,j.llU This product is a dehumidifier, It controls relative humidity by passing the air through the unit. forcing the excess moisture to condensate over the cooling elements, Contact with this cold surface causes the moisture in the air to condense, This condensed...
- Page 5 Caution! • Always keep the unit in vertical position. • Leave the unit to stand for at least an hour after transport or when it has been tilted [e.g. during cleaning], before connecting to the main supply. • Keep all foreign objects away from the air intake or output openings.
- Page 6 Front Control panel Cover for air outlet Air outlet Water full indicator Water tank Handle Rear Air filter / air inlet Power cord Handle Spout for continuous drainage Water tank 1 2. Caster Assembly of the filters Active Filter frar le carbon filter Washable Grille...
- Page 7 Control panel TIMER ® 1. Warm air button (SD-46W and SD-46UW only) 5. Speed [ventilation] button 6. Humidity selection button 2. UV light button (SD-46U and SD-46UW only) 3. Timer 7. ON/OFF button 4. Display window Display window 5o%6o%_7 Humidity display: _ continuous de-humiditying, 50%, 60%, 70%, or 80%.
- Page 8 3. _ Compressor isinprogress, Whenunitisde-frosting, thewaterdropswill flash. Compressor isnotin progress. °_-- Water tank is full. WARM AIR indicator: indicates that the Warm Air function is in operation, When WARM AIR function is selected, unit will run in high fan speed only. The output air will be slightly warmer than ambient air.
- Page 9 When the watertankbecomes full,thecompressor willstopand: _(Water fullindication] will f lash. Theunitwill b eep.Tostopthebeeping,press theON/OFF b uttonto turnunit off. • The waterfullindicator w ill t urnfrombluelightto redlight. Note: d uringoperation, t hewaterfullindicator d isplays a bluelight; t hisisnormal andpartofthe design of thisunit. W hen watertankbecomes full,thelightturns redasa warning signal.
- Page 10 Continuous drainage When the dehumidifier is operated in very high humidity climates, the water tank will require more frequent drainage. In this situation, it may be more convenient to set up the unit for continuous drainage by following these procedures: 1, Turn unit OFF and unplug power source.
-
Page 11: Cleaning The Body
Always unplug unit from main power supply before cleaning or maintaining unit. CLEANING THE BODY Use soft cloth to wipe the unit clean. Do not ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions, These all could possibly hurt the cabinet. - Page 12 STORAGE If unit will not be used for an extended period of time, please: • Turn unit off, unplug from power source and secure power cord, • Empty water tank and allow to dry completely, • Cover the unit and store in cool area, away from direct sunlight,...
- Page 13 THE UNIT DOES NOT OPERATE: • Is the unit plugged • Is the house electricity • Is the room temperature below 41 °F [5°C] or above 95°F (35°C]? If so, then it is out of the working temperature range of the unit. •...
- Page 14 The warranty after repair will not be extended beyond the original one-year period. • All replacement parts will be new or reconditioned. • Parts, which are replaced, become the property of Sunpentown. • The warranty applies for the use of the product in the USA only. What is NOT COVERED: •...
