Channel System - Yamaha RX-V775 Owner's Manual

1 2 3 4 5 6 7 8 9 10

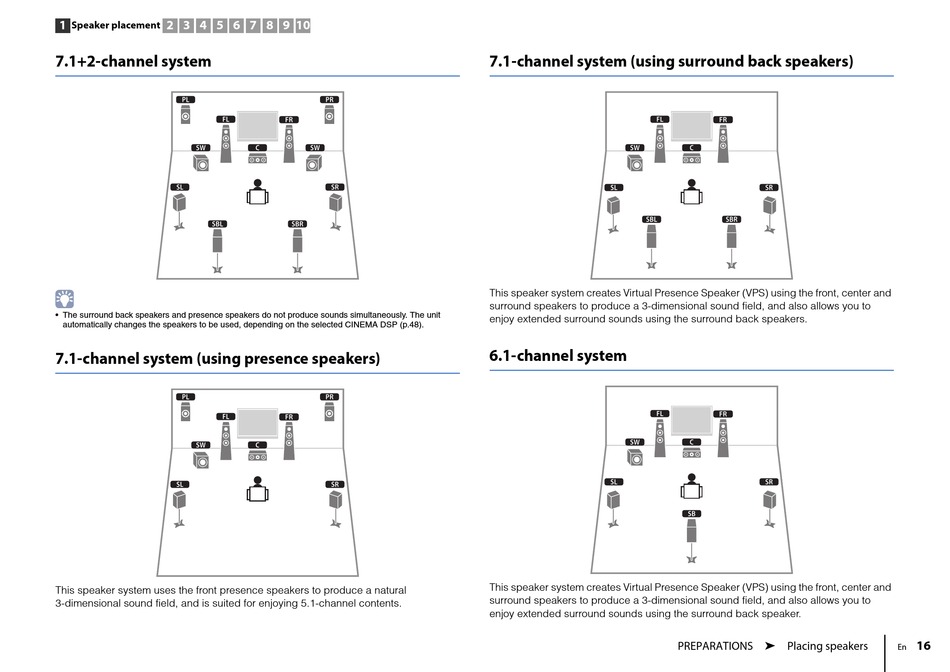

Speaker placement

7.1+2-channel system

Q
1
9
4
6
• The surround back speakers and presence speakers do not produce sounds simultaneously. The unit
automatically changes the speakers to be used, depending on the selected CINEMA DSP (p.48).
7.1-channel system (using presence speakers)
Q
1
9
4
This speaker system uses the front presence speakers to produce a natural
3-dimensional sound field, and is suited for enjoying 5.1-channel contents.
W
2
3 9
5
7
W
2
3
5
7.1-channel system (using surround back speakers)
1
9
4
6
This speaker system creates Virtual Presence Speaker (VPS) using the front, center and
surround speakers to produce a 3-dimensional sound field, and also allows you to
enjoy extended surround sounds using the surround back speakers.
6.1-channel system
1
9
4
This speaker system creates Virtual Presence Speaker (VPS) using the front, center and
surround speakers to produce a 3-dimensional sound field, and also allows you to
enjoy extended surround sounds using the surround back speaker.
2
3
5
7
2
3
5
8
PREPARATIONS ➤ Placing speakers
16
En
