RocketFish RF-G1171 Quick Setup Manual

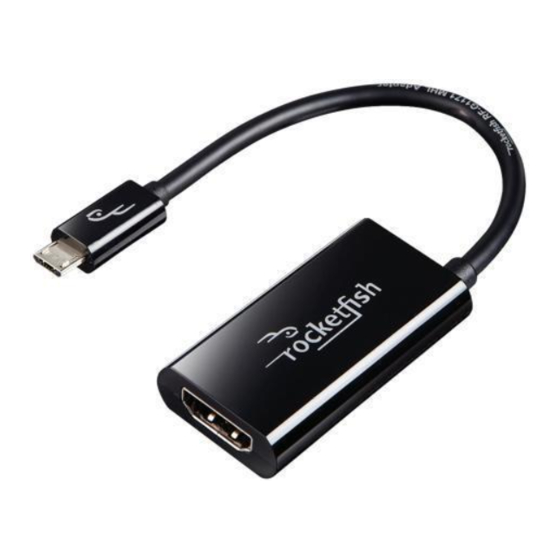

MHL HDTV Adapter
RF-G1171
QUICK SETUP GUIDE
Thank you for purchasing this high quality
Rocketfish MHL HDTV adapter. This HDTV
adapter makes it easy to send HD video and
digital audio from an MHL-enabled mobile
device, such as a smart phone or tablet, to a
HDTV.
Features
• Supports 1080p HD video and 7.1/5.1
digital audio surround sound playback
• Connects from the micro-USB port on
your MHL™-enabled phone or tablet to an
HDMI® input on a TV, projector or monitor
(Requires an HDMI® cable, not included)
• Control your smart phone content with
your TV remote
• Simultaneously charge your phone while
you are using it to send audio and video
to your HDTV.
Power outlet
Using your MHL adapter
1 Connect a micro USB wall charger (not
included) to the micro USB jack on the
MHL adapter.
Note: We recommend using the micro
USB charger that came with your phone
or other device.
2 Connect one end of your HDMI cable to
the adapter and the other to an
available HDMI input jack on your TV.
micro USB wall charger
HDMI cable
MHL-enabled device
OR
MHL HDTV
Adapter
