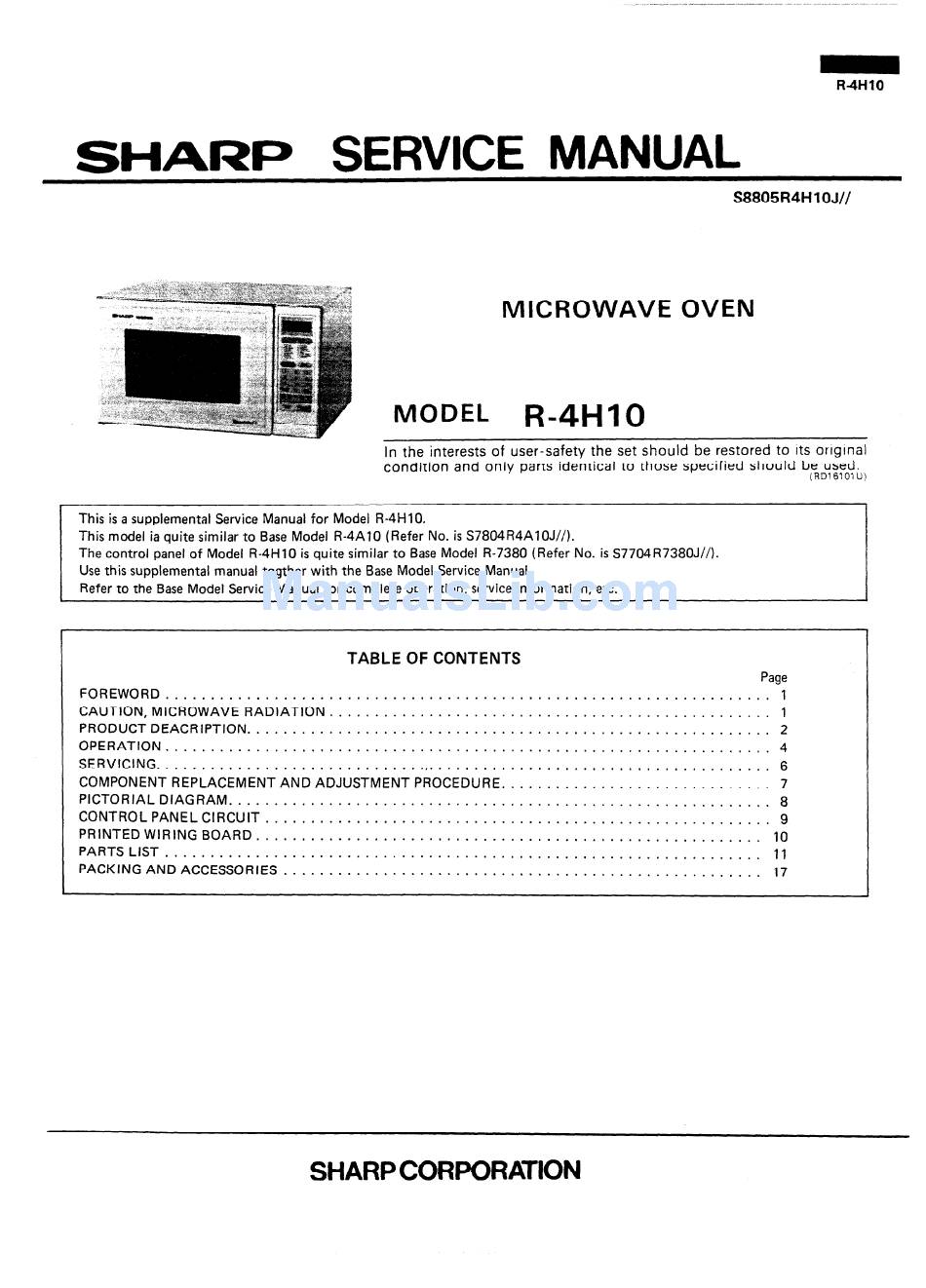

SHARP
SERVICE MANUAL
S8805R4HlOJ//
MICROWAVE
OVEN
MODEL R-4H10
In the interests
of user-safety
the set should
be restored
to its orIgInal
condition
and only
parts
identical
to those
specified
should
be used.
(RDl6101U)
This is a supplemental
Service Manual for Model R-4HlO.
This model ia quite similar to Base Model R-4AlO
(Refer No. is S7804R4AlOJ//).
The control
panel of Model R-4HlO is quite similar to Base Model R-7380 (Refer No. is S7704R7380J//).
Use this supplemental
manual togther with the Base Model Service Manual.
Refer to the Base Model Service Manual for comolete
ooeration.
service information,
etc.
TABLE OF CONTENTS
Page
FOREWORD
...................................................................
1
CAUTION,
MICROWAVE
RADIATION.
................................................
1
PRODUCTDEACRIPTION
..........................................................
2
OPERATION
...................................................................
4
SERVICING .....................................................................
6
COMPONENT
REPLACEMENT
AND ADJUSTMENT
PROCEDURE.
.............................
7
PICTORIAL
DIAGRAM.
...........................................................
8
CONTROLPANELCIRCUIT
........................................................
9
PRINTEDWIRINGBOARD
........................................................
10
PARTSLIST
..................................................................
11
PACKINGANDACCESSORIES
.....................................................
17
SHARPCORPORATION
