Summary of Contents for NetComm NP200AV

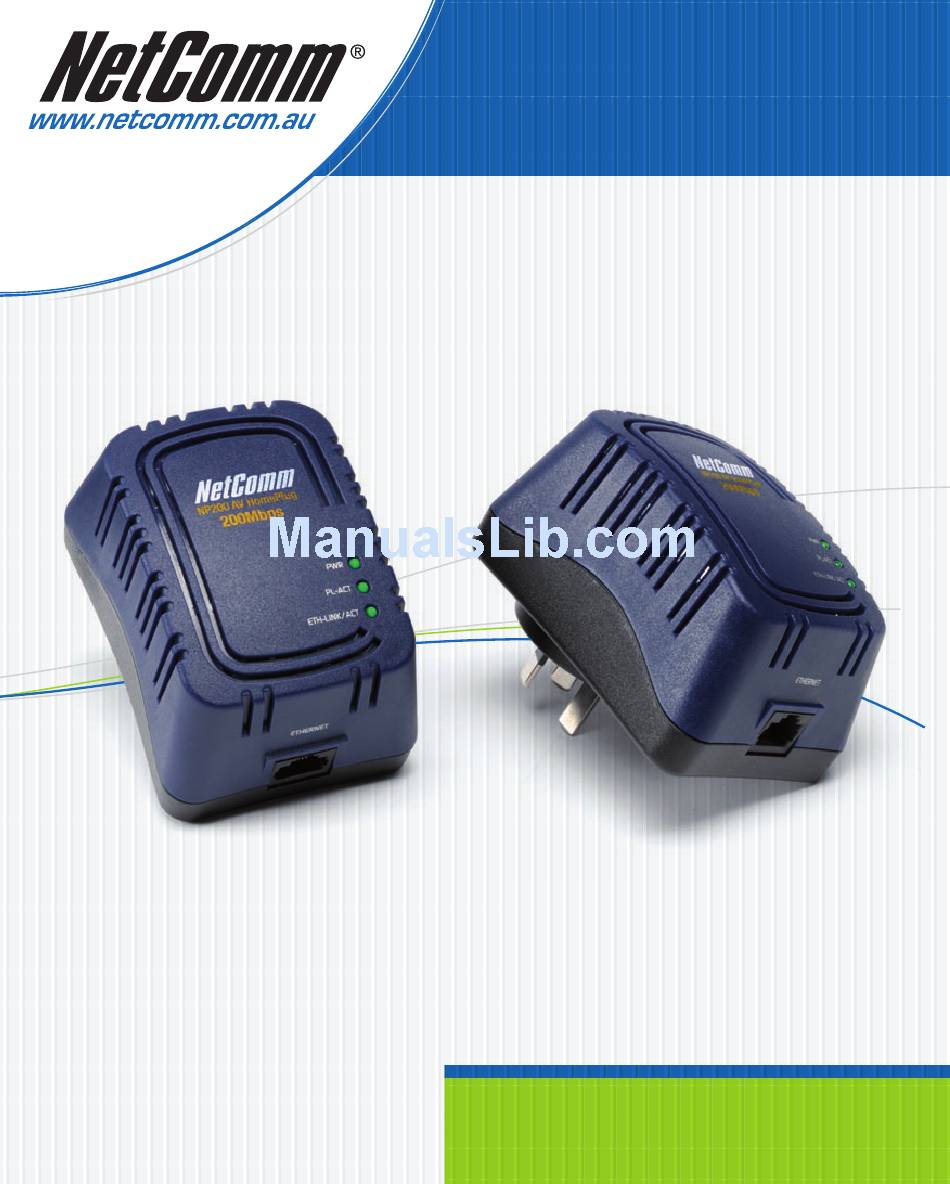

- Page 1 Quick Start Guide NP200AV 200Mbps AV HomePlug...
-
Page 2: Table Of Contents
1.1 Package Contents ..........................3 1.2 Requirements .............................3 1.2.1 Software ..........................3 1.2.2 Hardware ..........................3 2. Getting to know your NP200AV .........................4 3. Connecting your NP200AV ........................5 3.1 Connecting NP200AV with your Computer ...................5 3.2 Setting the TCP/IP Properties ......................5 3.3 Setting the Internet Properties ......................5 4. -
Page 3: About Np200Av
AboUt NP200AV The NP200AV 200Mbps AV HomePlug is a device that utilizes the existing electrical wiring in the house as a path to create a secured network of computers and Ethernet devices. The AV HomePlug is ready to use out of the box and it does not require a device driver to work. -
Page 4: Getting To Know Your Np200Av
SeCtIoN 2 GettING to kNow yoUR NP200AV NP200AV has three LED indicators and an Ethernet port. PL-ACt LeD etH-LINk/ACt LeD ethernet Port Label Action Description No power is supplied to the device Steady light Connected to an AC power supply... -
Page 5: Connecting Your Np200Av
CoNNeCtING yoUR NP200AV The NP200AV does not require a device driver and is a plug-n-play device that can be used after connecting the network cables and plugging it into an electric outlet. However, you may need to check the TCP/IP and Internet properties to make sure there are no conflicts with the way devices in the network are identified. -
Page 6: Using The Av Homeplug Utility Software
.NET Framework 1.1 Setup Reminders: • Keep copies of your NP200AV Device IDs. This is printed at the back of the device. You will need them for network configuration in the AV HomePlug Utility software. • In case you cannot connect into the network or Internet, you may have to power cycle the device. To power cycle, turn the device off and then on again. -
Page 7: Accessing The Av Homeplug Utility Software
.NET Framework 1.1 Setup Reminders: • Keep copies of your NP200AV Device IDs. This is printed at the back of the device. You will need them for network configuration in the AV HomePlug Utility software. • In case you cannot connect into the network or Internet, you may have to power cycle the device. To power cycle, turn the device off and then on again. -
Page 8: Av Homeplug Utility Tabs
The Home tab provides a list of all the possible tasks you can perform in this Utility. To start a task, you need to specify which network card is connected to your HomePlug AV device. This is helpful when you have more than one network card in your computer. NP200AV 200Mbps AV HomePlug Quick Start Guide YML862 Rev1 www.netcomm.com.au... -
Page 9: Private Network Name Tab
Private Network Name. A HomePlug AV device that uses a unique Private Network Name will not be able to communicate with other HomePlug AV devices. YML862 Rev1 NP200AV 200Mbps AV HomePlug Quick Start Guide NP200AV 200Mbps AV HomePlug Quick Start Guide www.netcomm.com.au... -
Page 10: Local Private Network Name
Enter the Device Password of the remote device. The Device Password is printed on underside of the device, note that this is case sensitive. Click Apply. The remote HomePlug AV device will restart and save the new Private Network Name. NP200AV 200Mbps AV HomePlug Quick Start Guide YML862 Rev1 www.netcomm.com.au... -
Page 11: Quality Of Service Tab
QoS is not enabled by default. To enable QoS: Open the HomePlug AV Utility. Click on the Quality of Service tab. Select Enable QoS. Select a QoS mode. Click Apply. YML862 Rev1 NP200AV 200Mbps AV HomePlug Quick Start Guide NP200AV 200Mbps AV HomePlug Quick Start Guide www.netcomm.com.au... -
Page 12: Devices Tab
Refers to the MAC Address of the Ethernet network adapter connected to the HomePlug AV. PHY Rate includes the Transmitted and Received bit rates on the physical layer of the device . NP200AV 200Mbps AV HomePlug Quick Start Guide YML862 Rev1 www.netcomm.com.au... -
Page 13: Firmware Upgrade Tab
Click Browse to select the firmware location. Firmware upgrades can be downloaded from the product Web site. It has an NVM file extension. Click Upgrade. YML862 Rev1 NP200AV 200Mbps AV HomePlug Quick Start Guide NP200AV 200Mbps AV HomePlug Quick Start Guide www.netcomm.com.au... -
Page 14: Appendix - Legal And Regulatory Information
The power supply that is provided with this unit is only intended for use with this product. Do not use this power supply with any other product or do not use any other power supply that is not approved for use with this product by NetComm. Failure to do so may cause damage to this product, fire or result in personal injury. -
Page 15: Product Warranty
The cost of transporting product to and from NetComm’s nominated premises is your responsibility; and, NetComm does not have any liability or responsibility under this warranty where any cost, loss, injury or damage of any kind, whether direct, indirect, consequential, incidental or otherwise arises out of events beyond NetComm’s reasonable control. This includes but is not limited to: acts of God, war, riot, embargoes, acts of civil or military authorities, fire, floods, electricity outages, lightning, power surges, or shortages of materials or labour. -
Page 16: Contact Information
Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please contact a Network Specialist. NetComm Limited...
