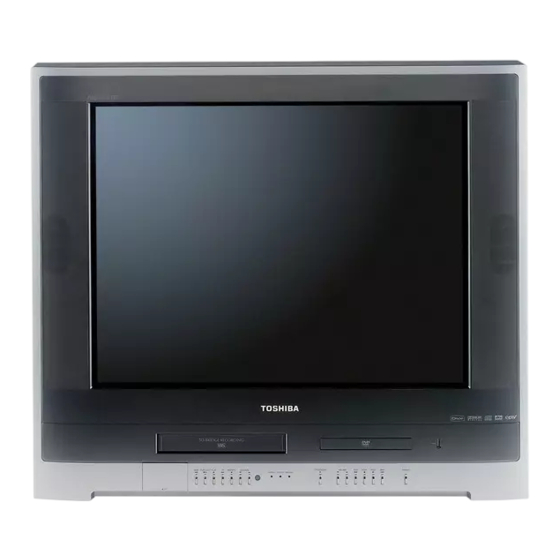

Color television/ video cassette recorder/ dvd video player
Hide thumbs Also See for MW27H62:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Service Manual Supplement
SERVICE MANUAL
COLOR TELEVISION/
VIDEO CASSETTE RECORDER/
DVD VIDEO PLAYER
The above model is classified as a green product (*1), as indicated by the underlined serial number.
This Service Manual describes replacement parts for the green product. When repairing this green
product, use the part(s) described in this manual and lead-free solder (*2).
For (*1) and (*2), see the next page.
MW27H62
DOCUMENT CREATED IN JAPAN, April, 2006 GREEN
FILE NO. 810-200657GR
REV.01

Advertisement

Table of Contents
loading

Related Manuals for Toshiba MW27H62

Summary of Contents for Toshiba MW27H62

  • Page 1 COLOR TELEVISION/ VIDEO CASSETTE RECORDER/ DVD VIDEO PLAYER MW27H62 The above model is classified as a green product (*1), as indicated by the underlined serial number. This Service Manual describes replacement parts for the green product. When repairing this green product, use the part(s) described in this manual and lead-free solder (*2).

  • Page 2: Green Product Procurement

    Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any marketing of new products containing the restricted substances. Increasing attention is given to issues related to the global environmental. Toshiba Corporation recognizes environmental protection as a key management tasks, and is doing its utmost to enhance and improve the quality and scope of its environmental activities.

  • Page 3: Caution

    CAUTION THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS SERVICE MANUAL CARE- FULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

  • Page 4: Servicing Notices On Checking

    SERVICING NOTICES ON CHECKING 1. KEEP THE NOTICES 6. AVOID AN X-RAY As for the places which need special attentions, Safety is secured against an X-ray by consider- they are indicated with the labels or seals on the ing about the cathode-ray tube and the high cabinet, chassis and parts.

  • Page 5: Important Safeguards

    IMPORTANT SAFEGUARDS READ INSTRUCTIONS All the safety and operating instructions should be read before the unit is operated. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. HEED WARNINGS All warnings on the unit and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS All operating and use instructions should be followed.
  • Page 6 IMPORTANT SAFEGUARDS (CONTINUED) OUTDOOR ANTENNA GROUNDING If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
  • Page 7 IMPORTANT SAFEGUARDS (CONTINUED) EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ELECTRIC SERVICE EQUIPMENT GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING NEC-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM (NEC ART 250, PART H) S2898A...

  • Page 8: When Replacing Dvd Deck

    WHEN REPLACING DVD DECK [ When removing the DVD Deck ] Before removing Pick Up PCB and DVD PCB connector, the short circuit the position shown in Fig. 1 using a soldering iron. If you remove the DVD Deck with no soldering, the Laser may be damaged. [ When installing the DVD Deck ] Remove all the soldering on the short circuit position after the connection of Pick Up PCB and DVD PCB connector.

  • Page 9: Tape Removal Method At No Power Supply

    TAPE REMOVAL METHOD AT NO POWER SUPPLY Remove the TV/DVD/VCR block from the main unit as shown in Fig. 1 below can be seen. (Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.) Remove the screw 1 of the Deck Chassis and remove the Loading Motor. Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.

  • Page 10: Parental Control Rating Level

    PARENTAL CONTROL - RATING LEVEL 4 DIGIT PASSWORD CANCELLATION If the stored 4 digit password in the Rating Level menu needs to be cancelled, please follow the steps below. Turn Unit ON. Set the DVD Mode. Confirm that the 'No Disc' will be appeared on the screen. Press and hold the '7' key on the remote control unit.

  • Page 11: Table Of Contents

    TABLE OF CONTENTS GREEN PRODUCT PROCUREMENT ..................A1-1 LEAD-FREE SOLDER ......................A1-1 CAUTION ..........................A1-2 SERVICING NOTICES ON CHECKING .................. A1-3 HOW TO ORDER PARTS ....................... A1-3 IMPORTANT SAFEGUARDS ....................A1-4~A1-6 WHEN PERLACING DVD DECK .................... A1-7 TAPE REMOVAL METHOD AT NO POWER SUPPLY ............A1-8 DISC REMOVAL METHOD AT NO POWER SUPPLY ............

  • Page 12: General Specifications

    GENERAL SPECIFICATIONS CRT Size / Visual Size 27 inch / 676.6mmV System CRT Type Flat Magnetic Field BV/BH +0.45G / 0.18G Color System NTSC Speaker 2 Speaker Position Front Size 1.8 x 3.9 Inch Impedance 8 ohm Sound Output 2.5W + 2.5W 10%(Typical) System VHS Player / Recorder...
  • Page 13 GENERAL SPECIFICATIONS Signal Video Signal Input Level 1 V p-p/75 ohm Output Level S/N Ratio (Weighted) at DVD Mode S/N Ratio (Weighted) at VCR Mode Horizontal Resolution at DVD Mode Horizontal Resolution at VCR(SP)Mode RGB Signal Output Level Audio Signal Input Level -8.0dBm/50k ohm Output Level(0dB=0.775Vrms)
  • Page 14 GENERAL SPECIFICATIONS G-12 Remote Unit RC-KH Control Glow in Dark Remocon Unit Remocon Format TOSHIBA Format TOSHIBA Custom Code 40-BFh, 44-BBh, 45-BAh Power Source Voltage(D.C) UM size x pcs UM-4 x 2 pcs Total Keys Keys TV/VCR Power Channel- Channel+...
  • Page 15 GENERAL SPECIFICATIONS G-13 Features Auto Head Cleaning (TV/VCR) VIDEO PLUS+(SHOWVIEW,G-CODE) Forward / Reverse Picture Search Index Search SQPB CM Skip(30sec x 6 Times) Zero Return End Call TV Monitor Program Extend Picture Brightness , Contrast , Color, Sharpness Tint Mode (Picture Preference) Color Temperature CableClear Cinema Mode...
  • Page 16 GENERAL SPECIFICATIONS Features Tray Lock (DVD) Auto Stop (Pause, and Resume Stop after 5min.) (Some USB devices may not be usable.) Card Slot Reading (Not secured Data) Video CD Playback SVCD Playback MP3 Playback WMA Playback JPEG Playback DivX Play back DMF Support Digital Out (Dolby Digital)
  • Page 17 Height (cm) 40(ORION SPEC:25) Container Stuffing(40' container) Sets G-19 Material Cabinet Front 94V0 DECABROM Rear 94V0 DECABROM Jack Panel Non-Halogen Demand Eyelet Demand G-20 Environment Environmental standard requirement (by buyer) Green procurement of TOSHIBA Pb-free Phase3(Phase3A) Measures for Whisker A3-6...

  • Page 18: Disassembly Instructions

    DISASSEMBLY INSTRUCTIONS 1. REMOVAL OF MECHANICAL PARTS 1-3: TV/DVD/VCR BLOCK (Refer to Fig. 1-3) Remove the 2 screws 1. AND P.C. BOARDS Disconnect the following connectors: 1-1: BACK CABINET (Refer to Fig. 1-1) (CP351, CP404, CP1704 and CP5902). Remove the 6 screws 1. Remove the TV/DVD/VCR Block in the direction of arrow.
  • Page 19 DISASSEMBLY INSTRUCTIONS 1-5: VCR DECK (Refer to Fig. 1-5) 1-6: VCR PCB (Refer to Fig. 1-6) Remove the 6 screws 1. NOTE Remove the screw 2. Do not remove the cable at the FE Head section. The FE Remove the AV Jack Shield. Head may be damaged if you remove the cable by force.
  • Page 20 DISASSEMBLY INSTRUCTIONS 1-8: DVD PCB/DVD DECK (Refer to Fig. 1-8) 1-9: DEFLECTION PCB (Refer to Fig. 1-9) Remove the 2 screws 1. Short circuit the position shown in Fig. 1-8 using a Remove the 3 screws 2. soldering iron. If you remove the DVD Deck with no Remove the Deflection PCB in the direction of arrow.

  • Page 21: Removal Of Vcr Deck Parts

    DISASSEMBLY INSTRUCTIONS 2. REMOVAL OF VCR DECK PARTS 2-3: LINK UNIT (Refer to Fig. 2-3) Set the Link Unit to the Eject position. 2-1: TOP BRACKET (Refer to Fig. 2-1) Unlock the support 1. Extend the 2 supports 1. Remove the (A) side of the Link Unit first, then remove Slide the 2 supports 2 and remove the Top Bracket.
  • Page 22 DISASSEMBLY INSTRUCTIONS 2-5: LOADING MOTOR/WORM (Refer to Fig. 2-5-A) 2-6: TENSION ASS’Y (Refer to Fig. 2-6-B) Remove the screw 1. Turn the Pinch Roller Cam clockwise so that the Tension Remove the Loading Motor. Holder hook is set to the position of Fig. 2-6-A to move Remove the Worm.
  • Page 23 DISASSEMBLY INSTRUCTIONS NOTE [OK] Tension Connect Take care not to damage the gears of the S Reel and T Reel. Tension Band The Polyslider Washer may on the back of the reel. Take care not to damage the shaft. [NG] Tension Connect Tension Band Do not touch section “A”...
  • Page 24 DISASSEMBLY INSTRUCTIONS 2-9: CASSETTE OPENER/PINCH ROLLER BLOCK/P5 ARM ASS’Y (Refer to Fig. 2-9-A) Unlock the support 1 and remove the Cassette Opener. Remove the Pinch Roller Block and P5 Arm Ass’y. Cassette Opener Spring Position Fig. 2-10-B Pinch Roller Block 2-11: FE HEAD (RECORDER ONLY) (Refer to Fig.
  • Page 25 DISASSEMBLY INSTRUCTIONS 2-13: CAPSTAN DD UNIT (Refer to Fig. 2-13) NOTE 1. In case of the Pinch Roller Cam and Main Cam installa- Remove the Capstan Belt. Remove the screw 1. tion, install them as shown in the circled section of Fig. 2- 14-B so that the markers meet.
  • Page 26 DISASSEMBLY INSTRUCTIONS NOTE 2-17: CASSETTE GUIDE POST/INCLINED BASE S/T UNIT/P4 CAP/LED REFLECTOR 1. When you install the Loading Arm S Unit, Loading Arm T (Refer to Fig. 2-17-A) Unit and Main Loading Gear, align each marker. (Refer to Fig. 2-15-B) Remove the P4 Cap.

  • Page 27: Removal Of Dvd Deck Parts

    DISASSEMBLY INSTRUCTIONS 3. REMOVAL OF DVD DECK PARTS NOTE 1. Do not disassemble the DVD DECK PARTS except listed parts here. Minute adjustments are needed if the Main Frame Ass'y disassemble is done. If the repair is needed except listed parts, replace the DVD MECHA ASS'Y.
  • Page 28 DISASSEMBLY INSTRUCTIONS 3-3: LOADING MOTOR PCB ASS'Y/ LOADING BELT (Refer to Fig. 3-3-A) Pulley Gear Rack Loading Remove the Loading Belt. Remove the screw 1. Main Gear Remove the 2 screws 2. Remove the Loading Motor PCB Ass'y. Main Frame Ass’y Remove the Pulley Gear.
  • Page 29 DISASSEMBLY INSTRUCTIONS 3-6: TRAVERSE HOLDER/INSULATOR (F)/INSULATOR NOTE (R) (Refer to Fig. 3-6-A) When pushing the Rack Feed in the direction of the Remove the Traverse Holder. arrow, it should be restored to the original position by the Remove the 2 Insulator (F). spring force.
  • Page 30 DISASSEMBLY INSTRUCTIONS 3-8: FFC WIRE HANDLING When installing the FFC, fold it correctly and install it as shown from Fig. 3-8-A to Fig. 3-8-C. NOTE Do not make the folding lines except the specified positions for the FFC. [ 24 pin FFC ] Pick Up Side 54 ±...

  • Page 31: Removal Of Anode Cap

    DISASSEMBLY INSTRUCTIONS 4. REMOVAL OF ANODE CAP 3. After one side is removed, pull in the opposite direction to remove the other. Read the following NOTED items before starting work. NOTE After turning the power off there might still be a potential Take care not to damage the Rubber Cap.

  • Page 32: Removal And Installation Of Flat Package Ic

    DISASSEMBLY INSTRUCTIONS 5. REMOVAL AND INSTALLATION OF FLAT 3. When IC starts moving back and forth easily after desoldering completely, pickup the corner of the IC using PACKAGE IC a tweezers and remove the IC by moving with the IC REMOVAL desoldering machine.
  • Page 33 DISASSEMBLY INSTRUCTIONS INSTALLATION 4. When bridge-soldering between terminals and/or the soldering amount are not enough, resolder using a Thin- 1. Take care of the polarity of new IC and then install the tip Soldering Iron. (Refer to Fig. 5-8.) new IC fitting on the printed circuit pattern. Then solder each lead on the diagonal positions of IC temporarily.

  • Page 34: Key To Abbreviations

    KEY TO ABBREVIATIONS Audio/Control H.P.F High Pass Filter Automatic Color Control H.SW Head Switch Audio Erase Hertz Automatic Frequency Control Integrated Circuit Automatic Fine Tuning Intermediate Frequency AFT DET Automatic Fine Tuning Detect Indicator Automatic Gain Control Inverter Amplifier Killer Antenna Left A.PB...
  • Page 35 KEY TO ABBREVIATIONS Serial Strobe Switch SYNC Synchronization SYNC SEP Sync Separator, Separation Transistor TRAC Tracking TRICK PB Trick Playback Test Point UNREG Unregulated Volt Voltage Controlled Oscillator Video Intermediate Frequency Vertical Pulse, Voltage Display V.PB Video Playback Variable Resistor V.REC Video Recording Visual Search Fast Forward...

  • Page 36: Service Mode List

    SERVICE MODE LIST This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit or on the main unit and on the remote control for more than the standard time (second).

  • Page 37: Preventive Checks And Service Intervals

    PREVENTIVE CHECKS AND SERVICE INTERVALS The following standard table depends on environmental conditions and usage. Parts replacing time does not mean the life span for individual parts. Also, long term storage or misuse may cause transformation and aging of rubber parts. The following list means standard hours, so the checking hours depends on the conditions.
  • Page 38 PREVENTIVE CHECKS AND SERVICE INTERVALS CLEANING NOTE 2. TAPE RUNNING SYSTEM After cleaning the heads with isopropyl alcohol, do not When cleaning the tape transport system, use the run a tape until the heads dry completely. If the heads gauze moistened with isopropyl alcohol. are not completely dry and alcohol gets on the tape, 3.

  • Page 39: When Replacing Eeprom (Memory) Ic

    WHEN REPLACING EEPROM (MEMORY) IC CONFIRMATION OF INITIAL DATA If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to TABLE 1. Address C B C C Turn on the POWER, and set to the TV mode.

  • Page 40: Servicing Fixtures And Tools

    SERVICING FIXTURES AND TOOLS Alignment Tape Back tension cassette gauge Torque cassette gauge Taper nut driver (KT-300NR) ST-N5 ST-NF 70909103 70909199 70909228 VTR cleaning kit VTR lubrication kit Grease JG002B Adapter JG002E Dial Torque Gauge (10~90gf•cm) JG002F (60~600gf•cm) JG022 Master Plane JG024A Reel Disk Height JG153 X Value Adjustment JG185 Tentelometer...

  • Page 41: Mechanical Adjustments

    MECHANICAL ADJUSTMENTS 1. CONFIRMATION AND ADJUSTMENT 1-2: CONFIRMATION AND ADJUSTMENT OF TENSION POST POSITION Read the following NOTES before starting work. Set to the PLAY mode. • Place an object which weighs between 450g~500g on the Adjust the adjusting section for the Tension Arm position Cassette Tape to keep it steady when you want to make so that the Tension Arm top is within the standard line of the tape run without the Cassette Holder.
  • Page 42 MECHANICAL ADJUSTMENTS 1-4: CONFIRMATION OF VSR TORQUE NOTE Install the Torque Gauge (JG002F) and Adapter (JG002B) If the torque is out of the range, replace the following parts. on the S Reel. Set to the Picture Search (Rewind) mode. Check item Replacement Part (Refer to Fig.1-4-B) Then, confirm that it indicates 120~180gf•cm.
  • Page 43 MECHANICAL ADJUSTMENTS 2-2: CONFIRMATION AND ADJUSTMENT OF AUDIO/ 2-3: TAPE RUNNING ADJUSTMENT CONTROL HEAD (X VALUE ADJUSTMENT) When the Tape Running Mechanism does not work well, Confirm and adjust the height of the Reel Disk. adjust the following items. (Refer to item 1-1) Confirm and adjust the position of the Tension Post.
  • Page 44 MECHANICAL ADJUSTMENTS 3. MECHANISM ADJUSTMENT PARTS LOCATION GUIDE 1. Tension Connect P4 Post 2. Tension Arm T Brake Spring 3. Guide Roller T Reel 4. Audio/Control Head S Reel 5. X value adjustment driver hole Adjusting section for the Tension Arm position D2-4...

  • Page 45: Electrical Adjustments

    ELECTRICAL ADJUSTMENTS BEFORE MAKING ELECTRICAL FUNCTION NO. FUNCTION NO. FUNCTION ADJUSTMENTS G.BIAS(C) COL CENT OSD H B.BIAS(C) COL. MAX OSD C Read and perform these adjustments when repairing the R.DRV(C) COL. MIN H.POSI circuits or replacing electrical parts or PCB assemblies. G.DRV(C) TINT H.BLK L...
  • Page 46 ELECTRICAL ADJUSTMENTS (TV SECTION) 2-7: HORIZONTAL SIZE Receive the monoscope pattern. 2-2: CONSTANT VOLTAGE Using the remote control, set the brightness and contrast Place the set in AV MODE without signal. to normal position. Using the remote control, set the brightness and contrast to Activate the adjustment mode display of Fig.
  • Page 47 ELECTRICAL ADJUSTMENTS 2-11: TRAPEZIUM 2-16: BRIGHT CENTER Receive the crosshatch signal from the Pattern Generator. Receive the monoscope pattern. (RF Input) Using the remote control, set the brightness and contrast Using the remote control, set the brightness and contrast to normal position. to normal position.
  • Page 48 ELECTRICAL ADJUSTMENTS 2-18: COLOR CENTER 2-19: CONTRAST MAX Receive the color bar pattern. (RF Input) Activate the adjustment mode display of Fig. 1-1 and Using the remote control, set the brightness, contrast, press the channel button (33) on the remote control to color and tint to normal position.
  • Page 49 ELECTRICAL ADJUSTMENTS PURITY AND CONVERGENCE 3-3: STATIC CONVERGENCE ADJUSTMENTS NOTE Adjust after performing adjustments in section 3-2. NOTE Receive the crosshatch pattern from the color bar Turn the unit on and let it warm up for at least 30 generator. minutes before performing the following adjustments.
  • Page 50 ELECTRICAL ADJUSTMENTS 4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION) AC IN DEFLECTION PCB CD052 CP601 TP401 FB401 CP004 VCR DECK CD808 CD001 CP1704 CP604 CP404 CP851A RECGULATOR CP003 CD604 VCR DECK CP1702 CP8001 VR404 CP351 CP001 CP602 CP301 CD301 VR1701 CP4502 CD603...

  • Page 51: Mechanical Exploded Views

    MECHANICAL EXPLODED VIEW 102B 102B 102A 102B PCB110 (CRT MT PCB ASS'Y) PCBD80 (VM COIL PCB ASS'Y) PCBDD0 (USB PCB ASS'Y) 101B 101K 101M 101C 101L 101G 101I 101M 101E 101M 101J 101N 101M 101D 101H 101P 101G 101F 101Q 101J 101O 101A...
  • Page 52 MECHANICAL EXPLODED VIEW 103B 103A PCB130 PCB010 (DVD MT PCB ASS'Y) (VCR MT PCB ASS'Y) PCBF10 (REGULATOR PCB ASS'Y) PCBDH0 (DIGITAL PCB ASS'Y) PCB270 (OPERATION PCB ASS'Y) PCB080 (DEFLECTION PCB ASS'Y) I1-2...
  • Page 53 MECHANICAL EXPLODED VIEW (PACKING DIAGRAM) 157, 158, 159, 160, 161, 162, BL001, TM101 I1-3...

  • Page 54: Chassis Exploded Views

    CHASSIS EXPLODED VIEW (TOP VIEW) CD1501 M2003 UN4001 H5002 H5001 CD1502 M101 NOTE: Applying positions AA for the grease are displayed for this section. CLASS MARK Check if the correct grease is applied for each position. GREASE I2-1...
  • Page 55 CHASSIS EXPLODED VIEW (BOTTOM VIEW) M2001 CD1501 CD1502 NOTE: Applying positions AA for the grease are displayed for this section. CLASS MARK Check if the correct grease is applied for each position. GREASE I2-2...

  • Page 56: Dvd Deck Exploded Views

    DVD DECK EXPLODED VIEW Cannot supply separately. If the repair is needed, replace the LOADER SUB ASS'Y. M2603 PCB610 (LOADING MOTOR PCB ASS'Y) CD2302 CD2301 PCB640 CD2001 (SW PCB ASS'Y) Do not replace the parts. Because, minute adjustments are needed if this condition is disassembled further more.

  • Page 57: Mechanical Replacement Parts List

    MECHANICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description 72783840 7A7010206A FRONT,CABI ASS'Y 101A 72783843 701WPJ1429 CABINET,FRONT 101B 72783847 712WPJ0960 FLAT,FLAP 101C 72799441 712WPJ0921 FLAP DVD 101D 72798522 713WPA0315 GLASS,LED 101E 72798523 713WPA0316 GUIDE,REMOCON 101F 72798569 7235490037 BADGE,BRAND 101G 72798592 735WPA0805...
  • Page 58 MECHANICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description 72781978 8965TS1017 CUSHION 65TS10-10(17.5*20*14) 72783871 706WPA0017 COVER,CONNECTOR 75002837 752WSA0604 SHIELD USB 72799905 761WPA0322 HOLDER,FFC 72783724 761WPA0434 HOLDER,USB-1 72783726 761WPA0435 HOLDER,USB-2 72781304 8965TS0415 CUSHION 65TS4-2(15*50*16) 72783345 800WR00079 SHEET,SILICONE 72795053 791WHAA118 FILM,BAG 72782518 791WHAA139...

  • Page 59: Chassis Replacement Parts List

    CHASSIS REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description 72783890 A5T7016420A DECK ASSY A5T7016420A 72795710 85OA400245 PINCH ROLLER BLOCK VA2 72795711 85OA500026 AHC ASS'Y 72795712 85OP200290 BELT,CAPSTAN (S) 72795713 85OP600581 WORM 72795714 85OP500091 BASE,AC HEAD 72795715 85OP800324 SPRING,AC HEAD 72795716 85OA000528 MAIN CHASSIS ASS'Y...

  • Page 60: Dvd Deck Replacement Parts List

    DVD DECK REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description ! 600 72783201 A2I301H650 DVD MECHA ASS'Y A2I301H650 72795767 92P100109A HOLDER,TRAVERSE 72795768 92P100094A CLAMPER 72795769 92P100088A GEAR,MOTOR 72798813 92AAA0013A FEED RACK ASS'Y 72795771 92P200013A INSULATOR(F) 72795772 92P200014A INSULATOR(R) 72781331 92SBB0029A LOADER SUB ASS'Y...

  • Page 61: Electrical Replacement Parts List

    ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description RESISTORS ! R401 72781722 R4K1T4472F R,METAL 1 4.7K OHM 1/4W ! R403 72781717 R4K1T4183F R,METAL 18K OHM 1/4W ! R405 72783394 R4K1T4153F R,METAL 2 15K OHM 1/4W ! R406 72783829 R3K58A471J R,METAL OXIDE...
  • Page 62 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description DIODES D410 72794488 D2WT011E10 DIODE,SILICON 11E1-EIC D411 72794489 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 ! D412 72794472 D2WTAU02A0 DIODE,SILICON AU02A-EIC D413 72794471 D97U03001B DIODE,ZENER MTZJ30B T-77 D414 72794471 D97U03001B DIODE,ZENER MTZJ30B T-77 ! D415 72794472 D2WTAU02A0...
  • Page 63 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description DIODES D3002 72794489 D97U05R61B DIODE,ZENER MTZJ5.6B T-77 D3003 72783209 D2MXN40020 DIODE,FAST RECOVERY 1N4002-PAN D3004 72795627 D2WXSB1400 DIODE,SCHOTTKY SB140-EIC D3005 72795087 D28TEQS040 DIODE,SCHOTTKY 11EQS04TA1B2 D3006 72794488 D2WT011E10 DIODE,SILICON 11E1-EIC D3007 72794488 D2WT011E10 DIODE,SILICON...
  • Page 64 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description TRANSISTORS Q014 72794567 TNAAC05002 COMPOUND TRANSISTOR KRC103SRTK Q050 72794578 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR) ! Q401 72794561 TCAT03227Y TRANSISTOR,SILICON KTC3227_Y-AT Q402 72794563 TC30041590 TRANSISTOR,SILICON 2SC4159(D,E) ! Q403 72794562 TD50026380 TRANSISTOR,SILICON 2SD2638(OEC) Q404 72794578 TAATA12660...
  • Page 65 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description TRANSISTORS Q4511 72795481 T6RA015300 TRANSISTOR,SILICON 2SA1530A-T1 Q8001 72796427 TNRAB05004 COMPOUND TRANSISTOR RT1N141C-T112-1 ! Q8002 72796092 TAAT01281Y TRANSISTOR,SILICON KTA1281_Y COILS &TRANSFORMERS L001 72794526 02167F220J COIL L002 72796087 02167E100K COIL R6-1 10 UH L003 72794540 02167F101J...
  • Page 66 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description SWITCHES SW2207 72794688 0504101T34 SWITCH,TACT EVQ21505R SW2251 72794688 0504101T34 SWITCH,TACT EVQ21505R SW2252 72794688 0504101T34 SWITCH,TACT EVQ21505R SW2253 72794688 0504101T34 SWITCH,TACT EVQ21505R SW2254 72794688 0504101T34 SWITCH,TACT EVQ21505R SW2255 72794688 0504101T34 SWITCH,TACT EVQ21505R SW2256...
  • Page 67 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description MISCELLANEOUS B4016 72795787 0246C51024 CORE,BEADS MMZ1608R102CT B4017 72795787 0246C51024 CORE,BEADS MMZ1608R102CT B4019 72795787 0246C51024 CORE,BEADS MMZ1608R102CT B4022 72795787 0246C51024 CORE,BEADS MMZ1608R102CT B4201 72794355 024HT03563 CORE,BEADS W4BRH3.5X6X1.0X2 B5901 72796605 024HC36001 CORE,BEADS HCB2012K-600T25 B5902...
  • Page 68 ELECTRICAL REPLACEMENT PARTS LIST Location No. TSB P/N Reference No. Description MISCELLANEOUS ! FB401 72796673 043227017F TRANSFORMER,FLYBACK FSU27A004_M FH1701 72794496 06710T0009 HOLDER,FUSE EYF-52BCY FH1702 72794496 06710T0009 HOLDER,FUSE EYF-52BCY NR2401 72783385 110P4220M6 R,NETWORK 4D02WGJ0220TCE NR2402 72783385 110P4220M6 R,NETWORK 4D02WGJ0220TCE NR2403 72783385 110P4220M6 R,NETWORK 4D02WGJ0220TCE...
  • Page 69 TOSHIBA CORPORATION 1-1, SHIBAURA 1-CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
