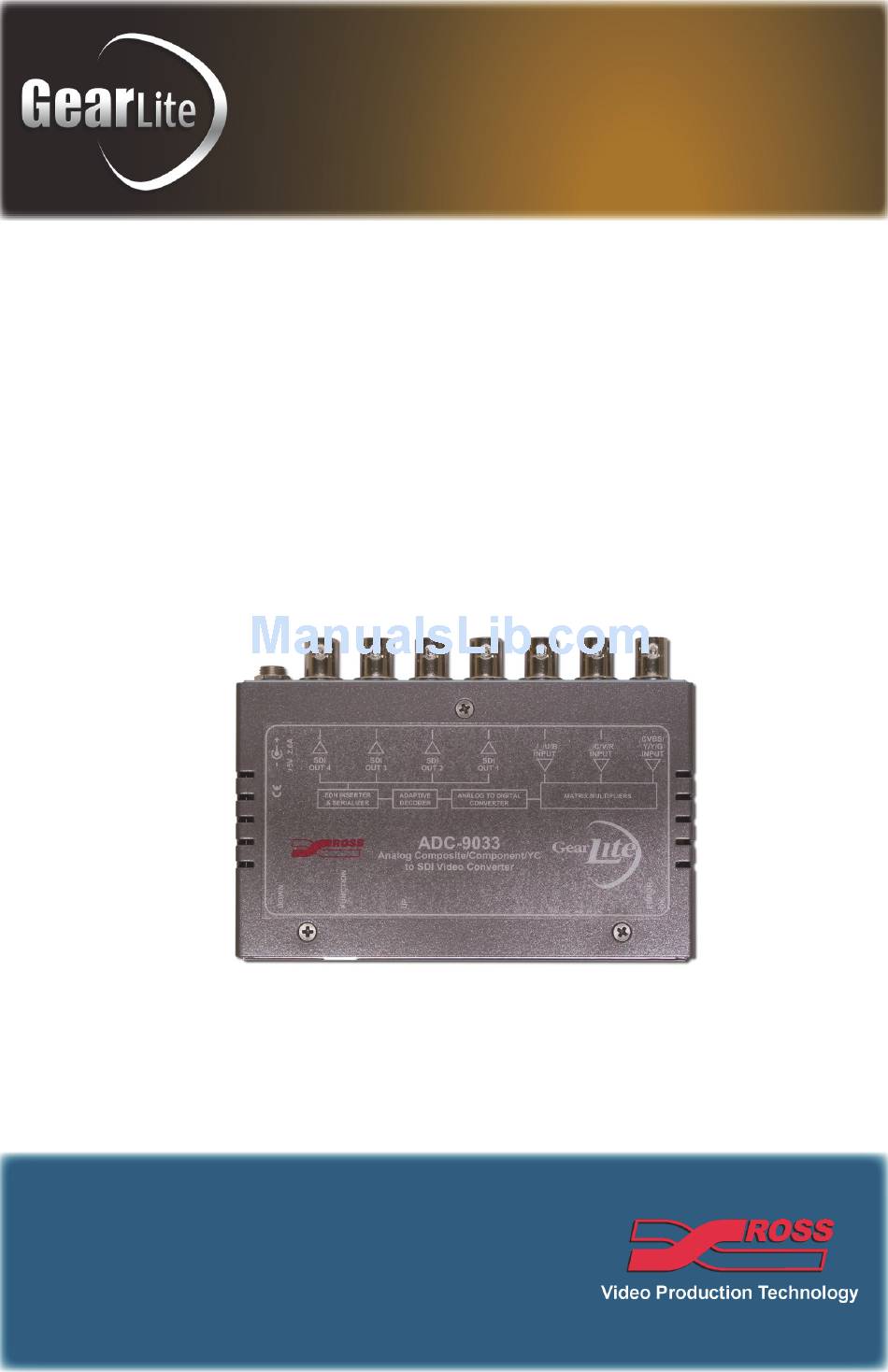

- Page 1 ADC-9033 Analog Composite/Component/YC to SDI Video Converter User Manual...
- Page 2 ADC-9033 User Manual • Ross Part Number: 9033DR-004-04 • Release Date: October 11, 2012. The information contained in this manual is subject to change without notice or obligation. Copyright © 2012 Ross Video Limited. All rights reserved. This work is proprietary and confidential to Ross Video Limited, its subsidiaries...
-
Page 3: Symbol Meanings
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning – Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. The safe operation of this product requires that a protective earth connection be provided. A grounding conductor in the equipment's supply cord provides this protective earth. To reduce the risk of electrical shock to the operator and service personnel, this ground conductor must be connected to an earthed ground. -
Page 5: Emc Notices
EMC Notices United States of America FCC Part 15 This equipment has been tested and found to comply with the limits for a class A Digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 6: Environmental Information
“Contact Us” section on the last page of this manual. All GearLite products are covered by a generous 3-year warranty and will be repaired without charge for materials or labor within this period. See the “Warranty and Repair Policy” section in this manual for details. Environmental Information The equipment that you purchased required the extraction and use of natural resources for its production. -
Page 7: Simplified Block Diagram
Supporting NTSC, PAL-B, PAL-M, PAL-N (combinational) analog composite video standards, and RGB and YPRPB analog component inputs, the ADC-9033 is the ideal analog to SDI converter for virtually all video conversion requirements. All analog RGB, YPRPB, and YC video formats are supported, with the converter powering up in the previously selected standard, format and level. - Page 8 Features The ADC-9033 includes the following features: • Composite or Component analog video signal inputs supported: › NTSC, PAL-B, PAL-M, PAL-N › YPRPB input from Betacam, MII and SMPTE/EBU formats › RGB input from SMPTE/EBU and NTSC-related formats • 1 line + processing delay (refer to specifications) •...
-
Page 9: Static Discharge
If any items are missing or damaged, contact your sales representative or Ross Video directly. Mounting and Installation The ADC-9033 can be mounted in any convenient location. However, to ensure long life for this product, observe the following precautions and operating requirements: •... -
Page 10: Optional Mounting Accessories
removed for adjustments. Carefully consider the installation location before proceeding; the adhesive is very aggressive and is not easily removed. The adhesive will cure fully in 24 hours. To install the Surface Mount Strips Remove the Protective Backing Film from the adhesive on the bottom of the two VELCRO®... - Page 11 Flat Metal Plate Use the flat metal plate for permanent mounting to a rack, a desk, or any other location where bolts or screws can be applied. Be sure to position the module to allow for operator adjustments, if required. To install the Flat Metal Plate Remove the 2 screws from the bottom of the chassis.
- Page 12 Figure 4 Angle Mounting Bracket 11 • Installation (Iss. 04)
- Page 13 Personnel” at the front of this manual for details. Cable Connections Overview Connect the cables to the ADC-9033 according to the designations indicated on the chassis label and Figure 5. The input is internally terminated at 75ohm. It is not necessary to terminate unused outputs.
-
Page 14: Status And Selection Leds
Status and Selection LEDs The front edge of the ADC-9033 has four LED indicators that display the status of the input signals, and indicate menu function and selections. (Figure 6) ERROR LED DOWN LED UP LED OK LED Figure 6 ADC-9033 Front Edge Status Indicator LEDs Table 1 describes the status LEDs available on the ADC-9033. - Page 15 “valid” signal is defined as any analog composite video signal standard input into the ADC-9033, which matches the setting of the Video Standard that has been selected in the Function Setup and Con- figuration Menu. In other words, if the converter is in its default state for NTSC (525/60) video, then only an NTSC (525/60) composite video signal input will cause the OK LED to be lit.
-
Page 16: General Operating Rules
Configuration Use the Function Select switch and the Down and Up buttons to configure the ADC-9033 to convert analog video signals to SDI. Settings are described in the section “Function Setup and Configuration Menus” on page 16. Refer to Figure 7 for switch and button locations. -
Page 17: Led Display
• Keep the Function Select in Position 0. Press the Down button once. • • The DOWN LED will be unlit and the UP LED will be lit, to indicate PAL (625/50) configuration selection. Function Setup and Configuration Menus A single press of the Down and Up buttons is a “momentary” click of the button unless indicated by “(h)”. - Page 18 Table 2 Function Setup and Configuration Menu Function LED Display Selection Function Up/Down Buttons Mode Switch Menu Selection Menu DOWN Position SMPTE/EBU Betacam – Levels MII or NTSC-Related – Standard Mode On* Standard/ VTR Mode ...
- Page 19 Table 2 Function Setup and Configuration Menu Function LED Display Selection Function Up/Down Buttons Mode Switch Menu Selection Menu DOWN Position > 180° +(h) Hue between 0° and +180° +(h) 0°* Hue between -180° and 0° –(h) ...
-
Page 20: Function Menu Notes
Table 2 Function Setup and Configuration Menu Function LED Display Selection Function Up/Down Buttons Mode Switch Menu Selection Menu DOWN Position VI Ends 1 line before – default VI Ends at default* (Line 20 for 525, Line 23 for 625) VI End ... -
Page 21: Video Level
Standard/VTR Mode This menu enables the module to convert either broadcast quality or non-broadcast quality analog input signals independently, selectable according to the level of the video quality to be received. The level of conversion quality required for a non-broadcast VTR signal is different than a broadcast signal. In the default state, Standard mode, a 3-line adaptive filter is employed to assure the highest quality conversion to SDI video output standards. -
Page 22: Default Set
Setup On If the incoming analog composite video has Setup, then this user-controlled setting should be set to On. If there is no Setup on the incoming analog composite video, then this user-controlled setting should be set to Off. This setting controls how the decoder will scale the analog video, and where it will set black in the digital domain. -
Page 23: Status Report
This menu selection is primarily for Ross Video use. If an on-board error has occurred with the ADC-9033, this menu item will provide some indication as to the nature of the problem. In Status Report mode, the DOWN and UP LEDs will flash at the same time and the number of consecutive flashes will indicate the type of error. - Page 24 Table 3 ADC-9033 Menu Access by Video Standard/Format Selection Analog Video Formats and Standards Switch Position and /RGB Menu Item Composite/YC NTSC Standard/VTR Mode Video Level Black Level Offset Chroma Level U Gain Setup On Default Set Force Mono VI Blanking...
-
Page 25: Supported Video Standards
Supported Video Standards Table 4 presents the supported video standards, formats and their levels based on selections made in the Function Menu. Table 4 Supported Video Standards Function Menu Item Video Standard Video Format YPRPB/RGB Levels SMPTE/EBU Betacam MIII Composite NTSC/525 SMPTE/EBU RGB (sync only on... -
Page 26: Specifications
Specifications Specifications are subject to change without notification. Table 5 ADC-9033 — Technical Specifications Category Parameter Specification Number of Input Signals Signal Standards NTSC, PAL-B, PAL-M, PAL-N Accommodated (combinationN) RGB as SMPTE/EBU, MII, or NTSC-related (with 525-line signals, any can have setup) - Page 27 Table 5 ADC-9033 — Technical Specifications Category Parameter Specification SDI Video Outputs Short Circuit Output Protected Luminance Frequency ±0.13dB to 5.5MHz Response Group Delay <5ns to 5.5MHz RMS SNR, Luma Channel >53dB to 5MHz, unweighted RMS SNR, Chroma >53dB to 5MHz, unweighted...
-
Page 28: Service Information
Service Information Warranty and Repair Policy The GearLite ADC-9033 is warranted to be free of any defect with respect to performance, quality, reliability, and workmanship for a period of THREE (3) years from the date of delivery to the customer. In the event that your GearLite... - Page 29 Notes: Service Information (Iss. 04) • 28...
- Page 30 Notes: 29 • Service Information (Iss. 04)
- Page 31 Notes: Service Information (Iss. 04) • 30...
-
Page 32: Technical Support
Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
