ONNECTING TO A OUND ODULE

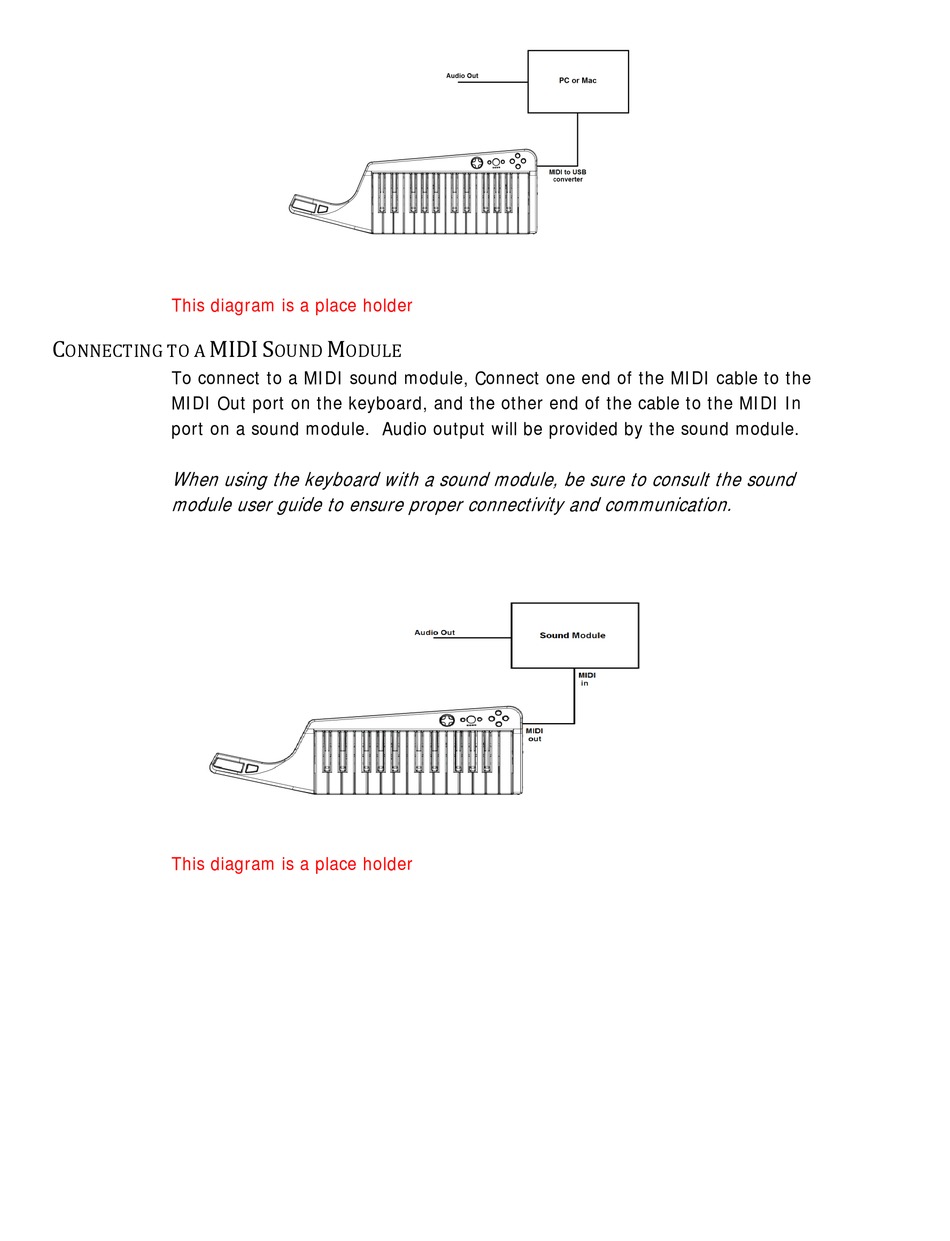

To connect to a MIDI sound module, Connect one end of the MIDI cable to the
MIDI Out port on the keyboard, and the other end of the cable to the MIDI In
port on a sound module. Audio output will be provided by the sound module.
When using the keyboard with a sound module, be sure to consult the sound
module user guide to ensure proper connectivity and communication.
