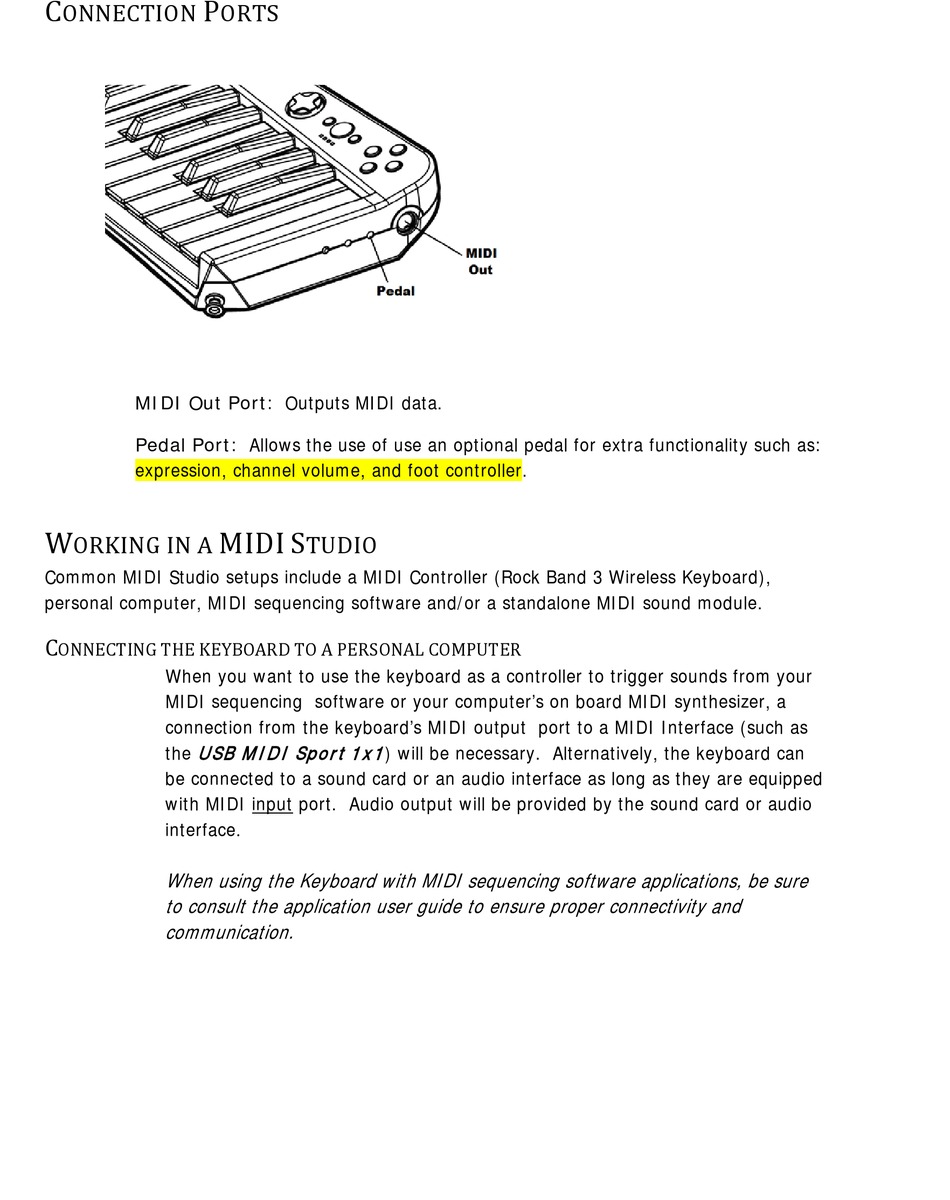

C P
ONNECTION
MIDI Out Port: Outputs MIDI data.
Pedal Port: Allows the use of use an optional pedal for extra functionality such as:
expression, channel volume, and foot controller.
W
ORKING IN A
Common MIDI Studio setups include a MIDI Controller (Rock Band 3 Wireless Keyboard),
C
personal computer, MIDI sequencing software and/or a standalone MIDI sound module.
ONNECTING THE KEYBOARD TO A PERSONAL COMPUTER
When you want to use the keyboard as a controller to trigger sounds from your
MIDI sequencing software or your computer's on board MIDI synthesizer, a
connection from the keyboard's MIDI output port to a MIDI Interface (such as
USB M IDI Sport 1x 1
the
be connected to a sound card or an audio interface as long as they are equipped
with MIDI input port. Audio output will be provided by the sound card or audio
interface.
When using the Keyboard with MIDI sequencing software applications, be sure
to consult the application user guide to ensure proper connectivity and
communication.
ORTS
MIDI S
TUDIO
) will be necessary. Alternatively, the keyboard can
