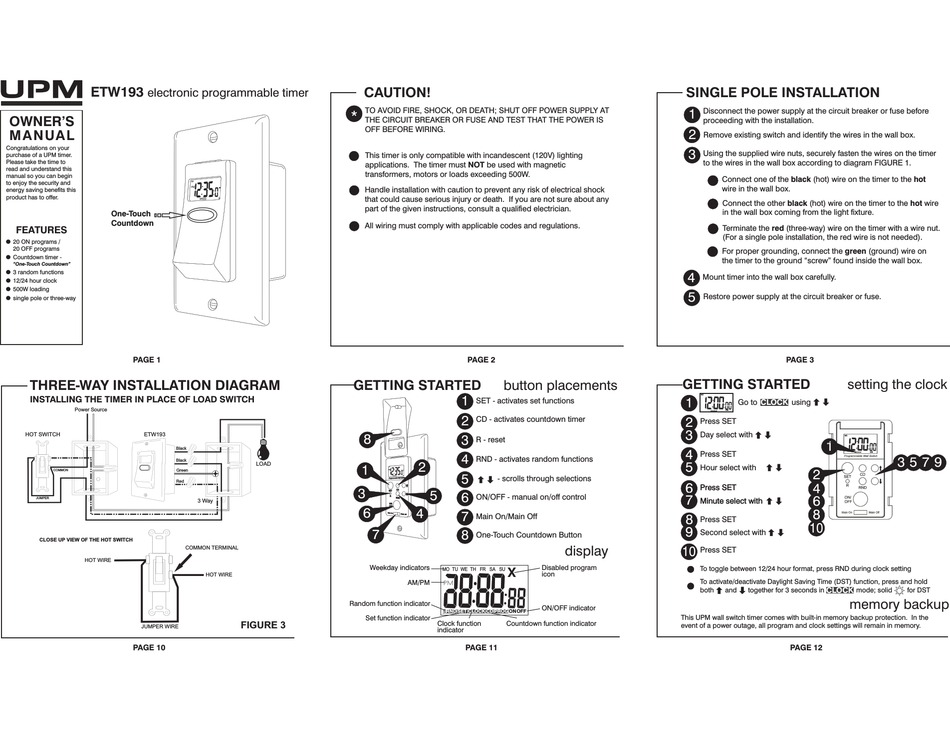

UPM ETW193 Owner's Manual

Electronic programmable timer.
Hide thumbs


Advertisement

ETW193
electronic programmable timer
Congratulations on your
purchase of a UPM timer.
Please take the time to
read and understand this
manual so you can begin
to enjoy the security and
energy saving benefits this
product has to offer.
One-Touch
Countdown
!
20 ON programs /
20 OFF programs
!
Countdown timer -
"One-Touch Countdown"
!
3 random functions
!
12/24 hour clock
!
500W loading
!
single pole or three-way
PAGE 1
THREE-WAY INSTALLATION DIAGRAM
INSTALLING THE TIMER IN PLACE OF LOAD SWITCH
Power Source
HOT SWITCH
ETW193
Black
Black
COMMON
Green
Red
JUMPER
CLOSE UP VIEW OF THE HOT SWITCH
COMMON TERMINAL
HOT WIRE
JUMPER WIRE
PAGE 10
CAUTION!
TO AVOID FIRE, SHOCK, OR DEATH; SHUT OFF POWER SUPPLY AT
*
THE CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS
OFF BEFORE WIRING.
This timer is only compatible with incandescent (120V) lighting
applications. The timer must
transformers, motors or loads exceeding 500W.
Handle installation with caution to prevent any risk of electrical shock
that could cause serious injury or death. If you are not sure about any
part of the given instructions, consult a qualified electrician.
All wiring must comply with applicable codes and regulations.
GETTING STARTED
8
LOAD
1
3
3 Way
6
7
Weekday indicators
HOT WIRE
Random function indicator
Set function indicator
FIGURE 3
NOT
be used with magnetic
PAGE 2
button placements
1
SET - activates set functions
2
CD - activates countdown timer
3
R - reset
4
RND - activates random functions
2
5
- scrolls through selections
5
6
ON/OFF - manual on/off control
4
7
Main On/Main Off
8
One-Touch Countdown Button
display
Disabled program
MO TU WE TH FR SA SU
X
icon
AM/PM
ON/OFF indicator
L -
RND
SET
CLOCK CD
PROGONOFF
Clock function
Countdown function indicator
indicator
PAGE 11
SINGLE POLE INSTALLATION
Disconnect the power supply at the circuit breaker or fuse before
1
proceeding with the installation.
2
Remove existing switch and identify the wires in the wall box.
3
Using the supplied wire nuts, securely fasten the wires on the timer
to the wires in the wall box according to diagram FIGURE 1.
Connect one of the
black
(hot) wire on the timer to the
wire in the wall box.
Connect the other
black
(hot) wire on the timer to the
in the wall box coming from the light fixture.
Terminate the
red
(three-way) wire on the timer with a wire nut.
(For a single pole installation, the red wire is not needed).
For proper grounding, connect the
green
the timer to the ground "screw" found inside the wall box.
4
Mount timer into the wall box carefully.
5
Restore power supply at the circuit breaker or fuse.
PAGE 3
setting the clock
GETTING STARTED
MO
1
Go to
CLOCK
using
CLOCK
ON
2
Press SET
3
Day select with
MO
1
4
Press SET
CLOCK
5
Hour select with
2
6
4
Press SET
Press SET
7
6
Minute select with
Minute select with
8
8
Press SET
10
9
Second select with
10
Press SET
To toggle between 12/24 hour format, press RND during clock setting
To activate/deactivate Daylight Saving Time (DST) function, press and hold
both
and
together for 3 seconds in
CLOCK
mode; solid
memory backup
This UPM wall switch timer comes with built-in memory backup protection. In the
event of a power outage, all program and clock settings will remain in memory.
PAGE 12
hot
hot
wire
(ground) wire on
ON
3 5 7 9
for DST
