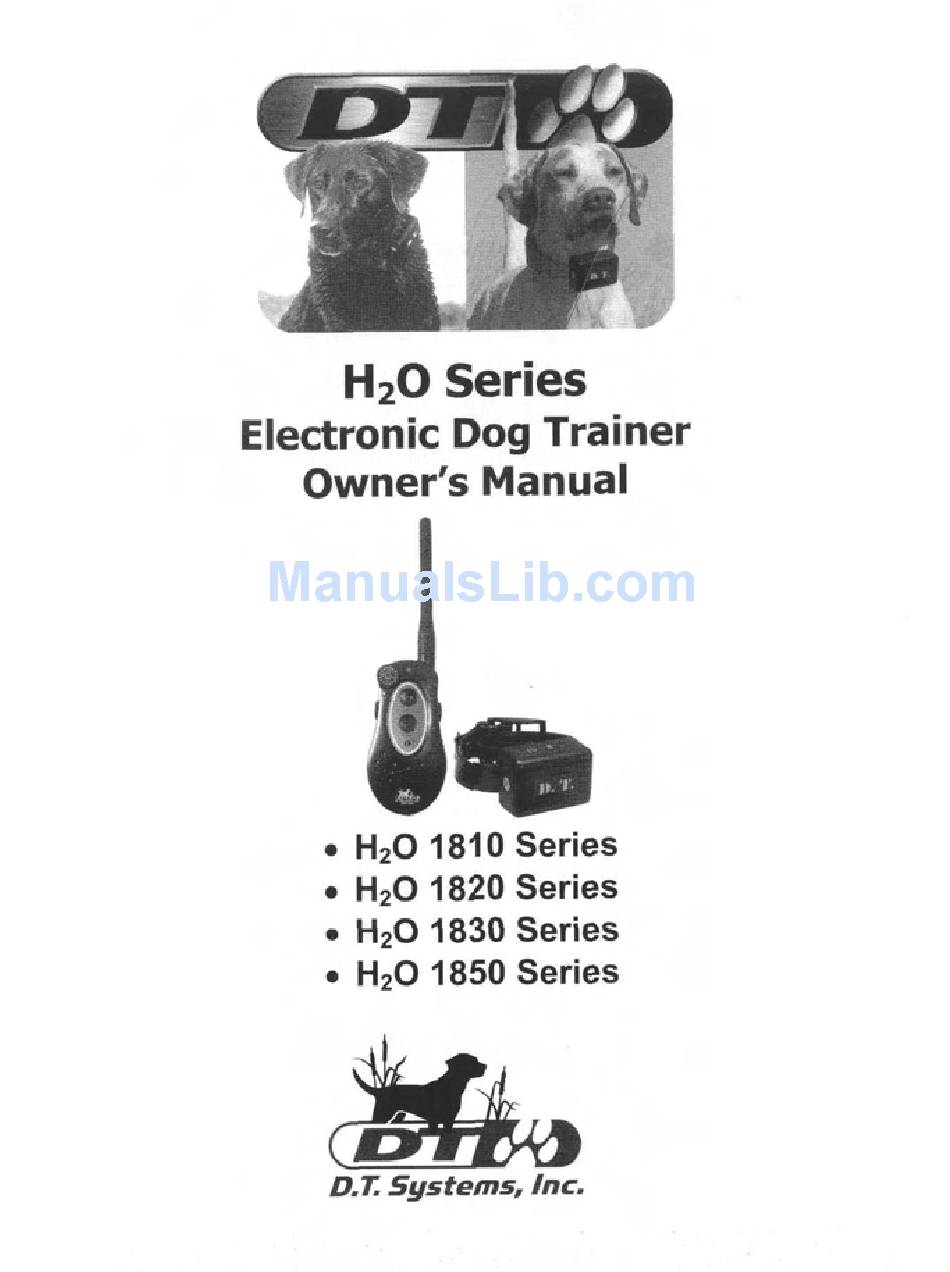

- Page 1 H20 Series Electronic Dog Trainer Owner's Manual H20 181 0 Series H20 1820 Series H 2 0 1830 Series H20 1850 Series L J m Systems, Inc.
- Page 2 NOTICE! According to how you your transmitterr, the transmitting range might be much difkrent. m o r e range You will have if you use your transmitter apart from your body as f o l l ~ s : Maximum Range Typical Range Minimum Range...
- Page 3 TABLE CONTENTS ........Table Contents ..........Introduction ......... Package Contents ........Model Features Adjusting Positioning ....... Your Collar for Proper ....... Parts and Functions ..........Batteries ......Setting Intensity Levels ......ProgrammingITesting ......Important Safety Notes .......... Maintenance ..........Warranty ........
- Page 4 The automatic safety shut-off feature stops the stimulus on both the transmitter and the receiver to prevent accidental or prolonged stimulation. Thanks again for choosing D.T. Systems for your dog training needs.
-
Page 5: Important Note
IMPORTANT NOTE: Please read this owner's manual in its entirety before operating this unit. Should you have any questions about our collars or their operation please contact our Customer Service department (see back page for address and phone number information). Transmitter Collar Receiver... - Page 6 60Series Digital Technology One mile range trainer Lightweight, waterproof collar and transmitter 16 adjustable intensity levels of Momentary ('Nick') Stimulation, and Constant Stimulation Rechargeable Ni-MH battery system Gentle Touch SystemTM Extra Mild Stimulation MAXX-RangeTM Invisible, Embedded Collar Antenna Built in safety shut-off system All models available in two and three dog systems Positive Vibration (H20 1820,1822, &...
- Page 7 r u a ~ AUJUP I ANU I AUNANU TUUK COLLAR FOR PROPER FIT Proper collar tightness and position are very important to insure safety and correct functioning every time you use the collar. All electronic collars need to be very snug to work properly.
- Page 8 Indicator Light Intensity Dial Momentaw 'Nick' stimulaiion (Function #2 (Function varies varies accordi according to model) model) Continuous Stimulation Multi-Unit Selection Switch Charging Battery Transmitter (Multiple dog transmitter shown)
- Page 9 Collar Belt with Embedded Antenna \Beeper Horn Collar Receiver Turnina the Unit On: Press and hold the OnIOff button on the Collar Receiver. The Red LED Indicator will light solidly for two seconds. Continue holding the Button until the Red light goes off. The unit is now On.
- Page 10 Intensity Selection Dial intensity selection dial allows choose between sixteen different levels stimulation, allowing for very precise control. Transmitter Indicator Linht When orle of the push button switches on the transmitter is pushed, the RED light will turn on to indicate that the transmitter is being operated, When the battery needs charging the RED light will blink once every 112 second while holding the continuous...
- Page 11 PARTS & FUNCTIONS CONT. Vibration Buttons (H20 182011 82211 823) Pressing the button on the left (#I) of the transmitter causes the collar to vibrate. Pressing the button to the right (#2) of the transmitter causes the collar to vibrate for 112 second.
- Page 12 Battery Charging Receptacles The battery charging receptacle is located on the side of the Transmitter, and on the side of the Collar Receiver facing the dog's neck. After charging, always close the jack with the rubber plug to prevent foreign particles from getting inside the unit. Collar Indicator Light When the Collar Receiver is turned on, the RED light will flash steadily once every two seconds to indicate...
- Page 13 All H20 Series collars are equipped with rechargeable Nickel Metal Hydride (NiMH) batteries. NiMH batteries are not memory sensitive and do not require depletion before recharging. The batteries come partially charged from the factory. However, it is recommended that you give the battery a full charge (about 12 hours) before the first use.
- Page 14 The first and most important step in training your dog with your H20 Training System is determining the correct lntensity Level to provide the proper training stimulation without over-shocking your dog. To do this place the Collar on the dog's neck and turn it on.
- Page 15 Settincl the Jump Stimulation Level: (H20 183011 83211 833 only) 1. Set the intensity level to the level that you would like it to "jump" to 2. On the transmitter, press and hold buttons #I and #2 ('Jump' and 'Rise' buttons) at the same time. 3.
- Page 16 Press and hold the power button on the Collar Re- ceiver. You will see the LED light on the collar blink 7 times before staying solid. You must hold down the power button until the LED light becomes solid. Si- multaneously, press and release the nick and continu- ous buttons.
- Page 17 To Test the Vibration: (H20 182011 82211 823 only) A) Follow the directions for testing the Electronic Stimulation, and press the button on the left side of the transmitter. B) If you press the button on the right side of the transmitter, the unit should vibrate for 112 second and then the tester should light while vibrating at the same time.
- Page 18 Before beginning training, your dog should be examined by a veterinarian to assure that your dog is in good health. Never leave your don unattended with the unit on. Since no electronic device is perfect, there is a very slight possibility that your dog may receive an unintentional electric stimulation.
- Page 19 It is ve important to periodically clean your H20 Seriesy"' systems for maximum performance. Regular cleaning will also lengthen the life of your unit. Clean the H20 Series collar box with lukewarm water and a mild anti-bacterial soap. Take care thoroughly clean space...
- Page 20 D.T. Systems Premium Lifetime Warranty is the best warranty offered in the industry. This warranty is free to participating U.S. customers. (The warranty registration card must be returned within 30 days of original purchase). This changes our normal one year...
- Page 21 (with your original sales receipt) to D.T. Systems within 30 days of purchase. There is no charge for parts or labor for the first year on any of our lifetime warranty products.
-
Page 22: Fcc Compliance
The H20 Series has been made with State of the Art equipment. Any fine adjustment should be performed only by D.T. Systems' technicians. - Page 24 0 . T . systems, Inc. 2872 Walnut Hill Lane Dallas, Texas 75229 Tel: (214) 350-9446, (888) LUV-U-DOG Fax: (214) 350-7847 Website: http://www.dtsystems.com E-mail: customerservice@dtsystems.com Korea Printed...
