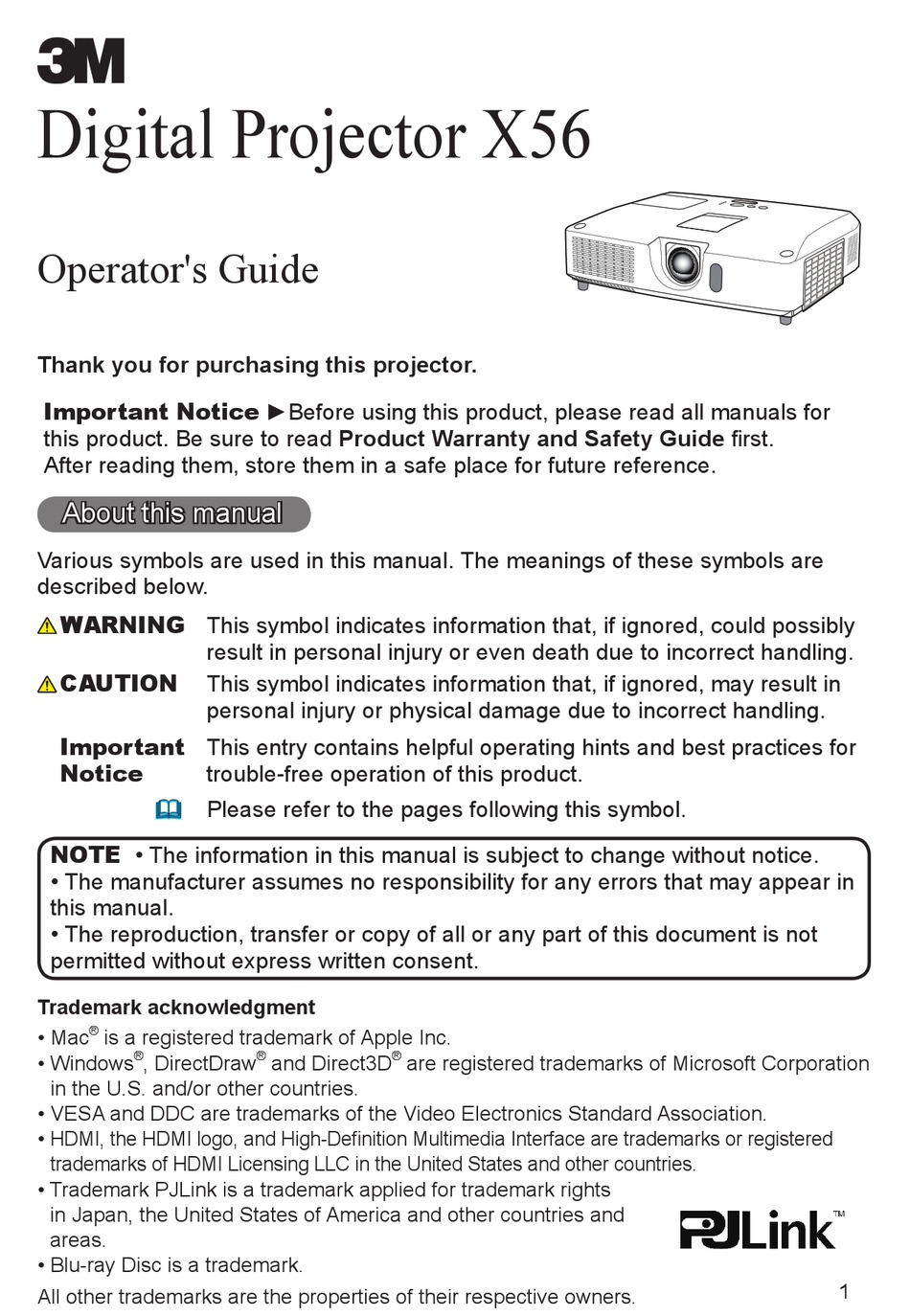

Digital Projector X56
Operator's Guide
Thank you for purchasing this projector.
Important Notice
this product. Be sure to read Product Warranty and Safety Guide first.
After reading them, store them in a safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION
This symbol indicates information that, if ignored, may result in
personal injury or physical damage due to incorrect handling.
Important
This entry contains helpful operating hints and best practices for
Notice
trouble-free operation of this product.
Please refer to the pages following this symbol.
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
®
• Mac
is a registered trademark of Apple Inc.
®
• Windows
, DirectDraw
in the U.S. and/or other countries.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
• Trademark PJLink is a trademark applied for trademark rights
in Japan, the United States of America and other countries and
areas.
• Blu-ray Disc is a trademark.
All other trademarks are the properties of their respective owners.
►Before using this product, please read all manuals for
®
®
and Direct3D
are registered trademarks of Microsoft Corporation
1

Advertisement

Table of Contents
loading

Related Manuals for 3M X56

Summary of Contents for 3M X56

  • Page 1 Digital Projector X56 Operator's Guide Thank you for purchasing this projector. Important Notice ►Before using this product, please read all manuals for this product. Be sure to read Product Warranty and Safety Guide first. After reading them, store them in a safe place for future reference.

  • Page 2: Table Of Contents

    Specifications . . . . . . . . . . . . 103 dmi rAnge omputer in rAme lock esolution © 3M 2011. All Rights Reserved.

  • Page 3: Introduction

    ü Installed 16W speakers provide sound for large areas without needing external speakers. Checking the contents of package Your projector should come with the items shown there. Please request missing items from your dealer or 3M via contact information found at the end of this manual. MY SOURCE/ STANDBY/ON...

  • Page 4: Part Names

    ►Do not attach anything onto the lens except the lens cover of this projector because it could damage the lens, such as melting the lens. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 5 (7) AUDIO IN2 port (16) VIDEO port (8) AUDIO IN3 (R,L) ports (17) S-VIDEO ports (9) AUDIO OUT (R,L) ports (18) Shutdown switch (98) (10) COMPUTER IN1 port (19) Security slot (15) (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 6 (20) POSITION button (24, 30) (21) MENU button (29) (26) (22) ▲/▼/◄/► cursor buttons (29) (23) ENTER button (29) (24) ESC button (30) (25) RESET button (30) Back of (26) Battery cover (16) the remote control © 3M 2011. All Rights Reserved.

  • Page 7: Setting Up

    Refer to tables T-1 at the back of Product Warranty and Safety Guide as well as the following to determine the screen size and projection distance. Projector top Projector bottom Screen size Projection distance (from the projector's end) : Screen height (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 8 • Do not place the projector near water, such as in a bathroom, kitchen, or poolside. • Do not place the projector outdoors or by the window. • Do not place anything containing liquid near the projector. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 9 (59). If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside. • Keep heat-sensitive things away from the projector. Otherwise, they may be damaged by the heat from the projector. © 3M 2011. All Rights Reserved.

  • Page 10: Connecting With Your Devices

    COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted. - Please use the standard drivers in your computer as this projector is a Plug- and-Play monitor. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 11 In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 12 REMOVE USB function on the thumbnail screen to secure your data (80). • If an oversized USB storage device blocks the LAN port, use a USB exten- sion cable to connect the USB storage device. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 13 HDMI logo. - When the projector is connected with a device having DVI connector, use a DVI to HDMI cable to connect with the HDMI input. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 14 In both modes (standby or normal), the MUTE button on the remote control works on the sounds of the microphone and the projector (19). • This projector doesn't support plug-in power for the microphone. © 3M 2011. All Rights Reserved.

  • Page 15: Connecting To A Power Supply

    ►Do not place anti-theft chain or wire near the exhaust vents. It may become too hot. NOTE • The security bar and slot is not comprehensive theft prevention measures. It is intended to be used as supplemental theft prevention measure. © 3M 2011. All Rights Reserved.

  • Page 16: Remote Control

    • The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter fl uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights. © 3M 2011. All Rights Reserved.

  • Page 17: Changing The Frequency Of Remote Control Signal

    - When any menu is displayed on the screen. - While using the cursor buttons to operate the sound or screen functions such as adjusting the sound volume, correcting the keystone, correcting the picture position and magnifying the screen. © 3M 2011. All Rights Reserved.

  • Page 18: Power On/Off

    Please refer to the DIRECT POWER ON (54) and AUTO POWER OFF (55) items of the OPTION menu. • Use the shutdown switch (98) only when the projector is not turned off by normal procedure. © 3M 2011. All Rights Reserved.

  • Page 19: Operating

    ● While ON is selected for AUTO SEARCH item in OPTION menu (54), the projector will keep checking the ports in above order repeatedly till an input signal is detected. ● It may take several seconds to project the images from the USB TYPE B port. © 3M 2011. All Rights Reserved.
  • Page 20 ● This function also can use for document camera. Select the MY SOURCE/ COMPUTER VIDEO DOC.CAMERA input port that connected the document camera. ASPECT AUTO SEARCH BLANK PAGE UP VOLUME MAGNIFY FREEZE PAGE DOWN MY BUTTON KEYSTONE MUTE POSITION MENU ENTER RESET © 3M 2011. All Rights Reserved.

  • Page 21: Searching An Input Signal

    ENTER TYPE B port, or if there is no signal RESET 4:3 (fixed) ● ASPECT button does not work when a signal is not detected. ● NORMAL mode keeps the original aspect ratio setting. © 3M 2011. All Rights Reserved.

  • Page 22: Adjusting The Projector's Elevator

    ►Do not tilt the projector other than elevating its front within 12 degrees using the adjuster feet. Exceeding the projector’s tilt restriction could shorten the lamp life and/or cause the projector to malfunction. © 3M 2011. All Rights Reserved.

  • Page 23: Adjusting The Lens

    • Use the LOCK so that the lens does not shift from the adjusted horizontal lens position. Adjusting the vertical lens position may shift the horizontal lens position. This projector is not equipped with a lock for vertical lens position. © 3M 2011. All Rights Reserved.

  • Page 24: Using The Automatic Adjustment Feature

    ● If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does. ● This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port. © 3M 2011. All Rights Reserved.

  • Page 25: Correcting The Distortion

    ▲/▼ buttons and press the ► or ENTER button. Alternatively, select RETURN in the dialog with the ▲/▼ buttons and press the ◄ or ENTER button to return to the menu in step 1. © 3M 2011. All Rights Reserved.
  • Page 26 ▲/▼ buttons and press the ► or ENTER button. Alternatively, select RETURN in the dialog with the ▲/▼ buttons and press the ◄ or ENTER button to return to the menu in step 1. © 3M 2011. All Rights Reserved.

  • Page 27: Using The Magnify Feature

    ● This function is not available in the following cases: - The USB TYPE A port is selected as the input source. - A sync signal in the range not supported is input. - There is no input signal. © 3M 2011. All Rights Reserved.

  • Page 28: Temporarily Freezing The Screen

    • The sound is not connected with the BLANK screen function. If necessary, set the volume or mute first. To display the BLANK screen and mute the sound at one time, use AV MUTE function (19). © 3M 2011. All Rights Reserved.

  • Page 29: Using The Menu Function

    ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear. (3) Use the buttons as instructed in the OSD to operate the item. © 3M 2011. All Rights Reserved.
  • Page 30 Select to cancel the operation in the present menu and return CANCEL or NO to the previous menu. Select to execute the prepared function or shift the menu to OK or YES the next menu. © 3M 2011. All Rights Reserved.

  • Page 31: Easy Menu

    PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (33, 34) items in PICTURE menu. • Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 32 Press the ► or ENTER button to use the menu of PICTURE, ADVANCED MENU IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY. EXIT Press the ◄ or ENTER button to finish the OSD menu. © 3M 2011. All Rights Reserved.

  • Page 33: Picture Menu

    • Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 34 (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the projector recognizes that it receives video signals. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 35 • There may be some noise and the screen may flicker for a moment when loading data. This is not malfunction. • You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (57). © 3M 2011. All Rights Reserved.

  • Page 36: Image Menu

    (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the projector recognizes that it receives video signals. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 37 It is not possible to adjust when OVER SCAN is set to 10. • This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI por (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 38 PC model. • The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (59). © 3M 2011. All Rights Reserved.

  • Page 39: Input Menu

    Pb, Cr/Pr) and VIDEO ports will function as a SCART RGB port. A SCART adapter or SCART cable is required for a SCART RGB input to the projector. For details, contact your dealer. (continued on next page) © 3M 2011. All Rights Reserved.

  • Page 40: Dmi Range

    DVD signals. (16-235) ENHANCED sets the suitable mode for computer signals. (0-255) • If the contrast of the screen image is too strong or too weak, try finding a more suitable mode. (continued on next page) © 3M 2011. All Rights Reserved.

  • Page 41: Omputer In

    • This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz. • When ON is selected, moving pictures are displayed more smoothly. (continued on next page) © 3M 2011. All Rights Reserved.

  • Page 42: Esolution

    CANCEL on screen and press the ◄ or ENTER button. The screen will then return to the RESOLUTION menu displaying the previous resolution. • For some pictures, this function may not work well. © 3M 2011. All Rights Reserved.

  • Page 43: Setup Menu

    WIDE (wide-angle focus) whenever possible. • This function is unavailable when the TRANSITION DETECTOR (74) is ON or the screen is adjusted by PERFECT FIT (26). (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 44 If the Transition Detector is on and MIRROR status is changed, TRANSITION DETECTOR ON alarm (74) will be displayed when projector is restarted after the AC power is turned off. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 45 Select OFF to disable the MONITOR OUT port for the input port or standby mode chosen in the step (1). • You cannot select COMPUTER IN1 in step (1) and COMPUTER IN2 in step (2) and vice versa. © 3M 2011. All Rights Reserved.

  • Page 46: Audio Menu

    NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPONENT, COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (53). (continued on next page) © 3M 2011. All Rights Reserved.

  • Page 47: Dmi Audio

    HIGH: for a microphone with an amplifier. LOW: for a microphone without an amplifier. Using the ◄/► buttons adjusts the volume of the microphone connected to the MIC port. MIC VOLUME Low ó High © 3M 2011. All Rights Reserved.

  • Page 48: Screen Menu

    • When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (72), the START UP is fixed to MyScreen. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 49 • This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (72). • This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 50 FREEZE button. The indication of the TEMPLATE displayed by changing. • When the OFF is selected, please remember if the picture is frozen. Do not mistake freezing for a malfunction (28). (continued on next page) © 3M 2011. All Rights Reserved.

  • Page 51: Ource Name

    Then press the ENTER or INPUT button. (5) If you would like to modify the name assigned to the port, select CUSTOM NAME and press the ENTER or INPUT button. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 52 MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 53 1: Channel 1, primary channel / language 2: Channel 2 3: Channel 3 4: Channel 4 The channel data may vary, depending on the content. Some channel might be used for secondary language or empty. © 3M 2011. All Rights Reserved.

  • Page 54: Option Menu

    • After turning the lamp on by the DIRECT POWER ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO POWER OFF function (55) is disabled. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 55 MOUSE. Select USB DISPLAY in the dialog to project the picture input to the USB TYPE B port. In this case, you cannot use the simple mouse and keyboard function. Otherwise select other port for picture input. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 56 • Please reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter. • For the air filter cleaning, see the section Cleaning and replacing the air filter (91). (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 57 If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 58 You can use this function not only for document cameras but also MY SOURCE computers and other equipment. COMPUTER IN1 ó COMPUTER IN2 ó LAN ó USB TYPE A VIDEOóS-VIDEO ó COMPONENT ó HDMI ó USB TYPE B (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 59 • Please be careful with the operating environment of the projector and the condition of the filter unit. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 60 • When COMMUNICATION TYPE (61) is set to OFF, the other items in COMMUNICATION menu are invalid. • For the function of serial communication, refer to the Network Guide. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 61 • HALF-DUPLEX is selected as the default setting. • If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (62). (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 62 TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (61). • OFF is selected as the default setting. STACK Selecting this item displays the STACK menu. For more information, please see Instant Stack Guide. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 63 Note that the items LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset. CANCEL ð OK © 3M 2011. All Rights Reserved.

  • Page 64: Network Menu

    IP address from DHCP Protocol) server. • Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 65 • The projector will override this setting and TIME retrieve DATE AND TIME information from the Time server when SNTP is enabled. (3.9 Date/ Time Settings in the Network Guide) (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 66 ►, ENTER or INPUT button. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 67 When ON is selected, the projector can be detected by controllers (AMX Device of AMX connected to the same network. For the details of AMX Discovery) Device Discovery, visit the AMX web site. URL: http://www.amx.com/ (as of Aug. 2010) (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 68 - Multi PC mode: displays the images sent from up to four computers on screen that is divided into quarter sections. Select this item to display a dialog. Use the dialog to change the display mode as explained below. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 69 DISPLAY • You can set user names for each computer on USER NAME “LiveViwer”. For details, see the section 2.2.3 Display User Name in the Network Guide. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 70 Then use the button ► to execute. SERVICE Network will be once cut off when choose restart. If DHCP is selected on, IP address may be changed. After selecting RESTART EXECUTE, NETWORK menu may not be controlled approx. 30 seconds. © 3M 2011. All Rights Reserved.

  • Page 71: Security Menu

    Pressing the ENTER button on the remote control or ► button on the projector will close the NOTE NEW PASSWORD box. • Please do not forget your password. (continued on next page) © 3M 2011. All Rights Reserved.

  • Page 72: Yscreen Password

    Inquiring Code will be displayed inside the box. 3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will be sent after your user registration information is confirmed. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 73 Inquiring Code is displayed, the projector will turn off. 3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will be sent after your user registration information is confirmed. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 74 Inquiring Code will be displayed inside the box. 3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will be sent after your user registration information is confirmed. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 75 3-3 Contact your dealer with the 10 digit inquiring code. Your password will be sent after your user registration information is confirmed. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 76 When ON is selected while PIN LOCK or TRANSITION DETECTOR is ON, the SECURITY indicator blinks in the standby state (73, 74). Selecting this item displays the STACK LOCK dialog. For more information, STACK LOCK please see Instant Stack Guide. © 3M 2011. All Rights Reserved.

  • Page 77: Presentation Tools

    • Files with a resolution smaller than 100x100 may not be displayed. • Some supported files may not be displayed. • Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode. © 3M 2011. All Rights Reserved.

  • Page 78: Thumbnail Mode

    Thumbnail mode. The Thumbnail mode will be started as the primary function of the PC-LESS Presentation after selecting the USB TYPE A port as the input source. Thumbnail menu Selected image Thumbnail images © 3M 2011. All Rights Reserved.

  • Page 79: Operating By Buttons Or Keys

    “playlist.txt” file (85). Press the ► cursor button or ENTER to rotate the selected ROTATE image 90 degrees clockwise. This setting information will be saved in the “playlist.txt” file (85). © 3M 2011. All Rights Reserved.
  • Page 80 Be sure to use this function before removing USB storage device from the projector. After that, the projector will not recognize a REMOVE USB USB storage device until you insert it again into the USB TYPE A input port. © 3M 2011. All Rights Reserved.
  • Page 81 • Some error icons will be displayed in the Thumbnail. This file seems to be broken or not supported format. A file that cannot be displayed on the thumbnail screen is indicated by a file format icon. © 3M 2011. All Rights Reserved.

  • Page 82: Full Screen Mode

    • These operations are not accessible while the projector OSD is displayed. • It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed. © 3M 2011. All Rights Reserved.

  • Page 83: Slideshow Mode, Playlist

    • When the Slideshow mode is set to ONE TIME, the last slide of the presentation will be held on screen till the ENTER button on the remote control or Web Remote Control, or INPUT button on the projector is pushed. © 3M 2011. All Rights Reserved.
  • Page 84 • The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist. • If the storage media is under the write protection or the “playlist.txt” is the read only type file, it is impossible to change the settings of the Slideshow. © 3M 2011. All Rights Reserved.
  • Page 85 Any files over the limit will not be shown in the Slideshow. • If the storage device is protected or does not have sufficient space, the “playlist.txt” file cannot be created. • For the Slideshow settings, refer to the section Slideshow mode (83). © 3M 2011. All Rights Reserved.

  • Page 86: Usb Display

    • Some security software may block image transmission. Please change the security software setting to allow the use of "LiveViewer Lite for USB". © 3M 2011. All Rights Reserved.

  • Page 87: Options Window

    The Floating menu is closed, and the icon reappears in the Windows notification area. NOTE • If you click the Start capture button and/or Stop button repeatedly, images may not be displayed on the screen. © 3M 2011. All Rights Reserved.

  • Page 88: Options Window

    NOTE • When the resolution is changed, the arrangement of icons on computer desktop screen may be changed. About The version information of the “LiveViewer Lite for USB”. © 3M 2011. All Rights Reserved.

  • Page 89: Maintenance

    ►Do not touch any inner space of the projector, while the lamp is taken out. NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp. © 3M 2011. All Rights Reserved.

  • Page 90: Lamp Warning

    When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage. © 3M 2011. All Rights Reserved.

  • Page 91: Cleaning And Replacing The Air Filter

    If the fi lters are damaged or heavily soiled, replace them with the new ones. Combine the two parts to reassemble the fi lter unit. Insert the fi lter unit back into the projector. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 92 • The projector may display the message such as the “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising. © 3M 2011. All Rights Reserved.

  • Page 93: Replacing The Internal Clock Battery

    • Keep a battery away from children and pets. Be careful for them not to swallow a battery. If swallowed consult a physician immediately for emergency treatment. • Obey the local laws on disposing a battery. © 3M 2011. All Rights Reserved.

  • Page 94: Other Care

    ►Do not use cleaners or chemicals other than those specified in this manual. ►Do not polish or wipe with hard objects. ►Do not directly touch the lens surface with hands. © 3M 2011. All Rights Reserved.

  • Page 95: Troubleshooting

    Please confirm the specs for your projector or the signal source specs. An improper signal is input. Please confirm the specs for your projector or the signal source specs. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 96 Cleaning and replacing the air filter section of this manual. After you have cleaned or changed the air filter, please be sure to reset the filter timer (56, 91). The button operation is not available. © 3M 2011. All Rights Reserved.

  • Page 97: H Position , Regarding The Indicator Lamps

    Lighting etc., and then turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company. © 3M 2011. All Rights Reserved.

  • Page 98: Shutting The Projector Down

    When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (63) can reset all settings (except settings such as LANGUAGE, LAMP TIME, FILTER TIME, FILTER MESSAGE, SECURITY and NETWORK) to the factory default. © 3M 2011. All Rights Reserved.

  • Page 99: To Be Mistaken For Machine Defects

    AV MUTE may be active. 19, 28, Refer to the item “Sound does not come out” and “No pictures are displayed” on the next page to turn off the MUTE and BLANK functions. (Continued on next page) © 3M 2011. All Rights Reserved.
  • Page 100 Before removing the USB storage device, be sure to use the REMOVE USB function on the thumbnail screen, which appears when the USB TYPE A port is selected as the input source. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 101 Change the setting of VIDEO NR in the INPUT menu. on screen. The FRAME LOCK function cannot work on the current input signal. Set FRAME LOCK in the INPUT menu to OFF. (continued on next page) © 3M 2011. All Rights Reserved.
  • Page 102 Direct3D run. NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect. © 3M 2011. All Rights Reserved.

  • Page 103: Specifications

    • Be sure to read “End User License Agreement for the Projector Software” which is a seperate document. © 3M 2011. All Rights Reserved.
  • Page 104 3M Product Manual in effect at the time of purchase. The warranties stated in the applicable 3M Product Manuals are exclusive and are made in place of any and all express or implied warranties or conditions, including any implied warranty of merchantability or fitness for a particular purpose, or any industry practice or custom or trade usage.
