Gefen Pro GEF-SDI-AUDD 3GSDI User Manual

Audio de-embedder
Hide thumbs Also See for GEF-SDI-AUDD 3GSDI:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

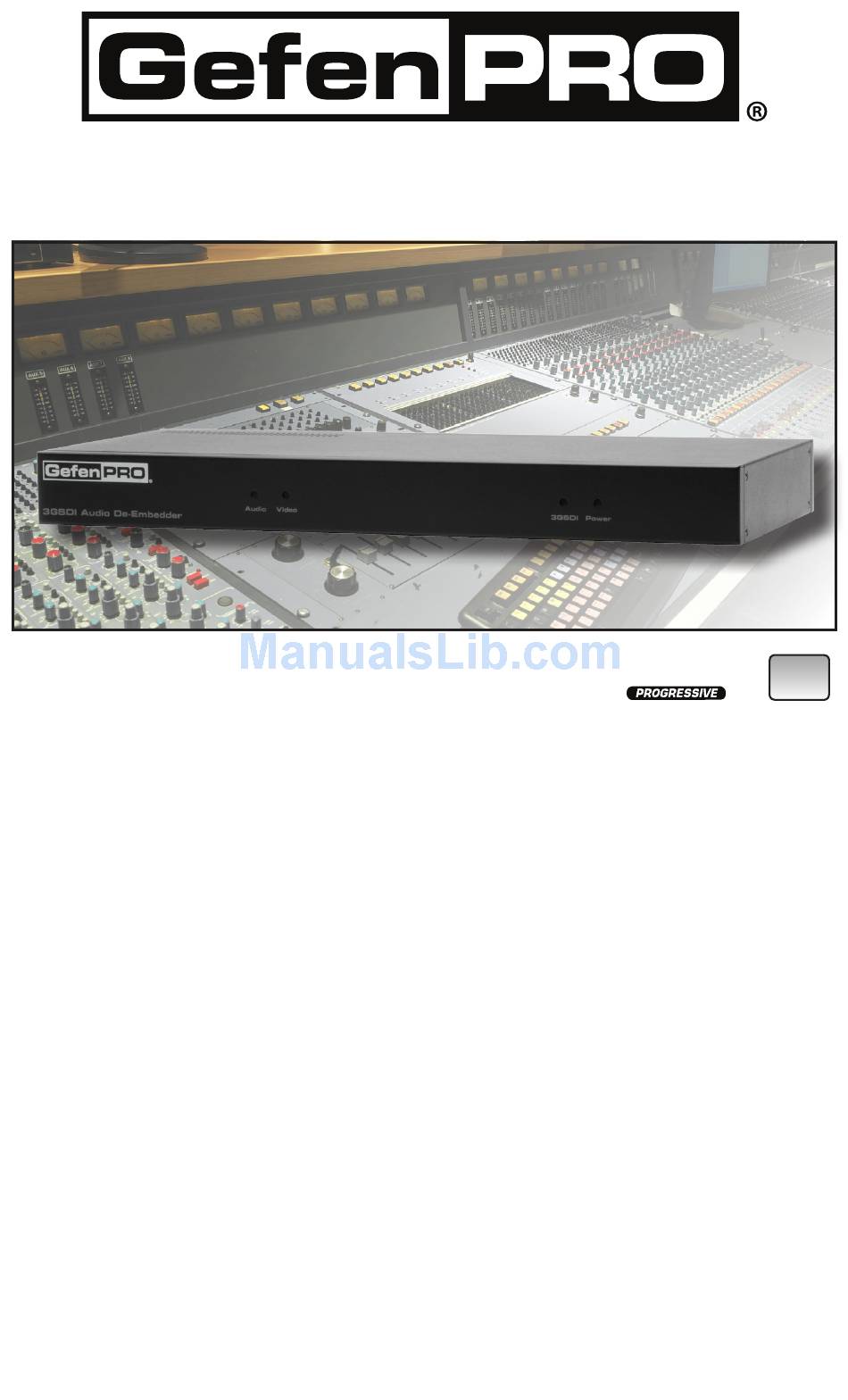

2K
1080P
3GSDI
Audio De-Embedder
GEF-SDI-AUDD
User Manual
www.gefenpro.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEF-SDI-AUDD 3GSDI and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen Pro GEF-SDI-AUDD 3GSDI

Summary of Contents for Gefen Pro GEF-SDI-AUDD 3GSDI

  • Page 1 1080P 3GSDI Audio De-Embedder GEF-SDI-AUDD User Manual www.gefenpro.com...
  • Page 3 ASKING FOR ASSISTANCE Technical Support: Telephone (818) 772-9100 (800) 545-6900 Fax (818) 772-9120 Technical Support Hours: 8:00 AM to 5:00 PM Monday through Friday, Pacific Time For 24 / 7 support, see the back of the product for the support number Write To: Gefen, LLC. c/o Customer Service 20600 Nordhoff St Chatsworth, CA 91311 www.gefenpro.com support@gefenpro.com Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. 3GSDI Audio De-Embedder is a trademark of Gefen, LLC © 2013 Gefen, LLC. All rights reserved. All trademarks are the property of their respective owners. Rev A1...

  • Page 4: Table Of Contents

    CONTENTS INTRODUCTION........................1 Important Operating Notes....................2 Features..........................3 Package Includes......................3 Panel Layout........................4 Panel Descriptions......................5 CONNECTING THE 3GSDI AUDIO DE-EMBEDDER............6 Connections........................6 Wiring Diagram.......................6 OPERATING THE 3GSDI AUDIO DE-EMBEDDER...............7 LED Indicators........................7 Block Diagram.........................8 Signal Flow........................9 Controlling and Routing Audio Data................11 Un-routed Source and AES Channels................14 Muting Channels......................14 Audio Mapping Table....................16 RS-232 SERIAL CONTROL....................17 RS-232 COMMANDS......................18 RACK MOUNT SAFETY INFORMATION................32 MOUNTING PLATE INSTALLATION...................33 APPENDIX..........................34 Firmware Update Procedure..................34 SPECIFICATIONS........................35 WARRANTY..........................36...

  • Page 5: Introduction

    INTRODUCTION Congratulations on your purchase of the 3GSDI Audio De-Embedder. Your complete satisfaction is very important to us. GefenPRO In the realm of video distribution, certain features are invaluable in a commercial or broadcast environment. Accommodations such as a build-in power supply and flat black rack-mount enclosures set GefenPRO apart from our traditional products. Complex distribution units allow for professional DVI, 3GSDI, and HDMI signals to be routed and converted easily and seamlessly, while being backed up by a renowned and dependable technical support team. Gefen invites you to explore the GefenPRO product line and hopes that you find the solution that fits your needs. The GefenPRO 3GSDI Audio De-Embedder The GefenPRO 3GSDI Audio De-Embedder extracts audio from 3GSDI, Single-Link HDSDI, EDSDI, and SDI video signals.Up to four AES/EBU digital audio streams can be de-embedded and routed to any of the four audio outputs. Selection and routing of each audio group or pair can be configured via RS-232. How It Works Connect an SDI source to the SDI In connector. Connect the SDI Loop Out connector to an SDI audio/video device to monitor the original unmodified signal. Connect the Output connector to an SDI acceptor (such as video broadcast equipment). Connect up to four AES/EBU digital audio reproduction devices (such as a DAT recorder or pre-amp) to the Audio Out connectors. Connect the RS-232 cable from the Audio De-Embedder to a PC or automation system to control which audio group or pair will be de-embedded from the video signal. Connect the AC power cord to the 3GSDI Audio De-Embedder and to an available electrical outlet. Once the unit is powered, RS-232 commands can be used to select the audio group and pair to be de-embedded from the video signal.

  • Page 6: Important Operating Notes

    INTRODUCTION READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 3GSDI AUDIO DE-EMBEDDER • This product does not support dual-link HDSDI sources.

  • Page 7: Features

    INTRODUCTION Features • Supports SDI, EDSDI, Single-Link HDSDI, and 3GSDI • Allows individual digital audio channels to be re-arranged on the output • Audio delay adjustment for each pair of audio outputs (0 – 170 ms) • 3GSDI detection • LED Status Indicators • Firmware can be updated using the USB port Package Includes (1) GefenPRO 3GSDI Audio De-Embedder (1) 6 ft. DB-9 Cable (1) AC Power Cord (1) Set of Rack Ears (1) Quick-Start Guide...

  • Page 8: Panel Layout

    INTRODUCTION...

  • Page 9: Panel Descriptions

    INTRODUCTION Audio This LED indicator glows bright blue when audio data is detected on the 3GSDI In or Audio In connectors. Video This bi-color LED indicator will glow bright red when an SDI signal is detected on the 3GSDI In connector. If an HDSDI signal is detected, then the LED will glow bright green. 3GSDI This LED will glow bright blue when a 3GSDI signal is detected on the 3GSDI In connector. Power This LED indicator will glow bright blue when the unit is powered. USB This USB port is used for updating the firmware. See page 34 for details. RS-232 Connect an RS-232 cable from this port to an RS-232 controller. All audio routing is handled through RS-232. See page 17 for more information. Audio Out (1 - 4) Connect up to four SDI destinations (DAT recorders, etc) to these connectors. 3GSDI Input (In) Connect a BNC cable from the SDI source to this connector. 3GSDI Input (Loop Out) Connect a BNC cable from this connector to a local SDI display. The Loop Out connector will pass-through the SDI signal without any processing. 10 3GSDI Output Connect a BNC cable from this connector to an SDI display. 11 Power Receptacle Connect the included AC power cord from this power receptacle to an available electrical outlet. 12 Power Switch Press this switch to power-on or power-off the unit.

  • Page 10: Connecting The 3Gsdi Audio De-Embedder

    CONNECTING THE 3GSDI AUDIO DE-EMBEDDER Connections Connect an SDI, HDSDI, or a 3GSDI source to the 3GSDI Input (In) connector. Use up to four BNC cables to connect the Audio Out connectors (1 - 4) to DAT recorders, audio embedders, etc. Connect the 3GSDI broadcast equipment to the 3GSDI Out connector. If monitoring of the 3GSDI source is desired, connect a BNC cable from the 3GSDI Input / Loop Out connector to the 3GSDI display. The Loop Out connector provides monitoring of the input signal without any processing. Connect an RS-232 cable between the RS-232 controller and the 3GSDI Audio De-Embedder. All audio routing is controlled using RS-232. Connect the included AC power cord from the power receptacle to an available electrical outlet. Power the 3GSDI Audio De-Embedder by pressing the power switch on the rear of the unit to the ON position. The Power LED on the front panel will glow bright blue when the unit is powered. Wiring Diagram for the 3GSDI Audio De-Embedder RS-232 CABLE ® SDI CABLE 3GSDI Display (local monitor) RS-232 Controller 3GSDI Digital Video Player to Video Broadcast Equipment...

  • Page 11: Operating The 3Gsdi Audio De-Embedder

    OPERATING THE 3GSDI AUDIO DE-EMBEDDER LED Indicators The LED indicators on the front panel provide information on the type of signal that is being received on the inputs. SDI / HDSDI Video Input and AES Audio Output The Audio LED indicator will glow bright blue if SDI or AES/EBU audio is detected on any of the Audio Out (1 - 4) connectors. The Video LED indicator will glow bright red if SDI video data is detected on the 3GSDI In connector. If HDSDI video data is detected, then the Video LED will glow bright green. SDI / HDSDI Video AES/EBU audio SDI video detected HDSDI video detected 3GSDI Video Input The 3GSDI LED indicator will glow bright blue if 3GSDI video data is detected on the 3GSDI In connector. AES/EBU audio 3GSDI video 3GSDI video detected...

  • Page 12: Block Diagram

    OPERATING THE 3GSDI AUDIO DE-EMBEDDER Block Diagram DELAY...

  • Page 13: Signal Flow

    OPERATING THE 3GSDI AUDIO DE-EMBEDDER Signal Flow The 3GSDI Audio De-Embedder core has three main elements to provide switching of audio groups and audio channels: • 4x2 Switcher (input) The first element allows any two of the four SDI audio input groups (Group 1 - Group 4) to be routed to the source groups (S1 - S2). For example, Group 1 can be routed to S2 and Group 3 can be routed to S1. Only one SDI audio input group can be routed to a source group at a time. Group 1 Group 2 SDI In Group 3 Group 4 • 8x16 Matrix with Delay Once the selected SDI audio input groups have been routed to the source groups, any of the four source audio channels (S1.1 ... S2.4) can be routed once or multiple times to any of the output audio channels (O1.1 ... O1.4, O2.1 ... O2.4) or to any AES audio channel (A.1 ... A.8).
  • Page 14 OPERATING THE 3GSDI AUDIO DE-EMBEDDER Note in the diagram, on the previous page, that souce audio channels S1.1, S1.3, S2.1, S2.2, and S2.3 are routed to multiple output audio channels and AES audio channels. Audio delay (from 0 to 170 ms) can be applied, if desired, to each output audio channel and/or each AES audio channel before being sent to the output groups or Audio Out BNC connectors. • 2x4 Switcher (output) The third and final stage combines the individual output channels into two output groups (O1 and O2). The output groups are then delivered to the specified SDI audio output group (Group 1 ... Group 4). In addition, any individual AES audio channels are combined as audio pairs (A.1 + A.2, A.3 + A.4, etc) and delivered to the Audio Out connectors: A.1 + A.2 are sent to Audio Out 1, A.3 + A.4 are sent to Audio Out 2, and so on. Group 1 Group 2 SDI Out Group 3 Group 4 Audio Out 1 Audio Out 2 Audio Out 3...

  • Page 15: Controlling And Routing Audio Data

    OPERATING THE 3GSDI AUDIO DE-EMBEDDER Controlling and Routing Audio Data The following example illustrates how the RS-232 commands are used to route audio channels. Before getting started, see page 10 on configuring RS-232. The first step is to route which SDI audio input groups are to be routed to the source groups. Use the #sdi_in_grp_sw command to assign the specified SDI audio group to the desired source group. In this example, we will route SDI audio input group 1 (g1) to source group S2 and SDI audio input group 3 (g3) to source group S1: #sdi_in_grp_sw g1 s2 Error! G1 has been already assigned to S1 Here, we tried to route Group 1 to S2. However, by default, Group 1 is already routed to S1. We must first “un-route” Group 1 by routing an unused SDI audio input group to S1. Looking at the illustration, below, we can see that we can use either Group 3 or...
  • Page 16 OPERATING THE 3GSDI AUDIO DE-EMBEDDER Since Group 3 has been routed to S1, we can now route Group 1 to S2: #sdi_in_grp_sw g1 s2 IN GROUP G1 IS SWITCHED TO S2 GROUP Group 1 Group 2 SDI In Group 3 Group 4 Use the #ch_sw command to select which source audio channels (S1.1 ... S1.4, S2.1 ... S2.4) are routed to the output audio channels (O1.1 ... O1.4, O2.1 ... O2.4, and A.1 ... A.8). S1.1 O1.1 S1.2 O1.2 S1.3 O1.3 S1.4 O1.4 S2.1 O2.1 S2.2 O2.2 S2.3 O2.3...
  • Page 17 OPERATING THE 3GSDI AUDIO DE-EMBEDDER #ch_sw s1.1 o1.3 S1.1 IS SWITCHED INTO O1.3 OF SDI TRANSMITTER #ch_sw s1.2 a.2 S1.2 IS SWITCHED INTO a.2 OF SDI TRANSMITTER #ch_sw s1.4 o2.1 S1.4 IS SWITCHED INTO o2.1 OF SDI TRANSMITTER As mentioned on page 9, a single audio channel can be routed to multiple output channels or AES channels. In this example, S2.1 is routed to both A.1 and A.7: #ch_sw s2.1 a.1 S2.1 IS SWITCHED INTO a.1 OF SDI TRANSMITTER #ch_sw s2.1 a.7...

  • Page 18: Un-Routed Source And Aes Channels

    OPERATING THE 3GSDI AUDIO DE-EMBEDDER Un-routed Source and AES Channels Note, that in our example, that we did not route source channels S1.3 and S2.2. According to the block diagram on page 8, each source channel is routed to an associated output channel (S1.1 > O1.1, S1.2 > O1.2, etc). This is the default setting. Although we did not specify S1.1 to be routed to O1.1, the default routing state still applies (indicated by the dashed-lines). The same holds true for the default routing state for S1.4 > O1.4, S2.2 > O2.2, and S2.4 > O2.4. In addition, AES audio channels (A.1 ... A.8) will receive source channels S1.1 through S2.4, respectively. It is important to understand that since S1.3 was never routed in our example and because S1.1 was routed to O1.3, the default routing for S1.3 (S1.3 > O1.3 and S1.3 > A.3) cannot take place. S1.1 O1.1 S1.2 O1.2 S1.3 O1.3 S1.4 O1.4 S2.1 O2.1 S2.2 O2.2 S2.3 O2.3 S2.4 O2.4 A.1 A.2 A.3 (S1.4) A.4 (S2.1) A.5...
  • Page 19 OPERATING THE 3GSDI AUDIO DE-EMBEDDER The final step is to route the output channels to an SDI audio output group. In our example, we will route O1 to Group 4 and O2 to Group 1. #sdi_out_grp_sw o2 g1 Error! G1 has been already assigned to O1 As with the SDI audio input groups, O1 and O2 are routed to Group 1 and Group 2, respectively, by default. Therefore, O2 cannot be directly routed to Group 1. O2 must first be re-routed to another Group, even if it is temporary. Group 1 Group 2 SDI Out Group 3 Group 4 Audio Out 1 However, since part of our example involves routing O1 to Group 4, we can perform this task first by using the following command: #sdi_out_grp_sw o1 g4 OUT GROUP O1 IS SWITCHED TO G4 GROUP Group 1 Group 2 SDI Out...

  • Page 20: Audio Mapping Table

    OPERATING THE 3GSDI AUDIO DE-EMBEDDER Now that O1 has been routed to Group 4, we can now route O2 to Group 1: #sdi_out_grp_sw o2 g1 OUT GROUP O2 IS SWITCHED TO G1 GROUP Group 1 Group 2 SDI Out Group 3 Group 4 Audio Out 1 Audio Out 2 Audio Out 3 Audio Out 4 The numbers next to each arrow indicate the audio channel number. See the Audio Mapping table below for details. Since AES audio was routed in step 2 (page 12), we don’t have to worry about routing the audio at this stage. As mentioned earlier, any individual AES audio channels are combined as audio pairs (A.1 + A.2, A.3 + A.4, etc) and delivered to the Audio Out connectors: A.1 + A.2 are sent to Audio Out 1, A.3 + A.4 are sent to Audio Out 2, and so on. Audio Mapping The 3GSDI Audio De-Embedder can process a maximum of eight audio channels. The audio-mapping table is listed below.

  • Page 21: Rs-232 Serial Control

    RS-232 SERIAL CONTROL DE-9 Connector DE-9 DA-15 RS-232 Controller De-Embedder TXD TXD DB-25 Only TXD, RXD, and GND are used. DC-37 RS232 Settings Baud rate ........................115200 Data bits ..........................8 Parity bits ........................None DD-50 Stop bits ..........................1 Flow Control ........................None IMPORTANT: When sending RS-232 commands, a carriage return must be included at the end of the command. A space must be included between the command and the parameter.

  • Page 22: Rs-232 Commands

    RS-232 COMMANDS Function Description #ch_sw Routes the source / AES channels to the specified output channel #delay Applies audio delay to the specified audio channel #echo Enables / disables RS-232 local echo #fadefault Resets the 3GSDI Audio De-Embedder to factory default settings #help Lists all available RS-232 commands #mute Enables / disables muting for the specified audio channel Displays the specified test pattern #pattern #recall_preset Loads a stored preset #save_preset Saves the current configuration and routing state to a preset #sdi_in_grp_sw Routes the specified group to a 4-channel audio pair #sdi_out_grp_sw Routes the audio output channels to the specified group Displays the current audio channel to output routing state #show_ch_sw #show_delay Displays the current audio delay of each output channel #show_mute Displays the current muting status of all audio channels #show_sdi_in_grp Displays the current routing state for the SDI input group #show_sdi_out_grp Displays the current routing state for the SDI output group Displays the current routing, mute, and audio delay status.
  • Page 23 RS-232 COMMANDS #ch_sw Command The #ch_sw command switches the specified source audio channel to an output channel. Syntax: #ch_sw param1 param2 Parameters: param1 Source Audio Channel [S1.1 ... S1.4, S2.1 ... S2.4] param2 Output Audio Channel [O1.1 ... O1.4, O2.1 ... O2.4, A.1 ... A.8] Example: #ch_sw S1.4 O2.2 S1.1 IS SWITCHED INTO O2.2 OF SDI TRANSMITTER #delay Command The #delay command applies audio delay to the specified audio channel. Syntax: #delay param1 param2 Parameters: param1 Audio Channel...
  • Page 24 RS-232 COMMANDS #echo Command The #echo command enables / disables the local terminal echo. Syntax: #echo param1 Parameters: param1 Input Audio Channel Value Description Disable Enable Example: #echo 0 LOCAL ECHO: DISABLE #fadefault Command The #fadefault command resets the 3GSDI Audio De-Embedder to factory default settings. Syntax: #fadefault Parameters: None Example: #fadefault RESTORE TO FACTORY DEFAULT SETTINGS...
  • Page 25 RS-232 COMMANDS #help Command The #ch_sw command lists all available RS-232 commands. Syntax: #help [param1] Parameters: param1 Command name (optional) Examples: #help #sdi_in_grp_sw [#SDI_IN_GRP_SW] Routes specified (G)rout Input to specified (S)ource channel. Syntax: #SDI_IN_GRP_SW PARAM1 PARAM2 PARAM1 = <G1-G4> PARAM2 = <S1,S2> #help #SDI_IN_GRP_SW #SDI_OUT_GRP_SW #CH_SW #DELAY #MUTE #RECALL_PRESET #SAVE_PRESET #SHOW_SDI_OUT_GRP #SHOW_SDI_IN_GRP...
  • Page 26 RS-232 COMMANDS #mute Command The #mute command enables / disables the specified audio channel. Syntax: #mute param1 param2 Parameters: param1 Audio Channel [A.1 ... A.8, O1.1 ... O1.4, O2.1 ... O2.4,] param1 Status [0 ... 1] Value Meaning Un-muted Muted Note: If param1 = 0, then all channels are set to the state specified by param2. Examples: #mute o2.1 1 MUTE ON CHANNEL O2.1 IS ON #mute 0 1 MUTE ALL CHANNELS...
  • Page 27 RS-232 COMMANDS #pattern Command The #pattern command displays the specified test pattern. Syntax: #pattern param1 Parameters: param1 Pattern [0 ... 5] Pattern Description Disable Color bar Black Green Blue Example: #pattern 1 PATTERN GENERATOR: COLOR BAR...
  • Page 28 RS-232 COMMANDS #recall_preset Command The #recall_preset command loads a stored preset. Syntax: #recall_preset param1 Parameters: param1 Preset [1 ... 16] Example: #recall_preset 2 DEVICE STATUS RECALLED FROM MEMORY LOCATION 2 #save_preset Command The #save_preset command saves the current configuration and routing state to a preset. Syntax: #save_preset param1 Parameters: param1 Preset [1 ... 16] Example: #save_preset 3 CURRENT DEVICE STATUS SAVED TO MEMORY LOCATION 3...
  • Page 29 RS-232 COMMANDS #sdi_in_grp_sw Command The #sdi_in_grp_sw command switches SDI audio group to the specified source group. Syntax: #sdi_in_grp_sw param1 param2 Parameters: param1 SDI Audio Group [G1 ... G4] param2 Source Group [S1 ... S2] Example: #sdi_in_grp_sw g2 s2 IN GROUP G2 IS SWITCHED TO S2 GROUP #sdi_in_grp_sw Command The #sdi_in_grp_sw command switches SDI audio group to the specified source group. Syntax: #sdi_in_grp_sw param1 param2 Parameters: param1 SDI Audio Group [G1 ... G4] param2 Source Group...
  • Page 30 RS-232 COMMANDS #sdi_out_grp_sw Command The #sdi_out_grp_sw command routes the audio output channels to the specified output group. Syntax: #sdi_out_grp_sw param1 param2 Parameters: param1 Output Audio Group [O1 ... O2] param2 Output Group [G1 ... G4] Example: #sdi_out_grp_sw o2 g2 OUT GROUP O2 IS SWITCHED TO G2 GROUP...
  • Page 31 RS-232 COMMANDS #show_ch_sw Command The #show_ch_sw command displays the current audio channel routing state to each output channel. Syntax: #show_ch_sw Parameters: None Example: #show_ch_sw CURRENT CHANNEL ROUTING: S1.1 ->O1.1 S1.2 ->O1.2 S1.3 ->O1.3 S1.4 ->O1.4 S2.1 ->O2.1 S2.2 ->O2.2 S2.3 ->O2.3 S2.4 ->O2.4 S1.1 ->A.1 S1.2 ->A.2 S1.3 ->A.3 S1.4 ->A.4 S2.1 ->A.5 S2.2 ->A.6 S2.3 ->A.7 S2.4 ->A.8...
  • Page 32 RS-232 COMMANDS #show_delay Command The #show_delay command displays the current audio delay of each output channel. Syntax: #show_delay Parameters: None Example: #show_delay CURRENT AUDIO OUTPUT DELAY(MS) O1.1 0 O1.2 0 O1.3 0 O1.4 0 O2.1 50 O2.2 0 O2.3 0 O2.4 0 A.1 0 A.2 0 A.3 0 A.4 0 A.5 0 A.6 0 A.7 0 A.8 0...
  • Page 33 RS-232 COMMANDS #show_mute Command The #show_mute command displays the current muting status of all audio channels. Syntax: #show_mute Parameters: None Example: #show_mute CURRENT MUTE STATUS(1=ON, 0=OFF) A.1 = 1 A.2 = 1 A.3 = 1 A.4 = 1 A.5 = 1 A.6 = 1 A.7 = 1 A.8 = 1 O1.1 = 0 O1.2 = 0 O1.3 = 0 O1.4 = 0...
  • Page 34 RS-232 COMMANDS #show_sdi_in_grp Command The #show_sdi_in_grp command displays the current routing state for the SDI input groups. Syntax: #show_sdi_in_grp Parameters: None Example: #show_sdi_in_grp CURRENT SDI INPUT GROUP SWITCHING: G1 -> S1 G2 -> S2 #show_sdi_out_grp Command The #show_sdi_out_grp command displays the current routing state for the SDI output group. Syntax: #show_sdi_out_grp Parameters: None Example: #show_sdi_out_grp CURRENT SDI OUTPUT GROUP SWITCHING: O1 -> G1 O2 ->...
  • Page 35 RS-232 COMMANDS m Command The m command displays the current routing state, mute status, and audio delay status. The “#” (pound) symbol is not used when issuing this command. Syntax: O1.2 0 O1.3 0 Parameters: O1.4 0 None O2.1 50 O2.2 0 Example: O2.3 0 O2.4 0 A.1 0 CURRENT SDI INPUT GROUP SWITCHING: A.2 0 G1 -> S1 G2 -> S2 A.3 0 A.4 0 CURRENT CHANNEL ROUTING: S1.1 ->O1.1...

  • Page 36: Rack Mount Safety Information

    RACK MOUNT SAFETY INFORMATION Maximum recommended ambient temperature: 45 ˚C Increase the air flow to maintain the temperature inside the rack. Install the product evenly to avoid mechanical overload.

  • Page 37: Mounting Plate Installation

    MOUNTING PLATE INSTALLATION Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit. Repeat the procedure on the opposite side of the unit. Front of unit Rear of unit...

  • Page 38: Appendix

    APPENDIX Firmware Update Procedure Download the firmware update from the Support section of the Gefen Web site. Power-OFF the 3GSDI Audio De-Embedder. It is unnecessary to disconnect any SDI or audio cables from the 3GSDI Audio De-Embedder during the update process. IMPORTANT: The SDI Audio Embedder must be POWERED OFF before connecting the USB cable to the computer. Connect a USB cable between the computer and the 3GSDI Audio De-Embedder. Power-ON the 3GSDI Audio De-Embedder. Once the computer is able to connect to the 3GSDI Audio De-Embedder, a Removeable disk icon will be displayed Extract the firmware file from the .ZIP file and drag the .bin file to the Removable Disk. Disconnect the USB cable from the computer. The firmware update process is complete.

  • Page 39: Specifications

    SPECIFICATIONS Supported formats...........SDI (SMPTE 259M), EDSDI (SMPTE 344M), Single-Link HDSDI (SMPTE 292M), 3GSDI (SMPTE 424M) SDI Input Connector..................(1) BNC, female SDI Loop Out Connector................(1) BNC, female SDI Output Connector..................(1) BNC, female Digital Audio Output Connectors..............(4) BNC, female RS-232 Connector..................(1) DB-9, female Power On Indicator..................... (1) LED, blue 3GSDI Indicator....................(1) LED, blue Audio De-embedder Indicator................(1) LED, blue SDI/HDSDI Signal Indicator............(1) LED, bi-color (red/green) Power Supply..................100 - 240V AC (Internal) Power Consumption..................... 30 W (max.) AC Power Connector.................... (1) IEC type Dimensions (W x H x D)........ 16.8” x 1.75” x 7” (428mm x 44.5mm x 178mm) Shipping Weight....................6 lbs (2.7 kg)

  • Page 40: Warranty

    This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any particular purpose, all of which are expressly disclaimed. Proof of sale may be required in order to claim warranty. Customers outside the US are responsible for shipping charges to and from Gefen. Copper cables are limited to a 30 day warranty and cables must be in their original condition. The information in this manual has been carefully checked and is believed to be accurate. However, Gefen assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. The technical information contained herein regarding the features and specifications is subject to change without notice. For the latest warranty coverage information, refer to the Warranty and Return Policy under the Support section of the Gefen Web site at www.gefen.com. PRODUCT REGISTRATION Please register your product online by visiting the Register Product page under the Support section of the Gefen Web site.
  • Page 44 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefenpro.com support@gefenpro.com This product uses UL or CE listed power supplies.
