scope DataPage Lite Installation & User Manual

Desktop uhf radio paging system
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
DataP
DataP
DataP age Lite
DataP
DataP
Desktop UHF Radio Paging System
Installation & User Manual
Scope Communications UK Ltd, Quantum House, Steamer Quay, Totnes, Devon TQ9 5AL
Tel: +44 1803 860700 Fax: +44 1803 863716 Email: sales@scope-uk.com Web: www.scope-uk.com
age Lite
age Lite
age Lite
age Lite
DPLITE2

Advertisement

loading

Related Manuals for scope DataPage Lite

Summary of Contents for scope DataPage Lite

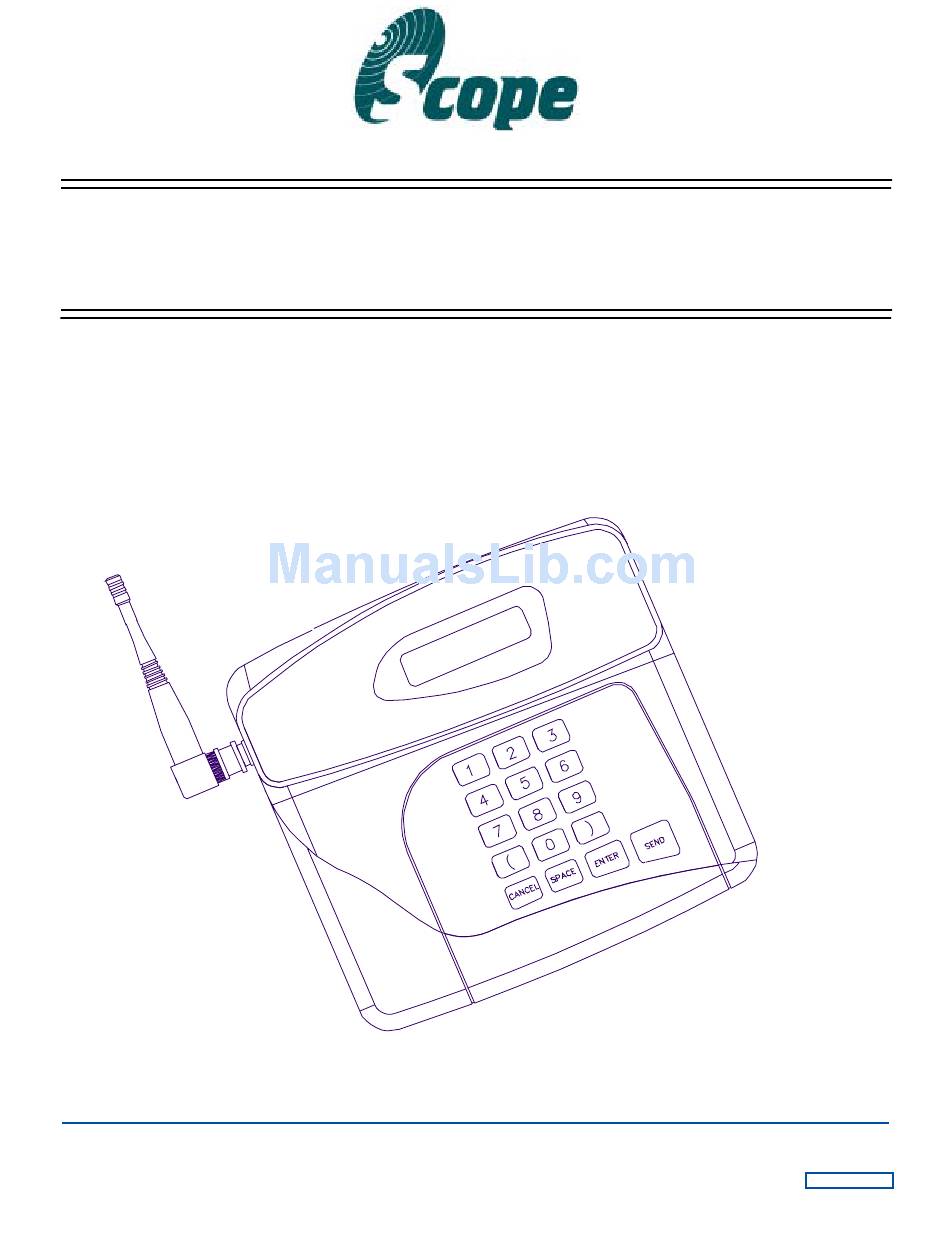

  • Page 1 Lite DataP DataP age Lite Desktop UHF Radio Paging System Installation & User Manual Scope Communications UK Ltd, Quantum House, Steamer Quay, Totnes, Devon TQ9 5AL Tel: +44 1803 860700 Fax: +44 1803 863716 Email: sales@scope-uk.com Web: www.scope-uk.com DPLITE2...
