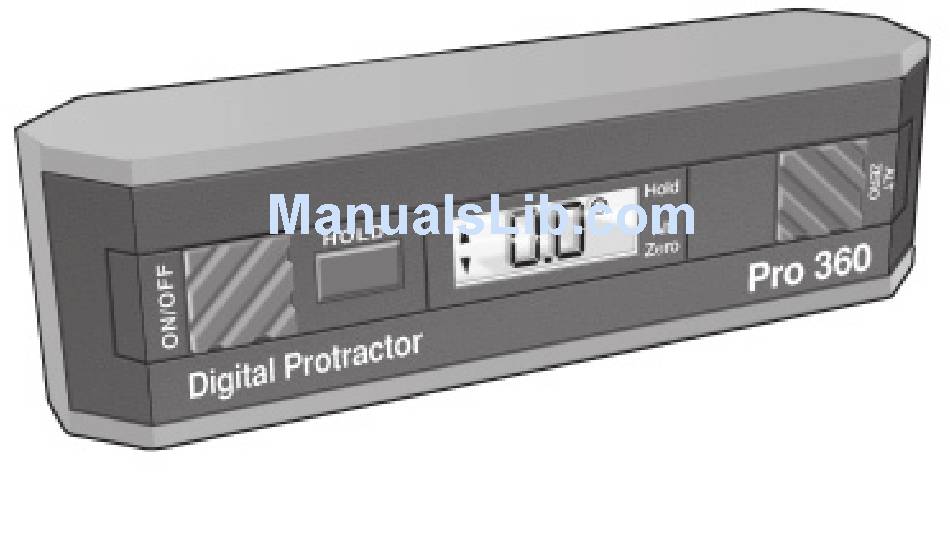

- Page 1 PRO 360 Owner's Manual...
- Page 2 Protractor's 360° range. The Pro 360 uses an innovative liquid filled angle sensor. As the protractor is moved, the liquid seeks a new position, resulting in changes in the electrical properties of the sensor. A microprocessor analyzes the changes and calculates the numbers seen on the display.
- Page 3 You can also "freeze" any displayed angle on the LCD by pushing the HOLD button. The 360° range of the unit is organized into four 90° quadrants for display purposes. In each, the Pro 360 achieves an accuracy of + 0.1° at level and plumb with a maximum error of + 0.2° in between.
- Page 4 Operating Instructions - Battery The Pro 360 is powered by a 9-volt battery. A new alkaline battery will provide 500 hours of use. A 9-volt lithium battery can be used for even longer life. To extend battery life, the Pro 360 shuts off automatically when left undisturbed for five minutes (to reactivate, push the ON/OFF button).
- Page 5 Between 45° and 89.9°, the arrow will point toward vertical (plumb). If you continue to rotate the Pro 360, the numbers on the Pro 360 display "flip over" when the unit is upside-down, allowing for easy reading in any position.
- Page 6 (temporarily "freezing" a reading on the display) If you need to take a measurement with the Pro 360 in an unreadable position, or if you need to temporarily lock in a reading while you record it, simply press the Hold button while measuring the angle.
- Page 7 ■ by "-0-". The Pro 360 will then display angles using the new reference. A flashing will appear in the lower right hand corner of the display as long as the Pro 360 is in ALT ZERO mode. Annunciator flashes in ALT ZERO mode Press ALT ZERO again to return to standard reference mode.
- Page 8 Recalibration Like all measurement instruments the Pro 360 must periodically be monitored for accuracy. The Pro 360 should be tested daily with the simple procedure outlined below. If it is found to ® be out of calibration, it is easily recalibrated on site using Superset - an eight-step procedure that realigns the unit through its entire 360°...
- Page 9 • Rotate the unit end-for-end so the display is facing away from you. Be sure to set the Pro 360 in exactly the same spot, and wait 10 seconds before reading the angle that's displayed. • Now roll the unit toward you so that the display is facing you, but the lettering on the face of the unit is upside down.
- Page 10 0.1° or more. ® How to Perform Superset Turn on the Pro 360 and place it on a flat surface. You can use any horizontal surface within ® 10° of level and any vertical surface within 10° of plumb to perform Superset .
- Page 11 ® Superset - Horizontal Settings [ 1] • Unit faces you and white lettering on face is right-side up • Align with an edge or line - wait 10 seconds • Press HOLD button until [ 1] appears [ 2] •...
- Page 12 [ 5] • Place unit against vertical surface so it faces you, the lettering on the face ("Pro 360, etc.) should read from bottom to top • Align with an edge or line - wait 10 seconds • Press HOLD button until [ 5] appears [ 6] •...
- Page 13 Maintenance The Pro 360 is designed to stand up to the rigors of industrial use. The following tips will ensure a long service life: • Use the "end-for-end" accuracy test daily to make sure the unit is in calibration. If it is not, recalibrate it immediately with Superset®.
- Page 14 Pro 360 - Specifications Weight ....325 g. (11.5 oz.) Range .... 360° (90° x 4) Repeatability ..+0.1° Resolution ..0.1° Cross Axis Error .. Minimal Accuracy ..+0.1° level +10°; plumb +10° +0.2° maximum error Power ....9 V. Alkaline Battery Temperature Battery Life ..
- Page 15 One-Year Limited Warranty If, within one year from the date of original purchase, the Pro 360 Digital Protractor fails to function because of defects in materials or workmanship, the manufacturer will, at its option, either repair or replace such components provided the original purchaser: 1.
