Sonance VISUAL PERFORMANCE SERIES Instruction Manual

I N S T R U C T I O N M A N U A L
V I S U A L P E R F O R M A N C E
S M A L L
R E C T A N G L E S P E A K E R S
Introduction
Thank you for purchasing Sonance Visual Per formance
Series Small rectangle speakers. When properly installed your
new speakers will give you years of entertainment pleasure.
S W :
AFETY ARNING
T F
HESE SPEAKERS HAVE AST
SPEAKER FROM FALLING OUT OF THE MOUNTING HOLE DURING THE
.
INSTALLATION PROCESS
T F
HE EDGES OF THE AST
U
SE CAUTION WHEN HANDLING THE SPEAKER

Box Contents

Each Sonance Visual Performance Series Small rectangle speaker
box contains (2) Visual Performance speakers, (2) paint plugs
(installed on the fronts of the speakers), (2) paintable grilles and
(1) mounting cut-out template.

Speaker Placement

Stereo Speaker Placement
• Place the left and right speakers on the same wall, 6 – 10 feet
(1.8m – 3m) apart and 3 – 4 feet (0.9m – 1.2m) from the floor
The main listening position should be as close to midway
between the speakers as possible.
• If the listeners will be standing, mount the speakers 5 feet
(1.5m) from the floor to keep them at the listeners' ear height.
• The main listening position should be 4 – 10 feet (1.2m – 3m)
away from the speakers.
• Pivoting the tweeter of each speaker directly towards the listen-
ing position will help maximize the stereo soundstage.

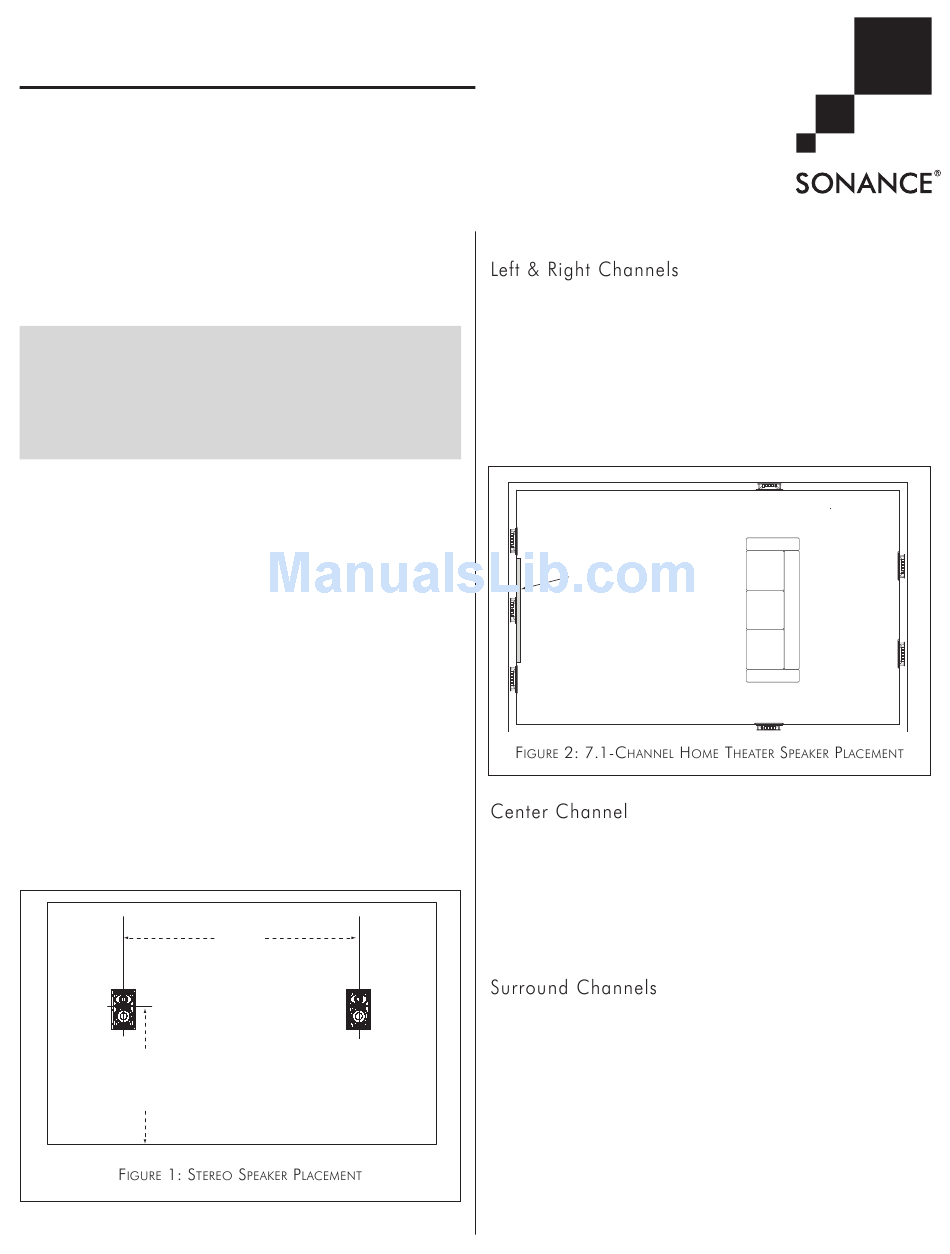

Use Figure 1 as a guide
5' (1.5m)
(Standing Listeners)
3' – 4' (0.9m – 1.2m)
(Seated Listeners)
S E R I E S
®
M
®
OUNT TABS THAT PREVENT
M
OUNT TABS ARE VERY
.
6' – 10'
(1.8m – 3m)
Apart
Home Theater Speaker Placement
®
Place the left & right speakers on either side of the video screen,
6 – 10 feet (1.8m – 3m) apart and 3 – 4 feet (0.9m – 1.2m) from
the floor (which corresponds to the height of your ears when
you're seated on a couch or chair). If possible, locate the left and
THE
right speakers at least 18 inches away from the side walls.
• The main listening position should be 8 – 12 feet (2.4m – 3.6m)
away from the speakers.
.
SHARP
Use Figure 2 as a guide.
Right
Front
Speaker
Video
Screen
Center
Speaker
Left
Front
Speaker
Locate the center speaker as close to the same height as the left
& right channel speakers as possible. If you must place the
center speaker above or below a video screen, we recommend
placing it no more than 2 feet (0.6m) above or below the center
of the left and right speakers. This will help maintain consistent
tonality between all three front channel speakers.
Use Figure 2 as a guide.
L e f t & R i g h t S u r r o u n d S p e a k e r s : Place the left and right
surround speakers directly to the sides of the listening position,
at least 5 feet (1.5m) from the floor.
Surround Back Speakers (7.1-Channel System): Place the
surround back speakers in the rear wall,
(0.9m – 1.8m) apart and at least 5 feet (1.5m) from the floor.
Use Figure 2 as a guide.
Right Surround
Speaker
Right
Surround Back
Speaker
Left
Surround Back
Speaker
Left Surround
Speaker
3 – 6 feet
