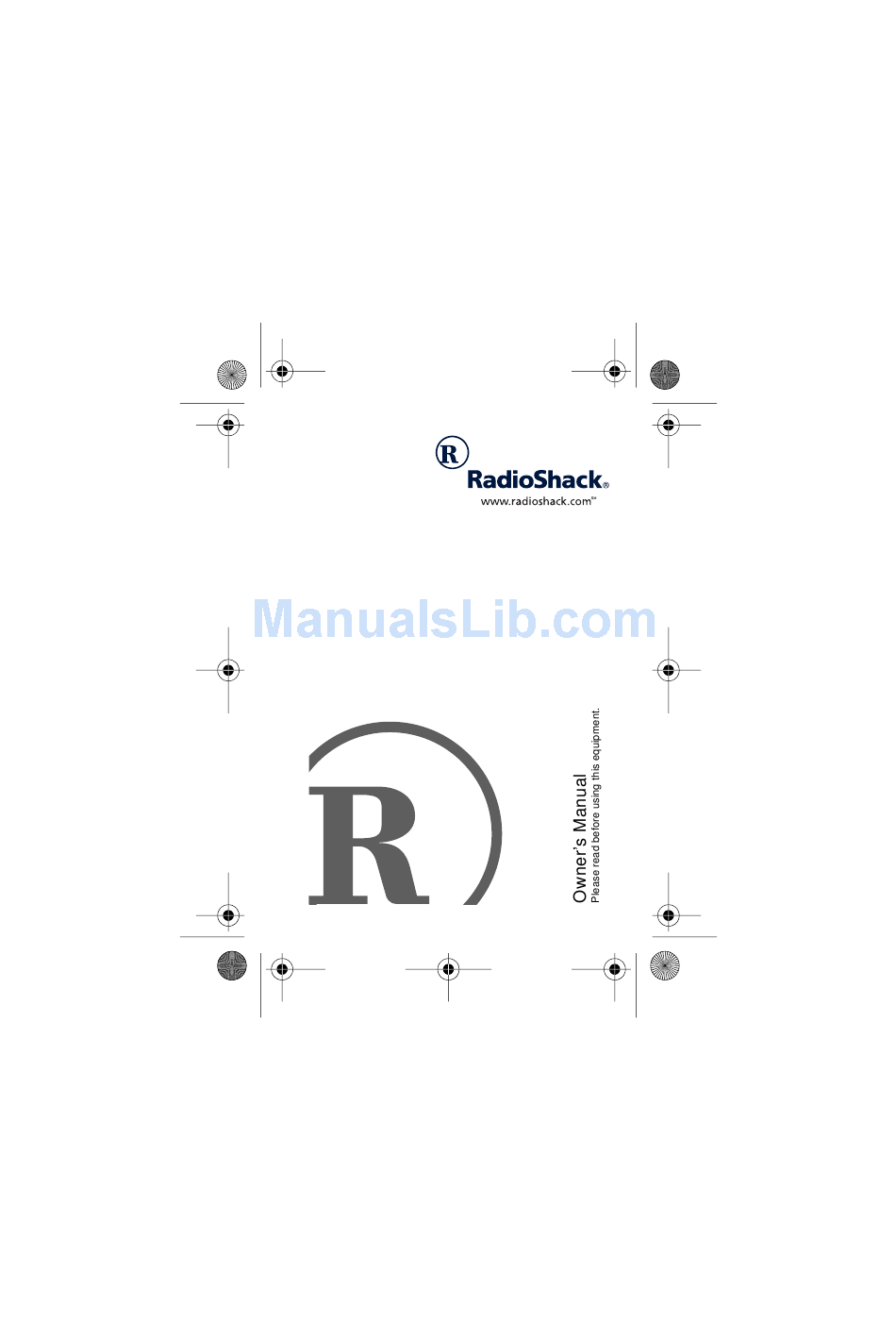

- Page 1 63-5017.fm Page 1 Wednesday, June 13, 2001 7:18 AM Multifunction LCD Stopwatch...
- Page 2 63-5017.fm Page 2 Wednesday, June 13, 2001 7:18 AM Features Your RadioShack Multifunction Stop- watch is much more than an ordinary tim- er. It is an exceptionally versatile instrument that performs many different functions. Caution: The stopwatch is water resis- tant to a depth of about 164 feet (50 meters), but it is not waterproof.
- Page 3 63-5017.fm Page 3 Wednesday, June 13, 2001 7:18 AM MODE — press to view the time, set an alarm, or run the stopwatch. LAP/RESET — press to confirm a selection, reset the START/STOP — timer, or split the press to run the timer.
- Page 4 63-5017.fm Page 4 Wednesday, June 13, 2001 7:18 AM Operation SETTING THE TIME/DATE Note: If you do not press a button for 30 seconds, the stopwatch exits setup and stores the new settings. 1. Repeatedly press until MODE then the time display appears. 2.
- Page 5 63-5017.fm Page 5 Wednesday, June 13, 2001 7:18 AM 5. Repeatedly press or hold down to select the desired START/STOP minutes. 6. Press . The hour digits flash. MODE 7. Repeatedly press or hold down to select the desired START/STOP hour.
- Page 6 63-5017.fm Page 6 Wednesday, June 13, 2001 7:18 AM Notes: • When setting the date, you can select the date to appear in either the M–D (month–date) or D–M (date–month) format. • There are always 29 days dis- played for the month of February. If there are only 28 days in Febru- ary for the current year, you must manually change the date from...
- Page 7 63-5017.fm Page 7 Wednesday, June 13, 2001 7:18 AM 9. Press at any time to con- LAP/RESET firm the settings and return to the time display. The stopwatch automatically displays the time. When you are using the daily alarm, the time reappears if no button is pressed for about 2 minutes.
- Page 8 63-5017.fm Page 8 Wednesday, June 13, 2001 7:18 AM 3. Repeatedly press or hold down to set the desired START/STOP minute, then press . The hour MODE digits flash. 4. Repeatedly press or hold down to set the desired hour. START/STOP Note: Be sure to select an AM or PM hour if the stopwatch is set to the 12-...
- Page 9 63-5017.fm Page 9 Wednesday, June 13, 2001 7:18 AM To check the set alarm time, repeatedly press until then the set alarm MODE time appears. TURNING THE DAILY/ HOURLY ALARM ON/OFF 1. Press until , then the set MODE alarm time appears. 2.
- Page 10 63-5017.fm Page 10 Wednesday, June 13, 2001 7:18 AM When the hourly chime is turned on, the stopwatch sounds two beeps at the be- ginning of each hour. USING THE STOPWATCH 1. From the time display, press MODE twice to view the stopwatch display. then the last reading of the stopwatch appear.
- Page 11 63-5017.fm Page 11 Wednesday, June 13, 2001 7:18 AM (even if the time or alarm time is dis- played). When the stopwatch reaches 59 minutes, 59.99 seconds, it restarts from zero. 4. To stop timing, press START/STOP disappears. Lap Timer The stopwatch is equipped with a split function for you to keep track of individual accumulated time.
- Page 12 63-5017.fm Page 12 Wednesday, June 13, 2001 7:18 AM 2. Press again to return to LAP/RESET the actively running view. The stop- watch beeps and disappears. Note: If you press while START/STOP appears, the timer stops and the to- tal accumulated time appears. Care Use and store the stopwatch only in nor- mal temperature environments.
-
Page 13: Installing The Battery
63-5017.fm Page 13 Wednesday, June 13, 2001 7:18 AM ranty. If your stopwatch is not performing as it should, take it to your local RadioShack store for assistance. INSTALLING THE BATTERY Your stopwatch requires one CR2032 3- volt lithium button-cell battery (supplied) for power. - Page 14 63-5017.fm Page 14 Wednesday, June 13, 2001 7:18 AM 1. With a Phillips screwdriver, remove the screws from the back of the stop- watch, then lift off the back. 2. Remove the screws on each side of the metal plate and lift it off. 3.
- Page 15 63-5017.fm Page 15 Wednesday, June 13, 2001 7:18 AM 6. Replace the back of the stopwatch and secure it with the screws. 7. Re-enter the correct time, date, month, and day of week. When the stopwatch stops operating properly or the display dims, replace the battery.
- Page 16 63-5017.fm Page 16 Wednesday, June 13, 2001 7:18 AM Limited One-Year Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers.
