CW-12 System™
Introduction: Thank you for purchasing the CW-12 System™ by
American DJ®. Please carefully read and understand the instruc-
tions in this manual thoroughly before attempting to operate this
unit. These instructions contain important safety information
regarding the use and maintenance of this unit. Please keep this
manual with the unit, for future reference.

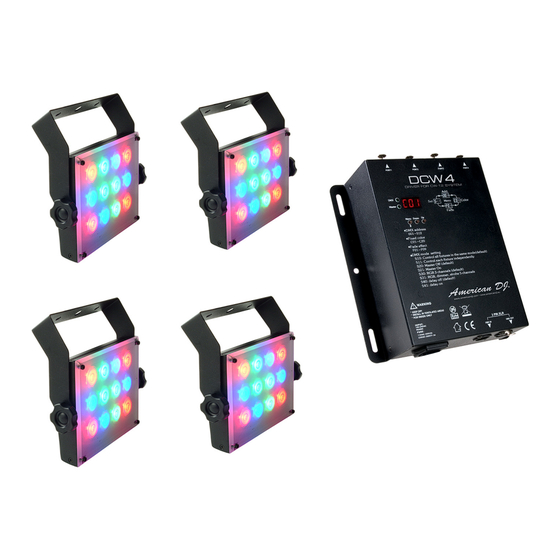

The CW-12 System™ consists of a DCW 4™ and four CW-12's™.
The DCW 4™ is used to control the American DJ® CW-12's™.
The CW-12 System™ comes with 9 fade programs, and 20 fixed
colors. The speed in which this unit fades is adjustable. You can
also connect the DCW 4™ to a DMX controller and design your
own programs. This system is great for retail stores, displays,
mood, architectural, interior decoration, and clubs.
Customer Support: American DJ® provides a toll free cus-
tomer support line, to provide set up help and to answer any
question should you encounter problems during your set up or
initial operation. You may also visit us on the web at www.ameri-
candj.com for any comments or suggestions. For service related
issue please contact American DJ®. Service Hours are Monday
through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2941
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire,
do not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do
not attempt any repairs yourself, doing so will void your manu-
factures warranty. In the unlikely event your unit may require ser-
vice please contact American DJ®.
PLEASE do not discard the shipping carton in the trash.
Please recycle when ever possible.
American DJ
- www.americandj.com - CW-12 System™ Instruction Manual Page 2
®
