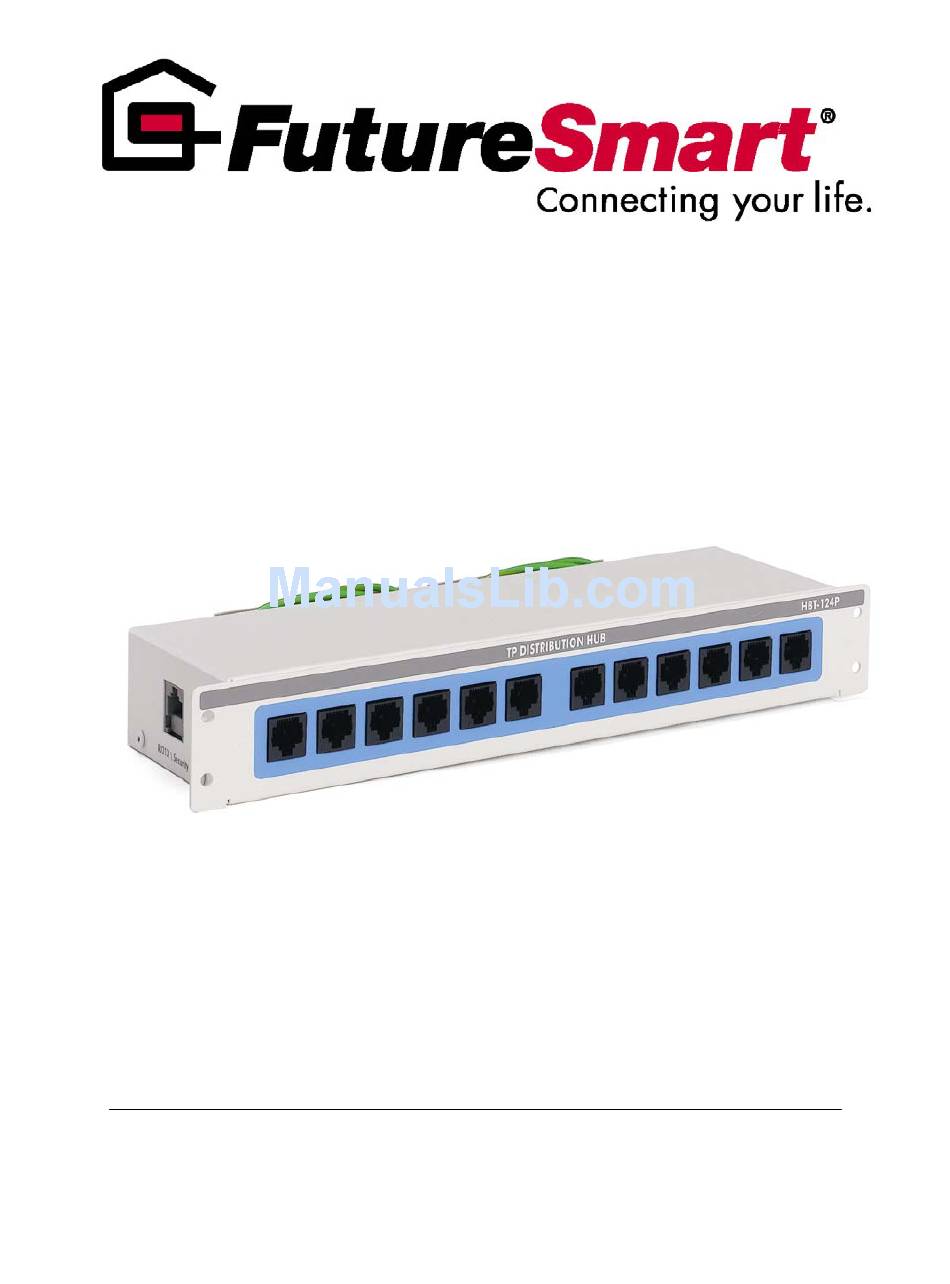

- Page 1 N S T A L L A T I O N U I D E H B T - 1 2 4 P Telephone Distribution Hub 12382 south gateway park place, 700, draper, utah 84020 1.801.617.3100 www.futuresmart.com...

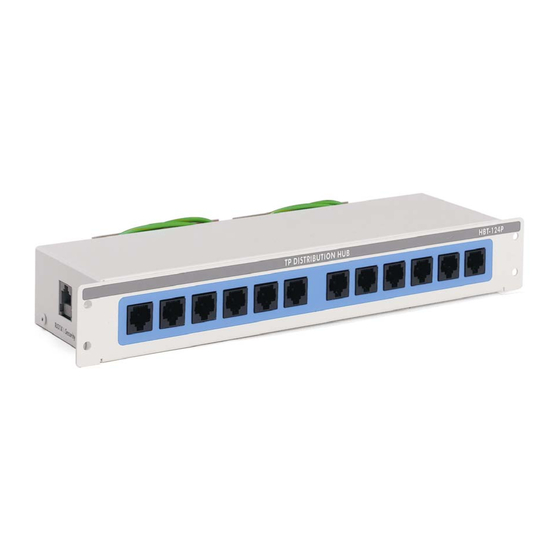

- Page 2 FutureSmart HBT-124P Telephone Distribution hub Installation Guide Description This FutureSmart 12 port, four line, RJ45 patch-style twisted pair hub is used to collect and distribute voice and data and is an interface between a Key System Unit. Features • 4 incoming CO lines •...
- Page 3 FutureSmart HBT-124P Telephone Distribution hub Installation Guide Termination 1 2 3 4 5 6 7 8 Telephone wire color code EIA/TIA568A: Pair #1: Blue: Tip white/blue, ring blue/white. Blue Brown Green Pair #2 Orange: Orange Tip white/orange, ring orange/white. T=Tip(White with color stripe)
-
Page 4: Troubleshooting
At the FutureSmart panel disconnect the jacks one at a time while monitoring the line for dial tone. To do this you will need to unplug the jumper wires one at a time from the module. When dial tone is heard you have isolated the problem to the last jack that was disconnected.
