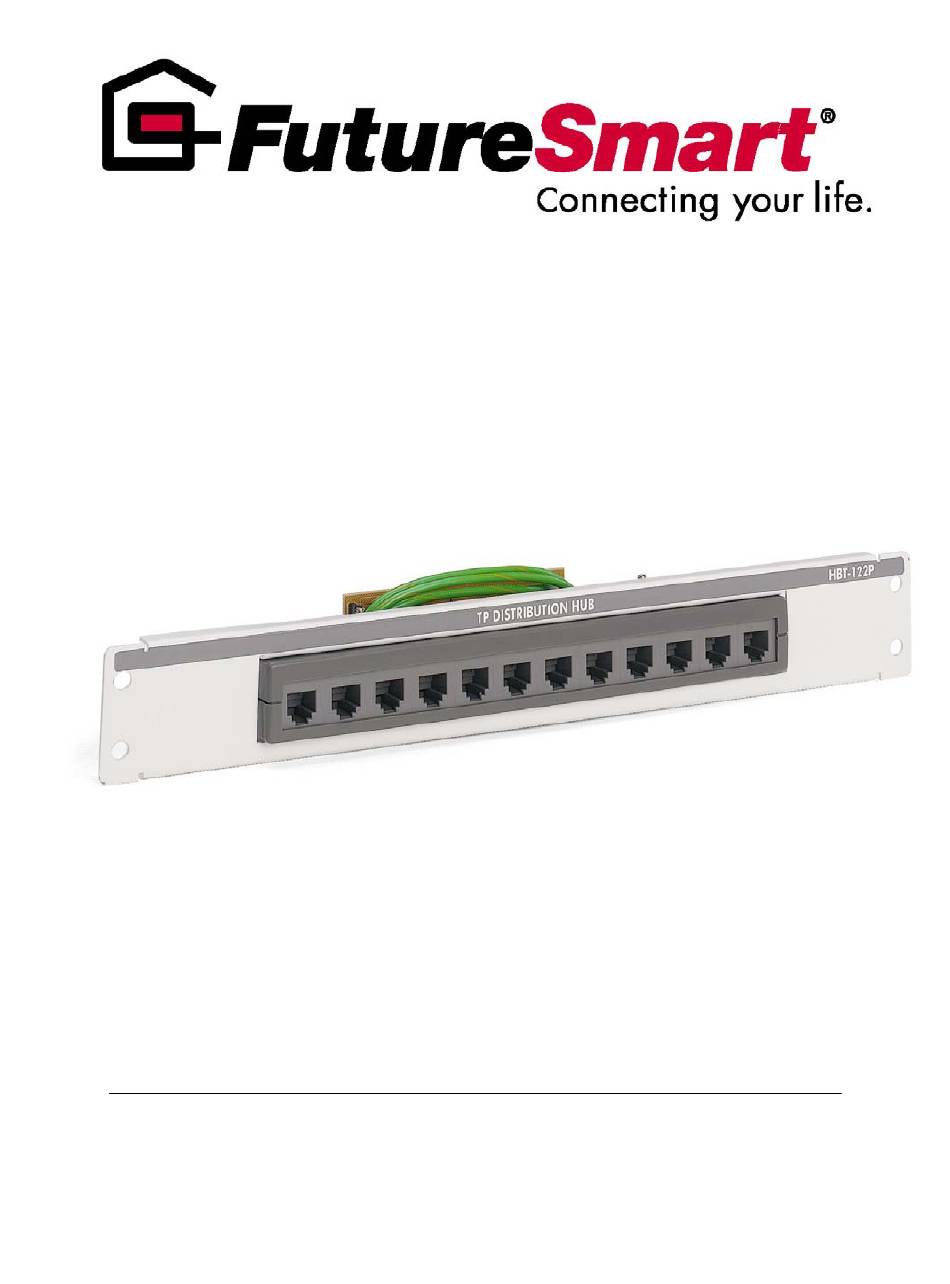

- Page 1 N S T A L L A T I O N U I D E H B T - 1 2 2 P Telephone Distribution Hub 12382 south gateway park place, 700, draper, utah 84020 1.801.617.3100 www.futuresmart.com...
- Page 2 FutureSmart HBT-122P Telephone Distribution hub Installation Guide Description This FutureSmart 12 port, two line, RJ11 patch-style twisted pair hub is used to collect and distribute voice and is an interface between a Key System Unit Features • 2 incomi ng CO lines •...
- Page 3 FutureSmart HBT-122P Telephone Distribution hub Installation Guide Termin tion Telephone wire color code EIA/TIA568A: 1 2 3 4 5 6 7 8 air #1: Blue: Tip white/blue, ring blue/white. Blue Brown Green air #2 Orange: Tip white/orange , ring orange/white.
- Page 4 FutureSmart HBT-122P Telephone Distribution hub Installation Guide Troubleshooting No Dial Tone: There are five p ossible causes. The line is not connected be tween the demarcation point and the panel. Connect the feed line from the demarcation point to the RJ45 jack on the modu le.
