Summary of Contents for Tribest Sedona SD-P9000

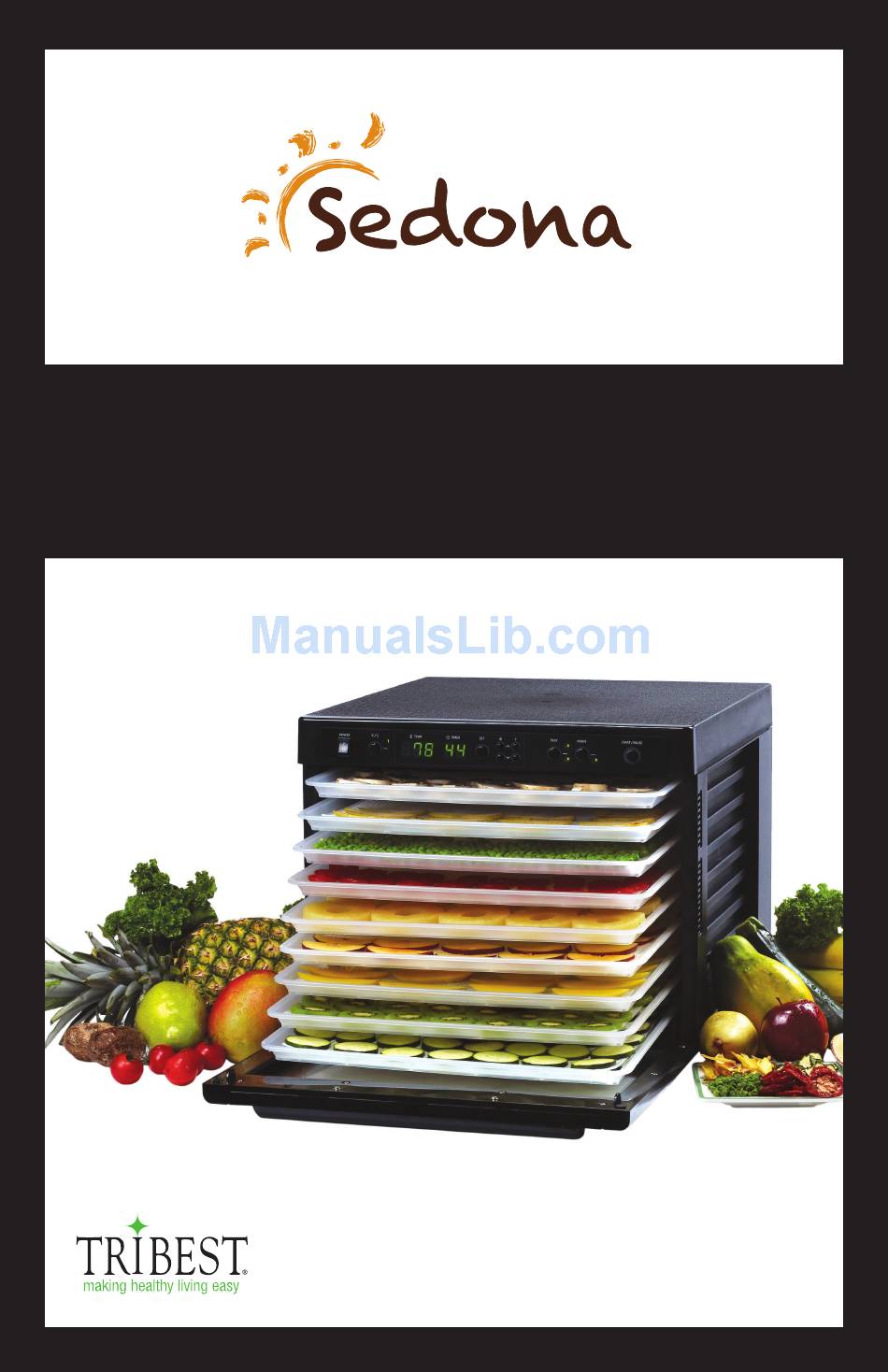

- Page 1 F O O D D E H Y D R A T O R S EDO NA D EH YD R AT O R OPERATION MANUAL MODEL: SD-P9000...
-
Page 2: Introduction
INTRODUCTION Congratulations! You are now the proud owner of a Sedona Food Dehydrator by Tribest. With Sedona, you can accurately and efficiently dehydrate your favorite food and vegetables utiliz- ing the latest in digital dehydration technology. From, apples to bananas, to mushrooms and your favorite jerky recipes, you can set Sedona to meet all your dehydrating needs. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction........................2 Important Safety Precautions..................4 Warning..........................5 Parts List........................6 Operation........................7 Set-Up..........................8 Cleaning and Maintenance...................11 Troubleshooting......................12 Warranty........................13 Registration Form......................15 When You Need Service....................17 Recipe Index.........................18 Product Information.....................24... -
Page 4: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS When using electrical appliances, basic safety precautions should always be followed including the followings: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock do not immerse cord, plugs, Dehydrator in water or other liquid. -
Page 5: Warning
WARNING To avoid any possible damage or injury, please follow the basic safety tips: • Do not clean the Sedona with water. Always use a wet towel to clean the Sedona. • Never use Sedona in a humid room such as a bathroom. Use Sedona in a well venti- lated setting. -
Page 6: Parts List
SEDONA DEHYDRATOR PARTS Main Body Package includes: 1 Main Body 9 BPA Free Plastic Open Tray 1 BPA Free Plastic Closed Tray 9 BPA Free Plastic Mesh Tray Screens 1 Detachable Power Cord Power Cord Open Tray Closed Tray Mesh Tray Screen... -
Page 7: Operation
OPERATION Please follow below instructions for your safety and to prolong the lifespan of Sedona. 1. Always keep the Sedona on a leveled surface. • Keep a minimum distance of 10 Cm from other appliances or furniture. 2. Place food on each tray as the instruction manual book explains. •... -
Page 8: Set-Up
SET-UP Function of switch and buttons: 1. POWER Switch is to turn on or off the Sedona. 2. °F/°C button will enable you to select a temperature display mode (Celsius or Fahrenheit). Select which temperature mode you want to display by pressing °F/°C button. The basic setting of Sedona is Celsius when out of the factory. - Page 9 (2) Press the SET button twice - While the TIMER window flashes, set the desired hours by using the 10 or 1 buttons to select the desired timer setting, then press the SET button after you have set the timer to your desired setting to finalize your choice. More Tips: •...
- Page 10 • The basic setting of Sedona is daytime mode, and it will go back to daytime mode when you turn the switch off. 9. START/PAUSE button is to restart or pause the operation. While Sedona is in operation, if you open the door, the power supply to both the heating coil and the fan will be cut-off. Sedona will automatically restart as soon as the door is closed.
-
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE 1. Clean the trays and tray sheets with mild detergent under warm water after each use. The trays are NOT dishwasher safe. 2. To clean the main body, first unplug the machine and then clean with a wet towel. Do not rinse the Sedona with water. -
Page 12: Troubleshooting
TROUBLESHOOTING Symptom Probable Cause Remedy Machine does not turn on • the plug is incorrectly posi- • plug in again tioned in the electrical outlet • turn the switch on • the machine switch is not on Display lights are not on •... -
Page 13: Warranty
WARRANTY We warrant to you, the “end-user” who has properly registered after purchasing the Sedona Dehydrator (hereinafter referred to as “SD”) for a valuable consideration, that the Plastic Body, Fan Motor and the Heating Coil of this SD will be free from defects in materials and workmanship for a period of five (5) years from the date of purchase. - Page 14 TO THE EXTENT ALLOWED BY LOCAL LAW, THE REMEDIES IN THIS WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
- Page 15 Sedona Dehydrator Registration ® TRIBEST CORP. P.O. Box 4089 Cerritos, CA 90703 U.S.A. • Do you have Internet Service? • Have you ever purchased any products through Internet Stores? • Do you use e-mail at work? E-mail Address: ______________________________ •...
-
Page 16: Registration Form
put glue here to seal SEDONA DEHYDRATOR ® REGISTRATION FORM PLEASE FILL OUT AND RETURN WITHIN THE NEXT IO DAYS Please write all information legibly! 1. Customer Information c Mr. c Mrs. c Ms. c Miss First Name Initial Last Name Street Apt. -
Page 17: When You Need Service
SERVICE CENTER **For all service inquiries, please contact the Warranty Service Center for a Return Merchandise Authorization (RMA) number and proper routing instructions. Warranty Service Center Tribest Corporation 1143 N. Patt St. Anaheim, CA 92801 TEL: 888-254-7336, FAX: 714-879-7140 If you need service: •... -
Page 18: Recipe Index
RECIPE INDEX *Recipes by Jenny Ross, owner and executive chef of 118 Degrees, Costa Mesa, CA. Learn more about Jenny Ross by visiting www.shop118degrees.com Wraps..........................19 Sprouted Grain Tortilla Basic Squash Flax Tortilla Crackers........................20 Garden Crackers Basic Flax Crackers Marinataed Vegetables....................21 Desserts........................22 Sweet Sedona Cookies Easy Fudge Brownies... - Page 19 Wraps *Sprouted Grain Tortilla 2 Cups Sprouted Wheat Berry, Rye or Kamut 1 Cup Ground Golden Flax Seed 1 Zucchini 2 Tbsp. Chili Powder 1 Tsp. Sea Salt 2 Cups Water In a high powered blender combine first the sprouted grains, zucchini, spices and then ground flax seed.
- Page 20 Crackers *Garden Crackers 4 Cups Ground Golden Flax Seeds 2 Cups Carrot Juice (and leftover pulp) 2 Cups Water 4 Tomatos 1 Clove Garlic 1 Stem Green Onion 1 Tbsp. Dried Dill or Italian Seasoning 1 Tsp. Sea Salt In a high powered blender combine the carrot juice, water, tomato, garlic green onion, sea salt and dried seasonings until a puree forms.
- Page 21 Marinated Vegetables *Marinated Vegetables Vegetables are quite nice in the dehydrator in fact just coating vegetables like squash, red bell peppers and mushrooms with a little bit of high quality extra virgin olive oil and dried spices will yield a nice soft vegetable within an hour with an enhanced flavor profile. Try the marinade and vegetable mix below to get an idea of what is possible in your own kitchen.
- Page 22 Dessert *Cookies - Sweet Sedona’s 4 Cups Macadamia Nuts or Cashews 1 Cup Raw Cacao (optional) 2/3 Cup Raw Honey or Agave Nectar 1 Tsp. Cinnamon 1 Tsp. Sea Salt 1 Dash Nutmeg For Garnish – Coconut Shreds, Soaked Gogi Berries or Hemp Seeds In a food processor add the nuts, cacao, cinnamon, nutmeg, and sea salt.
- Page 23 To prepare the brownie: In a food processor, process nuts to a meal being careful not to over process into a butter. Then add to the mixture the cacao and spices and pulse to combine. Turn on the processor all the way and add the desired sweetener from the top while pro- cessing until a dough ball forms.
-
Page 24: Product Information
PRODUCT INFORMATION Product name: Sedona Dehydrator Power: 120Vac, 60Hz, 600W for the USA and Canada 220-240Vac, 50/60Hz, 550-650W for European and Asian coun- tries Unit Dimensions: 433mm(W) x 370mm(H) x 500mm(D) 17.0in(W) x 14.6in(H) x 19.7in(D) - Page 28 Tribest Corporation P.O. Box 4089 Cerritos, CA 90703 toll free: 888-254-7336 | fax: 714-879-7140 www.tribest.com | service@tribest.com...
Need help?
Do you have a question about the Sedona SD-P9000 and is the answer not in the manual?
Questions and answers

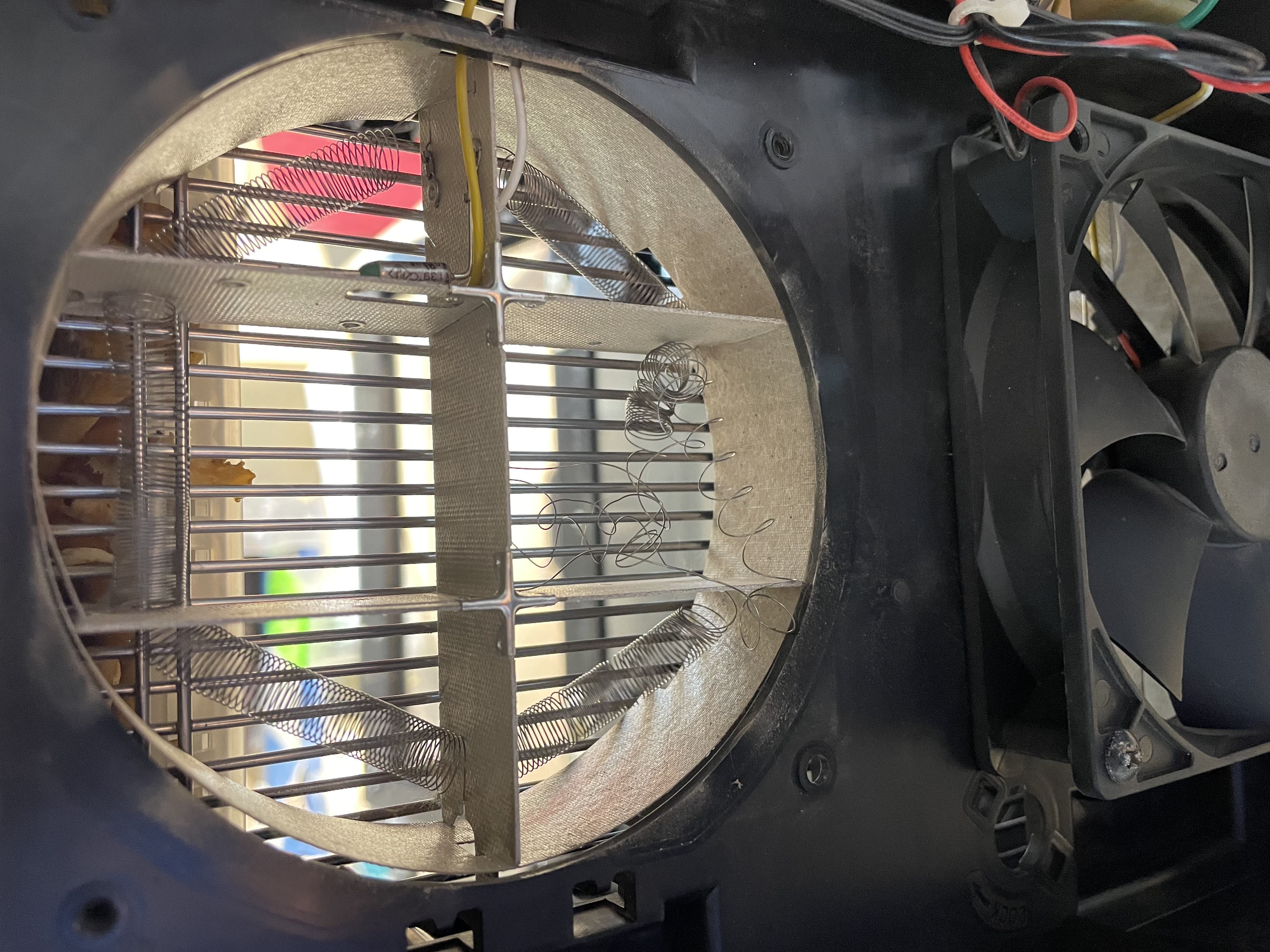

Hello,I am looking for spare parts for the Sedona SD-P9000 food dehydrator, manufactured in October 2013. Currently, I need the following components:• 2 heating coils • 1 transformer unit (labeled SDT-23 20139 DH) I have attached photos of the faulty components for easier identification.I would appreciate it if you could let me know whether these parts are available, their prices, and whether shipping to Lithuania is possible.I look forward to your reply.Best regards, Ramūnas
