Summary of Contents for Tribest Green Star Elite GSE-5050

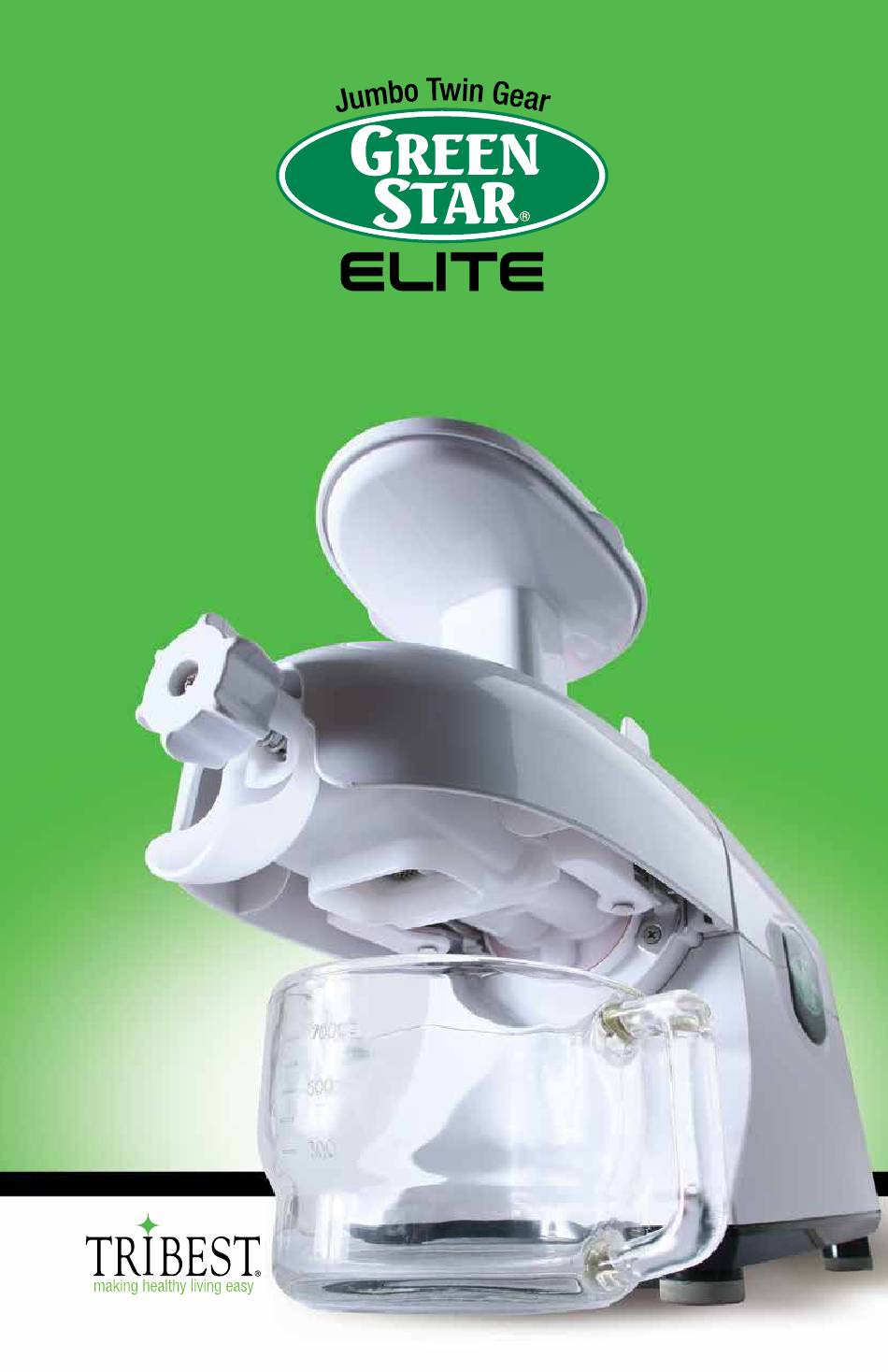

- Page 1 Juice Extractor OperatiOn Manual SAVE THIS MANUAL KEEP IT HANDY FOR QUICK REFERENCE AND PROPER CARE...
-
Page 2: Welcome
Welcome Congratulations! You are now the proud owner of a Greenstar Elite Juice Extractor - the ® next generation of the revolutionary Greenstar Juice Extractor. With Greenstar Elite, you ® ® can juice a wider variety of fruits and vegetables - from carrots and apples, to wheatgrass and pine needles, all without having to stop and change any parts! You can also use your Greenstar Elite Juice Extractor to make other delicious foods such as baby foods, bread-... -
Page 3: Table Of Contents
Table of Contents • Welcome........................2 • Important Safeguard....................4 • Important Safety Precautions..................5 • Greenstar Elite Juice Extractor Parts................6 ® A. Juicer Diagram B. Standard Parts • Setting Up Your Greenstar Elite.................8 ® A. Assembly B. Disassembly C. Using the Screens D. -
Page 4: Important Safeguard
Important Safeguard When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions carefully before operating. 2. To protect against risk of electric shock, do not put the Main Body in water or any other liquid. -
Page 5: Important Safety Precautions
Important Safety Precautions • Very important! When combining the Twin Gears for assembly, make sure to align the locating dots marked on the surface of the gears. • 10 minutes of rest after 30 minutes of operation! When operating your Greenstar Elite Juice Extractor ®... -
Page 6: Juicer Diagram
Greenstar Elite Juice Extractor Parts ® Juicer Diagram Latches Safety Tray Lid Power Switch Safety Tray Safety Hood Power Indicator Light Handle Twin Gear: Drive Gear Twin Gear: Free Wheel Gear Juicing Knob Pulp Outlet Power Cord Outlet Casing Drive Shaft Juice Outlet Screen Twin Gear Housing... -
Page 7: Standard Parts
Standard Parts Make sure to unpack your Greenstar Elite and make sure that all parts are there. If any ® parts are missing, please call your nearest authorized service center immediately. It’s a good idea to disassemble and assemble the machine a few times to familiarize yourself with the machine before juicing. -
Page 8: Assembly
Setting Up Your Greenstar Elite ® A. Assembly ® IMPORTANT: Make sure your Greenstar Elite is unplugged from the electrical outlet before assembly. 1. Slide the Twin Gear 4. Slide the Outlet Casing Housing onto the Main Body over the screen. and push it all the way back onto the Main Body until it fits snugly in place. -
Page 9: Disassembly
B. Disassembly IMPORTANT: Make sure your juicer is switched off before disassembly 8. Remove the Twin Gear 1. Unplug the Power Cord Housing by holding the feed- from your electrical outlet, ing chute and sliding it away and then remove the power from the main body. -
Page 10: Using The Screens
Setting Up Your Greenstar Elite ® C. Using the Screens A few screens are provided to increase the versatility of your Greenstar Elite. ® 1. Fine Screen: The fine screen is used to make vegetable and fruit juices with as little pulp as possible in the juice. This screen is suitable for most types of vegetable and fruit juices, including carrots and other root vegetables;... -
Page 11: Using The Plungers
• TIGHTEN THE KNOB: to extract maximum juice from firmer vegetables and fruits. • LOOSEN THE KNOB: to extract juice from softer vegetables and fruits. Also loosen the knob for wheatgrass and leafy vegetables for easier pulp ejection. b. With the Homogenizing Screen: Tighten the juicing knob all the way when using the homogenizing screen to make sure the processed ingredients do not get pushed out through the pulp outlet. -
Page 12: Making Juices
Using Your Greenstar Elite ® A. Making Juices 1. Assemble your Greenstar Elite with the Fine Screen or Coarse Screen and the ® Juicing Knob. 2. Place the Drip Tray on the counter underneath the Juice Outlet and put the Juice Pitcher on top of the drip tray. - Page 13 Preparation: Separate into individual stalks and cut if necessary. Fibrous Celery Juicing Knob: Tighten the knob completely. Stalks Juicing Procedure: Feed the stalks into the feeding chute, one stalk at a time, with the leafy side up. Press down with the wooden or plastic plunger.
-
Page 14: Homogenizing: Making Pâtés And Basic Food Processing
Using Your Greenstar Elite ® Juice If you are making juice cocktails of various different vegetable and fruit combinations, prepare the produce per the instructions on the Cocktails previous page. Feed the produce into the feeding chute, alternating between hard and softer produce. For example, when making a carrot/wheatgrass combination, juice a piece of carrot, then a handful of wheatgrass, then another piece of carrot, etc. -
Page 15: Making Pasta (Gse-5300 Model Only)
D. Making Pasta (GSE-5300 Model Only) How to assemble the Pasta Maker Set onto your machine. Instructions: 1. Attach the Twin Gear Housing to the juicer body 2. Remove the Jumbo Twin Gears from the machine and insert the Pasta Screw onto the motor drive shaft (left side as you are looking at the front of the body.) 3. -
Page 16: Cleaning And Maintenance
Cleaning and Maintenance Cleaning Your Greenstar Elite ® Keeping your Greenstar Elite clean is extremely important for both your health and the ® peak performance of the machine. We recommend cleaning the juicer immediately after each use, before food particles have a chance to dry. Since Greenstar Elite extracts ®... - Page 17 Cleaning and Maintenance Stains: Colored stains on parts are signs of a well-used juicer and may be difficult to remove. Many people leave the colored stains as a ‘badge of honor.’ But if you would like to try to remove the color stains, try using a 25%-50% white vinegar/water solution and soak the parts overnight and then scrub with the cleaning brush.
-
Page 18: Troubleshooting
Troubleshooting NOISES: Even though the Greenstar Elite Juice Extractor is very quiet, some noises are ® normal during operation. If you are unsure whether the noises you are hearing are normal: 1. Squeaking: Your Greenstar Elite may make a squeaking noise during operation. To check ®... -
Page 19: Warranty
Warranty (Please read carefully) We warrant to you, the end-user customer who has properly registered after purchasing the ® Greenstar Elite Juice Extractor (hereinafter referred to as “GSE”) for a valuable consideration, that the plastic parts, motor and the Twin Gears of this GSE will be free from defects in materials and workmanship for a period of twelve (12) years from the date of purchase. -
Page 20: When You Need Service
For all service inquiries, please first contact the Main Service Center for a return merchan- dise authorization (RMA) number and proper routing instructions Main Service Center Tribest Corporation 1143 N. Patt St., Anaheim, CA 92801 TEL: 888-254-7336, FAX: 714-879-7140 If you need service: •... - Page 21 Greenstar Elite ® Juicer Registration TRIBEST CORP. P.O. Box 4089 Cerritos, CA 90703 U.S.A.
-
Page 22: Warranty Registration Card
put glue here to seal GREENSTAR ELITE ® REGISTRATION FORM PLEASE FILL OUT AND RETURN WITHIN THE NEXT IO DAYS Please write all information legibly! 1. Customer Information c Mr. c Mrs. c Ms. c Miss First Name Initial Last Name Street Apt. -
Page 23: Notes
Notes... -
Page 24: Recipe Index
Recipe Index • JUICES AND DRINKS....................25 Citrus Blend Apple Lemonade Wheatgrass Delight Ambrosia Nectar Watermelon Quench Mellow Melon Punch Snappy Apple Dr. Walker’s Choice (#61) Green Tang Oriental Express • RYE BREAD STICKS AND MOCHI (RICE CAKE)............29 • PÂTÉ AND CROQUETTE....................30 Cashew Curry Croquettes Pecan Pleasers •... - Page 25 Juice and Drinks MACHINE SETUP FOR ALL JUICES AND DRINK RECIPES: Elite for juicing with the Fine Screen and the Juicing Knob. 1. Assemble your Greenstar ® 2. Put glass Juice Pitcher under the Juice Outlet. 3. Put container under the Pulp Outlet to catch pulp. Notice: When juicing a combination of hard, fibrous vegetables such as carrots or beets, with leafy greens, such as herbs or grasses, be sure to push any remaining bits of the hard vegetables completely through the Feeding Chute before introducing any of the leafy...
- Page 26 Juice and Drinks AMBROSIA NECTAR 2 BUNCHES GRAPES 3 APPLES (FUJI, GRANNY SMITH, OR PIPPIN - cut into 6 pieces) 1 KIWI (peeled and cut into 2 pieces) 1 SLICE HONEYDEW (cut into cubes) 1 SLICE PINEAPPLE (cut into cubes) 1 WHOLE LEMON (peeled and cut into 4 pieces) 1/2 CUP CRANBERRIES 1.
- Page 27 Juice and Drinks MELLOW MELON PUNCH 1/4 CANTALOUPE (cut into cubes) 1/4 HONEY DEW (cut into cubes) 2 SLICES WATERMELON (cut into cubes) Juice all together and enjoy SNAPPY APPLE 7 APPLES (FUJI, GRANNY SMITH, YELLOW DELICIOUS - cut into 4 to 6 pieces) 1/2 JALAPEÑO PEPPER 1/4 LIME 1 KIWI (peeled and cut into 2 pieces)
- Page 28 Juice and Drinks GREEN TANG 2 PINEAPPLE WEDGES (cut into smaller pieces) 1 SPRIG MINT 3 HANDFULS WHEATGRASS 1/4 LEMON 1 SLICE GINGER FOR FLAVOR 1. Juice wheatgrass 2. Juice mint 3. Juice lemon 4. Juice pineapple cubes Note: A Pineapple wedge is a 1” round slice of whole pineapple cut into quarters (4 pieces). If pineapple is not organically grown, remove the outer skin before juicing.
- Page 29 Breadsticks and Mochi (Rice Cake) MACHINE SETUP: Elite with the Breadstick Screen and the Breadstick Knob. 1. Assemble your Greenstar ® 2. Put a plate under the Breadstick Knob. RYE BREADSTICKS 2 CUPS RYE (soaked overnight) 1/2 CUP SUNFLOWER SEEDS (soaked overnight) 2 TBSP CARAWAY SEED 1/2 TSP SEA SALT 1.
- Page 30 Pâté and Croquettes MACHINE SETUP: Elite using the Homogenizing (Open) Screen and the 1. Assemble your Greenstar ® Juicing Knob. 2. Place a bowl under the Juice Outlet. CASHEW-CURRY CROQUETTES 2 CUPS CASHEWS 1 CUPS SPROUTED WHEAT (soak for 12 hours and let small tips emerge by sprouting) 3 TBSP CURRY PASTE (available from gourmet food stores) 1 TSP VEGE-SALT TO TASTE 1.
- Page 31 Soup MACHINE SETUP: A. To Juice Carrots, Lemon, And Apple 1. Assemble your Greenstar Elite with the Fine Screen and the Juicing Knob securely ® fastened. 2. Place the Juice Pitcher underneath the Juice Outlet, and a bowl under the Pulp Outlet.
- Page 32 Desserts MACHINE SETUP: Elite with the Homogenizing (Open) Screen and securely 1. Assemble your Greenstar ® fasten the Juicing Knob. 2. Place a bowl under the Juice Outlet. CASHEW POPPY 1 CUP SPROUTED WHEAT BERRIES (soak for 12 hours until small sprout tips emerge) 1/4 CUP POPPY SEEDS 1/4 CUP SOAKED SUNFLOWER SEEDS 1 CUP CASHEWS...
-
Page 33: Product Information
Product Information PRODUCT STANDARD ITEM VEGETABLE JUICER MODEL GREENSTAR ELITE (GSE-5000) ® ELECTRICITY RATING USA Models: 120V, 60 Hz, 200W EUROPE/ASIA: 220-240V, 50-60Hz, 200W SIZE 18.25” x 6.88” x 12.50” (464 mm x 175 mm x 318 mm) WEIGHT 26.6 lbs (12.07 kg) - Page 34 Tribest Corporation 1143 N. Patt Street, Anaheim, CA 92801 (toll free) 888-254-7336 (fax) 714-879-7140 www.tribest.com (email) service@tribest.com v20131105 / This version of the manual supersedes all previous versions of the manual / © 2013 Tribest Corporation...
