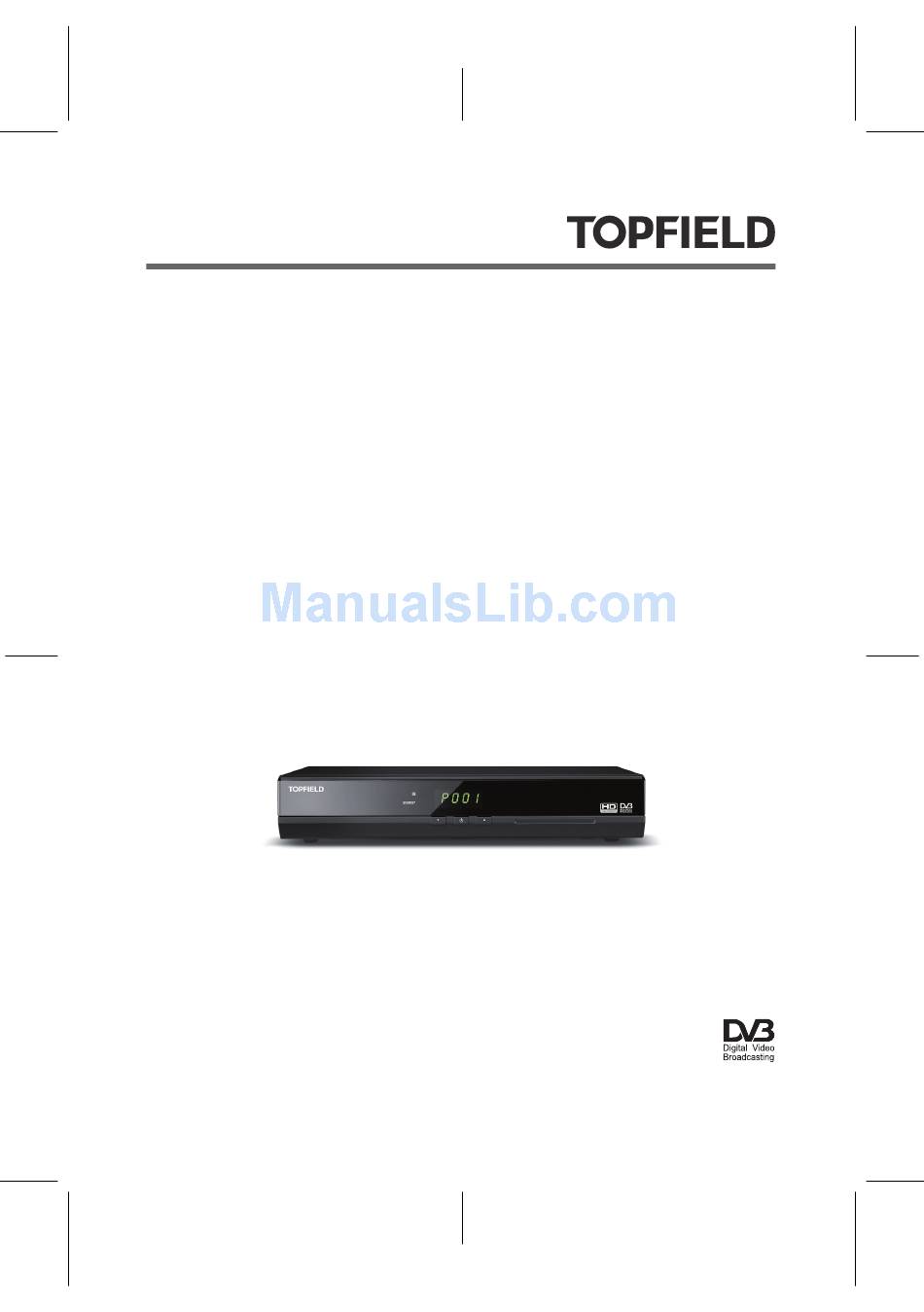

Page 1: User Manual
TF-T5000HD PVR User Manual High Definition Digital Terrestrial Receiver Personal Video Recorder Default PIN: 2010 Full Guide is available at http://www.i-topfield.com... - Page 3 Precautions • Clean with a dry cloth only. • Do not block any of the ventilation openings. • When placed in a cabinet, make sure there is a minimum space of 10 centimetres around it. • Do not install near any heat sources or in direct sunlight as this will impair cooling.
-
Page 4: Front Panel
Front Panel Rear Panel IN - ANT - OUT R - AUDIO - L VIDEO S/PDIF HDMI DC IN ANT IN Terrestrial broadcasting signal input socket (5V, Max.100mA) ANT OUT Terrestrial broadcasting signal output socket through the ANT IN socket for another digital receiver Y/Pb/Pr Component video output socket for the television set (green/blue/red) -
Page 5: Remote Control
Remote Control NOTE The actual images and the number of buttons could be different depending on the type of remote control provided by the manufacturer. • button switches the digital receiver between standby mode and active mode. • mutes the sound. Press again to switch it back on. •... - Page 6 • exits a menu or hides on-screen information. £ £ ¢ ¡ ¢ ¡ • buttons decrease or increase the volume. • sets a sleep timer in 10 minute increments. • displays the list of recorded programmes that are stored in the internal hard drive.
-
Page 7: Connecting The Tv
Connecting the TV Connect any components before plugging the power cord into the wall outlet. If you encounter any problems setting up your product, please contact your local retailer. 1 Connect the antenna cable to the ANT IN socket. 2 Choose a setup that matches the connection ports on your TV. –... -
Page 8: First Time Installation
First Time Installation 1 After having connected the appropriate cables from the digital receiver to your TV, make sure the power cord of the digital receiver is plugged into a wall socket. 2 Check that your TV set is turned on. 3 Check that your TV set is on the correct video channel so that you can see the Menu from the Digital Receiver. - Page 9 8 Once all the channels have been searched you will be told how many channels have been found. £ £ ¢ ¡ ¢ ¡ Press button and then button. EXIT Setting up your Time £ ¢ ¡ 1 Press the button, and then go to MENU Settings, press OK.
-
Page 10: Network Settings
Network settings You need to set up a network connection to enjoy web-enabled features on this unit. Connect your Ethernet cable from your router to the digital receiver. £ ¢ ¡ Installation Network 1 Press MENU > > Setting IP Setting. >... - Page 11 Electronic programme guide £ ¢ ¡ 1 Press the button to display the electronic programme guide (EPG). 2 To see detailed information of a desired programme, put the highlight bar on the programme with the but- ton and press the button.
-
Page 12: Recording And Playback
Recording and Playback Instant recording £ ¢ ¡ 1 Press the button on the live screen to start recording. 2 When recording has started, press the £ ¢ ¡ again to set the recording duration as shown in the left figure. 3 While recording, you can watch or record another service. - Page 13 Timer Recording You can set a programme to be recorded at a specific time. 1 Select the Recording Reservation > menu, then the timer list will be dis- played. £ ¢ ¡ 2 To add a new timer event, press the button, and a box like the left figure ap- pears.
- Page 16 At any time during the life of a product Topfield Co., Ltd. may change or modify the hardware or software on any product to introduce new features or improve the functionality of the product. Copyright © 2013, Topfield Co., Ltd. All rights reserved. English version http://www.i-topfield.com 110T-W2AD7-Q01-2 http://www.topfield-europe.com...
