Summary of Contents for upcom UC-IRD+ MULTI-MODE RECEIVER / DECODER

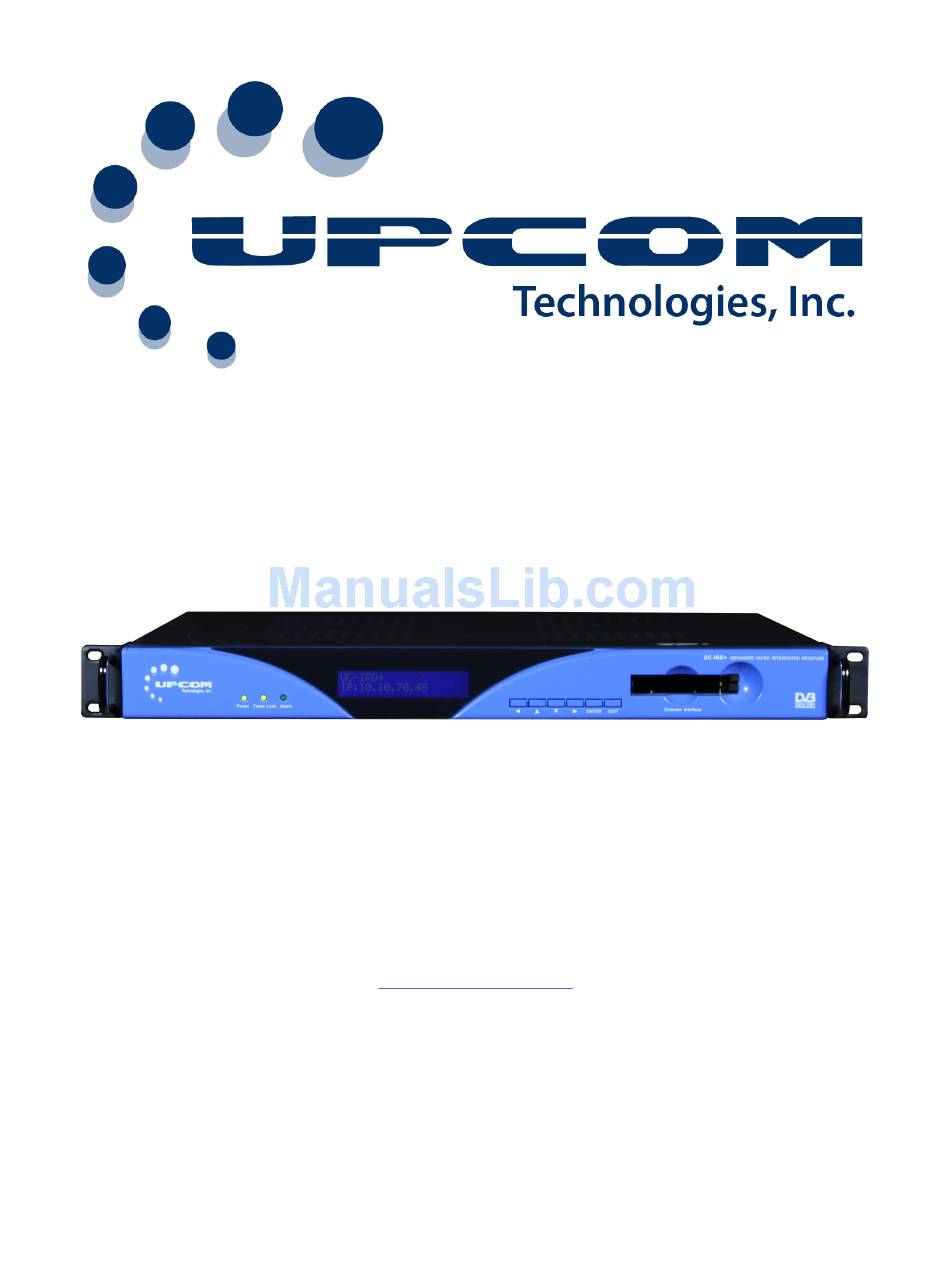

- Page 1 UC-IRD+ MULTI-MODE RECEIVER / DECODER USER MANUAL UPCOM TECHNOLOGIES INC. www.upcom.com Version 1.07 05312011...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Who s hould u se t his m anual .................... 4 Technical s pecifications ...................... 4 The S atellite R eceiver ........................ 4 ... - Page 3 UC-IRD+ MULTI-MODE RECEIVER / DECODER Device I nformation ........................ 3 7 Software V ersion .......................... 3 8 Network C onfiguration ......................... 3 8 HTTP L ogin ............................ 3 9 ...
-
Page 4: Who S Hould U Se T His M Anual
UC-IRD+ MULTI-MODE RECEIVER / DECODER Who s hould u se t his m anual This manual is written for operators/users of the UC-IRD+ Professional Integrated Receivers / Decoders. It describes the unit’s functions and operation. -
Page 5: Summary O F F Eatures
UC-IRD+ MULTI-MODE RECEIVER / DECODER Summary o f F eatures DVB-S/S2 and IP Receiver • MPEG-2 MP@ ML& MP@HL and MPEG 4 Part 10 (AVC high profile level 4.1) standards compliant and decoding • Wide choice of I/O interfaces, including ASI input/output, CVBS output,... -
Page 6: Outputs
UC-IRD+ MULTI-MODE RECEIVER / DECODER 2 45MBauds for 8PSK Rolling off factor 0.35 for QPSK 0.35 0.25 0.2 for DVB-S2 Punctured rates DVB-S QPSK 1/2 3/5 2/3 3/4 4/5 5/6 8/9 8/10 DVB-S2 8PSK 3/5 2/3 3/4 5/6 8/9 9/10... -
Page 7: Front P Anel M Enu S Tructure A Nd N Avigation
UC-IRD+ MULTI-MODE RECEIVER / DECODER Front P anel M enu S tructure a nd N avigation The operations menu has four levels (See Annex A). The first level menu has three menu items, each has its own child menu. And the child menu can have its own child menus again. -
Page 8: Received S Ignal S Trength I Ndicator (Rssi)
UC-IRD+ MULTI-MODE RECEIVER / DECODER The screen is for information only, parameters cannot be changed on this screen. Received S ignal S trength I ndicator (RSSI) This menu allows you to check the inbound strength parameters. Operations Sequence: Click “ENTER”... -
Page 9: Setting U P E Thernet I Nbound
UC-IRD+ MULTI-MODE RECEIVER / DECODER There are 7 options to setup on this menu: LNB Frequency: The input LNB Frequency Satellite Frequency: The input downstream frequency of the satellite Symbol Rate: The input symbol rate for the stream LNB Voltage: The voltage that will be sent through the F-Connector for the LNB. -
Page 10: Setting U P T He C Ommon I Nterface ( De--Scrambling)
UC-IRD+ MULTI-MODE RECEIVER / DECODER Stream Gateway: Enter the gateway address for the IP address assigned to your equipment TS/IP input. Stream MAC Address: The Factory-Set MAC address assigned to the TS/IP port. Multicast IP Address: Enter the multicast IP address of the Transport Stream source. -
Page 11: Setting U P T He A /V D Ecoder
UC-IRD+ MULTI-MODE RECEIVER / DECODER CI Source: Select the input source for the CI module. The options are: Tuner, ASI1, ASI2, IP input (If the TS/IP port is set to “IP in” on System - > Optional Function). Setup: Programs will be shown from the stream to be selected. Select the program to be de-scrambled. - Page 12 UC-IRD+ MULTI-MODE RECEIVER / DECODER the ASI1 and ASI2 ports that can be configured independently. There are 7 types of signal sources: Tuner: The input stream from the satellite tuner will be sent to the outputs on the back of the device.
- Page 13 UC-IRD+ MULTI-MODE RECEIVER / DECODER Fail Mode: Select the failure sent when the signal fails. Available options are: Black Screen, No Sync or Still Picture Closed Caption: Select to enable or disable the CC from the stream VBI Mode: Select to enable or disable the vertical blanking...
-
Page 14: Sending T He S Tream T O T He A Si O Utputs
UC-IRD+ MULTI-MODE RECEIVER / DECODER A/V Alarm Switch: This sub-menu allows you to activate the audio and video alarms Video alarm: Options are: Disable or Enable Audio Alarm: Options are: Disable or Enable Sending t he s tream t o t he A SI o utputs ... -
Page 15: Configuring T He I Nternal M
UC-IRD+ MULTI-MODE RECEIVER / DECODER Operations Sequence: Click “ENTER” to enter the “Outputs” menu, select “BISS” then click “ENTER”. The display will show something like this: BISS Mode Mode 1 There are different options to setup on this menu. BISS Mode: Select the correct BISS Mode to use with the TS. The possible... -
Page 16: Configuring E Thernet S Treaming
UC-IRD+ MULTI-MODE RECEIVER / DECODER Operations Sequence: Click “ENTER” to enter the “Outputs” menu, select “Mux” then click “ENTER”. The display will show something like this: Mux Switch There are different options to setup on this menu. Mux Switch: Select whether the internal multiplexer is On or Off Bit Rate: Set the stream bit rate. - Page 17 UC-IRD+ MULTI-MODE RECEIVER / DECODER NOTE: This option only will be available if it is enabled on System- >Optional Function. All the other configurations must be done before like BISS, CI, and Input configurations. Operations Sequence: Click “ENTER” to enter the “Outputs” menu, select “Ethernet” then click “ENTER”.
-
Page 18: For D Vb M Ode
UC-IRD+ MULTI-MODE RECEIVER / DECODER 5. Mux TS (Only available if it is enabled) 6. BISS De-Encrypted Mode: Select the mode of IP Streaming. The valid options are DVB or IPTV DVB Mode: The transport stream from the source will be directly sent as an IP stream. -
Page 19: Configuring T He U C--Ird+ M Anagement P Ort
UC-IRD+ MULTI-MODE RECEIVER / DECODER Channel x: where “x” is the number of the channel x-Switch: Set the channel On or Off. x-Uni/Multicast IP IP: set the IP address of the TS over IP. It can be configured as a Multicast or Unicast stream. -
Page 20: Configuring T He W Eb I Nterface
UC-IRD+ MULTI-MODE RECEIVER / DECODER There are 3 options to setup on this menu. IP Address: Set the IP address for the management port. Network Mask: Set he network mask for the IP address assigned to the equipment. Gateway: Set the Default Gateway for the IP address assigned to the equipment. -
Page 21: Find T He U Nit S Oftware V Ersions
UC-IRD+ MULTI-MODE RECEIVER / DECODER Once you have set up the Login ID and Password you can use your preferred browser and go to http://ird.ip.address. Use your Login ID and Password to login. Please see the Web Operation section for details. - Page 22 UC-IRD+ MULTI-MODE RECEIVER / DECODER To reset the unit to the default settings press the ENTER pushbutton, to abort the operation and leave the unit with the actual settings press the EXIT pushbutton.
-
Page 23: Web O Peration
UC-IRD+ MULTI-MODE RECEIVER / DECODER Web O peration Make sure you have already configured your HTTP Login ID and Password, and management port using the front panel, before you try to configure the UC-IRD+ using the web interface. -
Page 24: Setting U P S Atellite I Nbound ( Dvb--S2)
UC-IRD+ MULTI-MODE RECEIVER / DECODER This is the Status page. It shows the status of your interfaces, and gives information about the connections. Setting U p S atellite I nbound ( DVB-‐S2) This menu allows you to configure the Satellite Receiver. The parameters must be known before starting. -
Page 25: Setting U P T He C Ommon I Nterface ( De--Scrambling)
UC-IRD+ MULTI-MODE RECEIVER / DECODER Frequency Offset High (KHz): Frequency Offset Low (KHz): Setting U p t he C ommon I nterface ( De-‐Scrambling) This menu allows you to configure the Common Interface for inbound De- Scrambling. -
Page 26: Setting U P T He A /V D Ecoder
UC-IRD+ MULTI-MODE RECEIVER / DECODER The status will show up on the first row of the screen. Confirm the selected setup before leaving the sub-menu. The De-Scrambled stream will be ready to be used for the other functional blocks like the Decoder, ASI1, ASI2, SDI, Mux and TS/IP Output. - Page 27 UC-IRD+ MULTI-MODE RECEIVER / DECODER Tuner: The input stream from the satellite tuner will be sent to the outputs on the back of the device. ASI1 Input: The input stream from the ASI1 IN Port will be sent to the outputs on the back of the device.
- Page 28 UC-IRD+ MULTI-MODE RECEIVER / DECODER Video: Select the video settings from the available options: Auto, 576I 25, 480I 29.97, 576P 50, 480P 60, 720P 50, 720P 60, 1080I 25, 1080I 30. Screen: Select the screen mode from the available options: Auto, 4:3 Full, 4:3 Letterbox, 16:9 Full.
- Page 29 UC-IRD+ MULTI-MODE RECEIVER / DECODER Audio 1 Level: Set the audio level from 0 to 99 Audio 1 Mode: Set the audio mode. The available options are: Stereo, Left, Right, Mono. Audio 1 Priority: Select the priority of the audio detected on the stream.
-
Page 30: Sending T He S Tream T O T He A Si O Utputs
UC-IRD+ MULTI-MODE RECEIVER / DECODER SDI Closed Caption Mode: Select the closed caption mode on Status: Displays the status of the decode including PMT, PN, A/V, Video and Audio Mode: Select the program selection mode. The possible options are: Manual Selection or First Service. -
Page 31: Setting U P B Iss
UC-IRD+ MULTI-MODE RECEIVER / DECODER There is only one option on to choose at this level, the source of the stream. The possible options are: Tuner, IP, CD De-Encrypted, ASI Input, BISS De-Encrypted, Mux TS Setting u p B ISS ... - Page 32 UC-IRD+ MULTI-MODE RECEIVER / DECODER There are different options to setup on this menu. BISS Mode: Select the correct BISS Mode to use with the TS. The possible options are: Mode 0, Mode 1, Mode E Depending on the selection of BISS Mode you will have different options to choose: If you choose Mode 0 the only available option is the source.
-
Page 33: Configuring T He I Nternal M
UC-IRD+ MULTI-MODE RECEIVER / DECODER Configuring t he i nternal M UX This will allow you to configure the internal MUX on the UC-IRD+. NOTE: This option only will be available if it is enabled on System- >Optional Function. -
Page 34: Configuring E Thernet S Treaming
UC-IRD+ MULTI-MODE RECEIVER / DECODER Program List sub-menu: This sub-menu allows you to create a list of programs to “pass” to the output. The programs could come from ASI inputs, Tuner, TS/IP or the Internal CI De-Encryption block. Using the “Mux List”... - Page 35 UC-IRD+ MULTI-MODE RECEIVER / DECODER Stream IP Address: Enter the IP address assigned to your equipment TS/IP output. Stream Netmask: Enter the network netmask for the IP address assigned to your equipment TS/IP output. Stream Gateway: Enter the gateway address for the IP address assigned to your equipment TS/IP output.
-
Page 36: For D Vb M Ode
UC-IRD+ MULTI-MODE RECEIVER / DECODER For D VB M ode: Multicast IP: set the IP address of the TS over IP. It can be configured as a Multicast or Unicast stream. To use multicast mode set the IP address within the Multicast IP range 224.0.0.0 to 239.255.255.255 as defined by RFC 5771. -
Page 37: Device I Nformation
UC-IRD+ MULTI-MODE RECEIVER / DECODER x-Uni/Multicast Port: Set the UDP port number for the TS over IP x-Program: Select the program to use from the previously selected source. Encrypted programs are labeled with a “$” sign. Device I nformation ... -
Page 38: Software V Ersion
UC-IRD+ MULTI-MODE RECEIVER / DECODER Software V ersion Network C onfiguration ... -
Page 39: Http L Ogin
UC-IRD+ MULTI-MODE RECEIVER / DECODER HTTP L ogin Network T ime P rotocol C onfiguration ... -
Page 40: Annex
UC-IRD+ MULTI-MODE RECEIVER / DECODER ANNEX A IRD M ENU S TRUCTURE Main Menu Inputs Outputs System CI Source Status Local Setup IP Address Setup Network Mask CAM name Gateway RSSI Decoder Source Trap IP Address... -
Page 41: Annex
UC-IRD+ MULTI-MODE RECEIVER / DECODER ANNEX B AES B alanced A udio P inout ...
