Nature Power 23401 Instruction Manual

120 led dual head solar motion light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.2
120 LED DUAL HEAD
SOLAR MOTION LIGHT
Instruction Manual
Item# 23401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23401 and is the answer not in the manual?

Questions and answers

Related Manuals for Nature Power 23401

Summary of Contents for Nature Power 23401

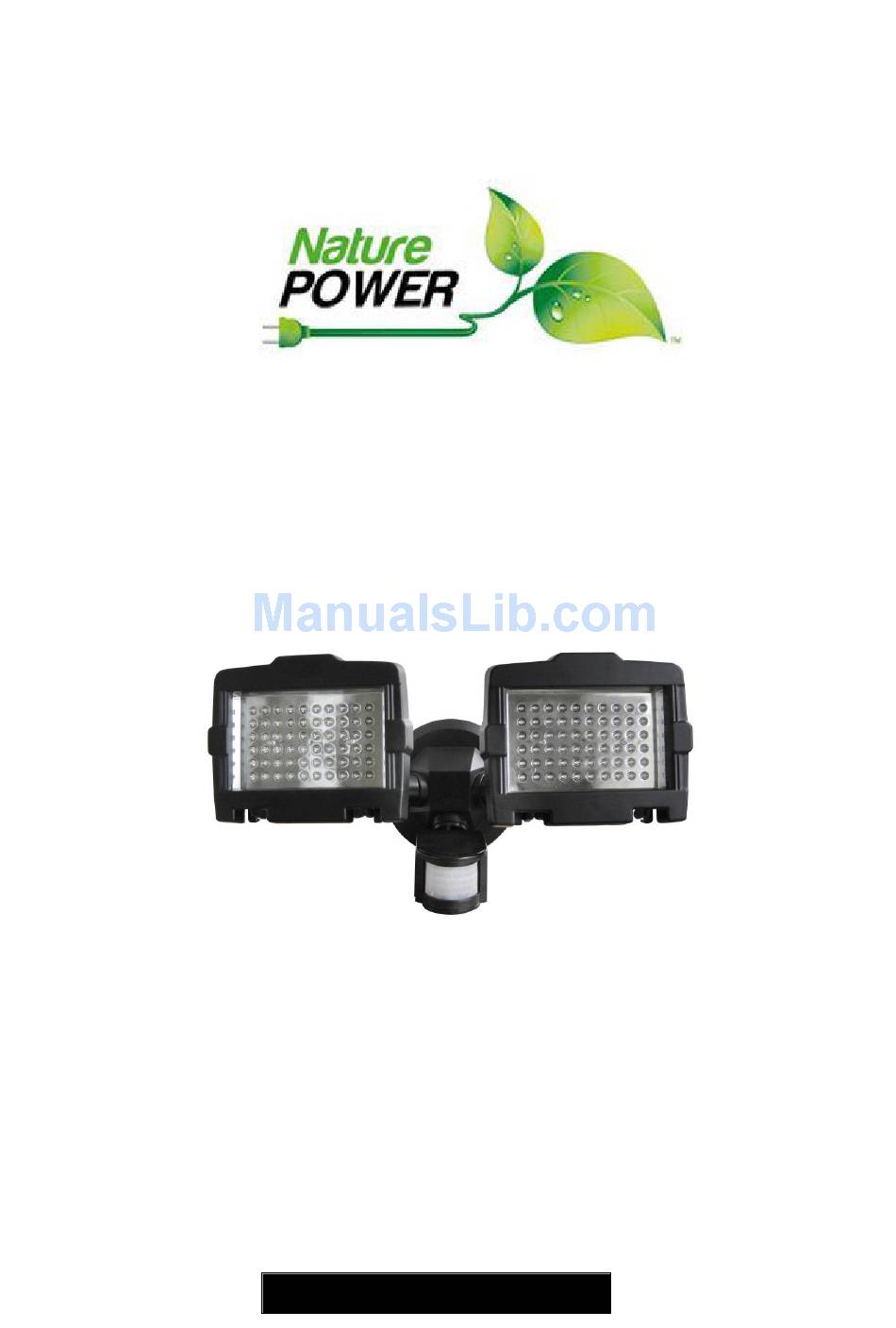

  • Page 1 Version 1.2 120 LED DUAL HEAD SOLAR MOTION LIGHT Instruction Manual Item# 23401...
  • Page 2 Thank you very much for choosing a Nature Power Product! For future reference, please complete the owner record below: Model: _______________ Purchase Date: _______________ Save the receipt and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.
  • Page 3 PARTS LIST Part Description Lamp Solar Panel (16 ft. wire) Screws & Anchors Mounting Bracket Manual Battery included, not a part USE AND CARE  Do not modify the solar light in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment.

  • Page 4: Assembly Diagram

    ASSEMBLY DIAGRAM Part Description Part Description Lamp Power Socket Solar Panel (16 ft. wire) Solar Panel Mounting Bracket Screws & Anchors Battery Housing 120 LED’s Coupling Shaft Mounting Bracket LUX Adjusting Knob Motion Detector Head SENS Adjusting Knob TIME Adjusting Knob ON/OFF/AUTO Switch NI-MH Battery Pack (not shown) OPERATION...
  • Page 5  Both arms can be rotated 180º front and back.  Coupling Shafts can be rotated 180º horizontally.  Both lamp heads can be rotated 180º left and right. Adjust these parts and joints to reach optimum angle and range of illumination. 4.

  • Page 6: Troubleshooting

    LUX (LIGHT LEVEL) The LUX Adjusting dial (13) tells the sensor the level of darkness that must be reached before the light turns If set to the maximum level, the light will go on in daylight. If set to the minimum setting the sensor will only trigger the light to turn on at dusk or when it is dark out.

  • Page 7: Battery Replacement

    Replace the cover of the Battery Housing (11). Secure it with the four screws. LIMITED WARRANTY Nature Power warrants our products to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from date of purchase.
