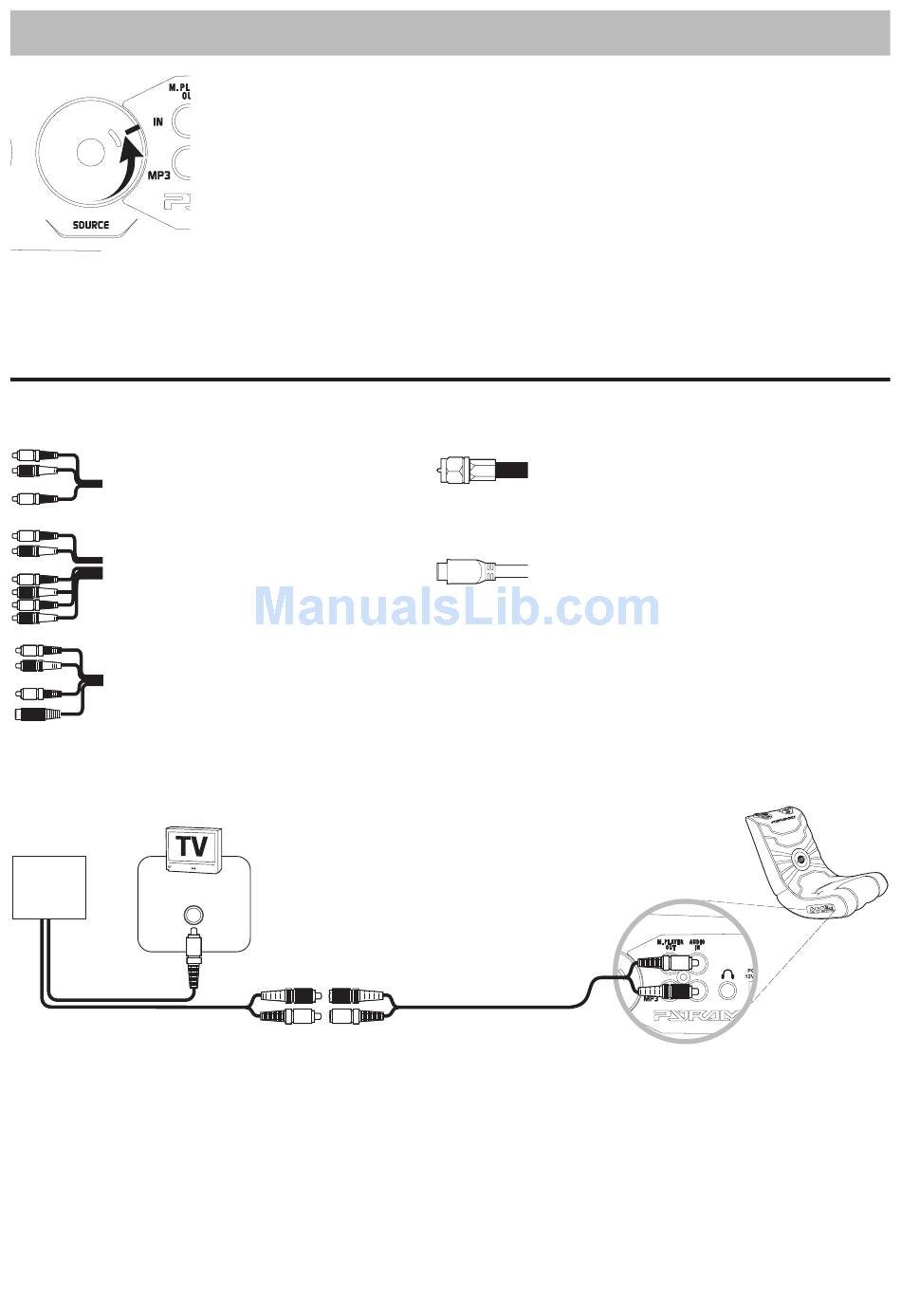

DIRECT CONNECTION METHODS

1
Turn the source knob on the
control panel to IN.
video Game Console Connection Cables
XBOX 360 , PLAYSTATION 2
TM
There are five types of audio/video cables that come with video game consoles:
1. Standard AV/RCA Cable
(red, white–audio; yellow–video)
2. High Definition AV/RCA Cable
(red, white–audio; yellow, blue, red, green–video)
3. S-Video AV/RCA Cable
(red, white–audio; yellow, black–S-video)
Av/RCA Cable Connection
For standard AV/RCA cable, high definition AV/RCA cable and S-Video AV/RCA cable.
VIDEO
GAME
CONSOLE
Yellow video cable
1
Follow the instructions from the
video game console's manufacturer
to connect the video cable(s) from
your video game console to your
television.
Note: Depending on your
connection, there may be more than
one video cable from your video
game console.
, PLAYSTATION 3 , GAMECUBE
TM TM
VIDEO
INPUT
2
Connect the RCA audio cable
from the video game console to the
female end of the RCA audio cable.
and others
TM
3. Coaxial Cable
(single black cable)
5. HDMI Cable
(single cable)
RCA male to female audio cable
3
Connect the male end of the
RCA audio cable to the AUDIO IN
port on the control panel.
4
Note: If you have a coaxial cable
or HDMI cable, you will also need
to purchase a male to male RCA
audio cable from the console
manufacturer or local audio
accessory dealer.
