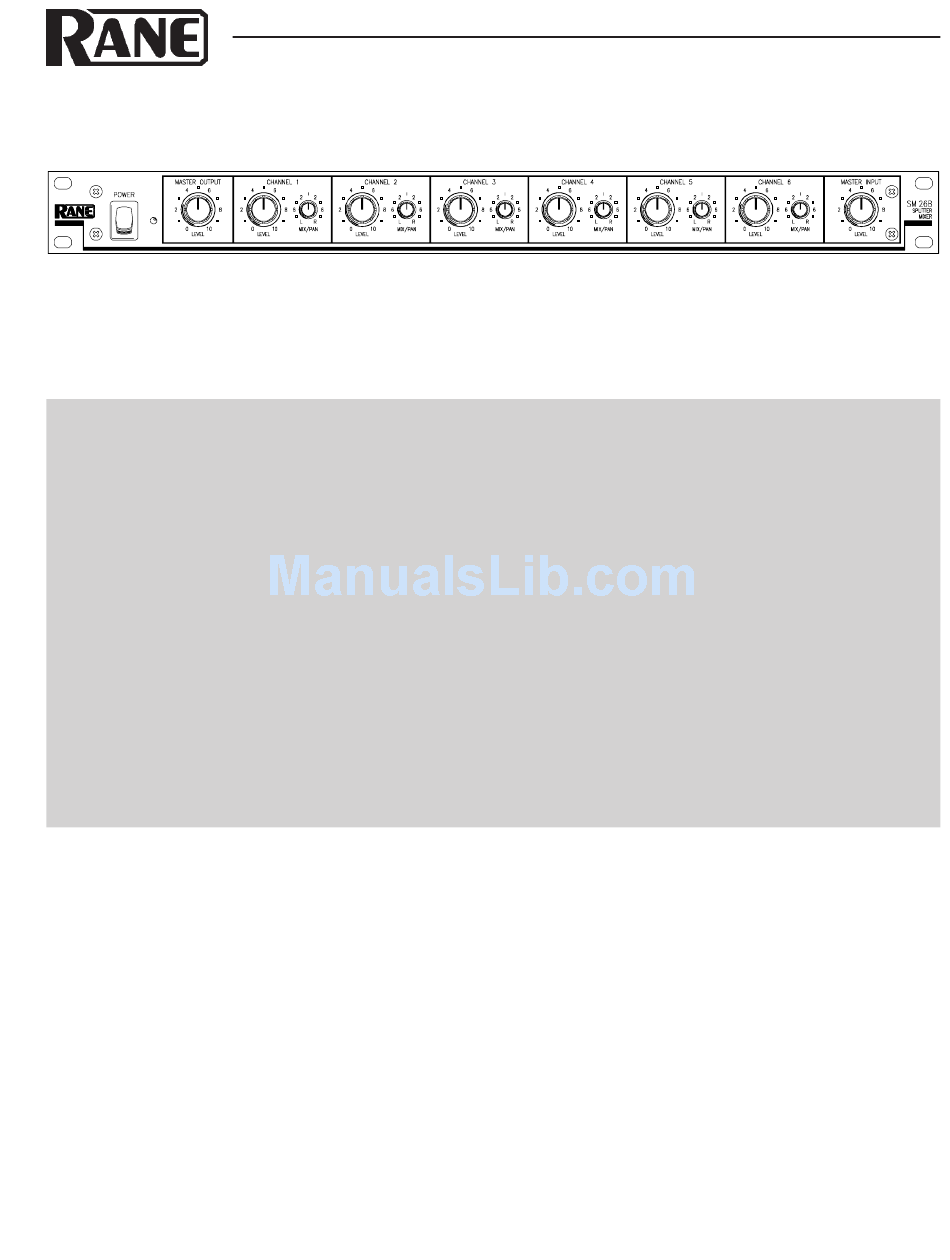

Rane SM 26B Operator's Manual

QUICK START

Realizing that in most areas there are laws against reading owners manuals, and that reading them under the blankets at
night with a flashlight makes you feel stupid, we therefore provide this brief, yet informative, description of how to use the
SM 26B just in case your batteries are low and your mother is about to come in the room.
To achieve a quick understanding of the SM 26B, think of it as a six channel mixer with faders and pans only. Or think
of it as a 2-to-6 channel splitter with output level controls and a mix knob (to control how much of which input goes to
which output). If you get that, you may stop here as long as you know how to hook up the power supply.
As a six channel mixer, MONO IN 1 through 6 may be placed on the Right or Left bus or both, in any amount. The
respective LEVEL knobs on the front of the unit serve as the mixer's faders, the adjacent PAN controls place the channel's
signal into the stereo field. As an effects mixer or line level expander for a larger mixer, set up the LEVELS and adjust the
PANS. The MASTER OUTPUT LEVEL adjusts the overall level of the mix at the Master Outputs.
As a splitter, place one or both input signals into the LEFT and/or RIGHT Inputs. Select the Input(s) to be placed at
each of the six MONO OUTs by rotating the MIX/PAN control to the proper position. Set the individual CHANNEL
LEVEL controls for proper output level. The MASTER INPUT LEVEL control on the front adjusts both Right and Left
Input signal levels together.
Never connect anthing except an RS 1 or other approved Rane AC power supply to the red thing that looks like a
telephone jack on the rear of the SM 26B. This is an AC input and requires some special attention if you do not have an
operational power supply exactly like the one that was originally packed with your unit. See the full explanation of the
power supply requirements elsewhere in this manual.

SM 26B CONNECTION

When connecting the SM 26B to other components in
your system for the first time, leave the power supply for last.
This gives you a chance to make mistakes and correct them
before damage is done to anything fragile.
As you have no doubt noticed, all Inputs and Outputs on
the SM 26B's rear panel are ¼" connectors. The Inputs and
Outputs are active balanced on Tip-Ring-Sleeve (TRS) jacks
which allow the flexibility of connecting in either a balanced
or unbalanced fashion. If unbalanced operation is your
preference, the simplest way to accomplish this is through the
OPERATORS MANUAL
use of tip and sleeve ¼" connectors. The ring is not essential
unless balanced operation is required. You should be aware
that if you are running unbalanced and using TRS connectors
with both ring and tip, the ring and sleeve must be shorted
together. Failure to do so on the inputs results in a gain loss of
6 dB.
Balanced operation requires that TRS plugs be used. The
tip is hot (+), the ring is return (–) and the sleeve is ground.
RaneNote 110, "Sound System Interconnection" (included
here) contains some great pictures to aid your interconnect
ventures.
SM 26B
SPLITTER MIXER
Manual-1
