X10 Mini Timer XPMT1 Owner's Manual

Hometech mini timer owner's manual
Hide thumbs

Advertisement

Quick Links

PRO
Model XPMT1
Mini Timer
Owner's Manual

Advertisement

loading

  Related Manuals for X10 Mini Timer XPMT1

  Summary of Contents for X10 Mini Timer XPMT1

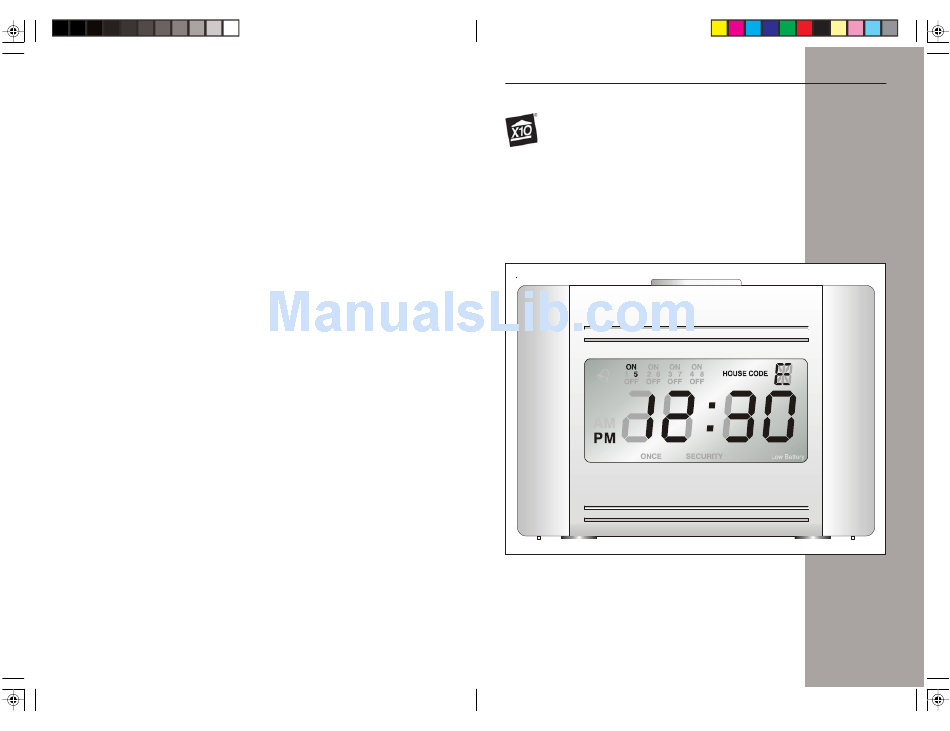

  • Page 1 Model XPMT1 Mini Timer Owner's Manual...
  • Page 2: Table Of Contents

    Contents Introduction ... 3 Quick Tour ... 5 How to program a timed event ... 6 Special programming buttons ... 6 Setting up the Mini Timer ... 7 Setting the clock ... 7 Controlling X10 PRO modules ... 7 Programming ON and OFF times ... 9 Setting something to happen every day at the same time ...
  • Page 3: Introduction

    Introduction How it works The Mini Timer plugs into any AC outlet in your home and transmits digitally encoded signals over your house wiring instantly or at the times you set. These signals are received by the X10 PRO Modules. You Plug a lamp up to 300 watts into a Lamp Module, an appliance such as a radio, fan, or coffee pot into an Appliance Module and replace important indoor or outdoor security lights up to 500 watts with the Wall Switch Module (modules sold separately).
  • Page 4: How To Program A Timed Event

    Quick Tour How to Program a timed event 1. Place the mode switch in “Prog Set/Review” position. 2. Advance to the desired time. 3. Set the 1-4/5-8 switch to the desired position. 4. Press any of the 4 ON or OFF buttons to set an On or Off time for that Module. This will program the Mini Timer to turn that Module on (or off) at that time every day.
  • Page 5: Programming On And Off Times

    Setting up the Mini Timer Setting something to happen every day at the same time After you have installed all of your Modules and checked that they are working instantly from the Mini Timer you are ready to program timed events. 1.
  • Page 6: Reviewing Timer Events

    Programming ON and OFF times Reviewing timer events Set the Mode Switch in the “Prog Set/Review” position. If no events exist in memory 0:00 is displayed, otherwise the first event found in memory is displayed. If (while in Prog/Review Mode) one of the 4 module ON (or OFF) buttons is pressed without modifying the current time, and no events are in memory for that module, 0:00 is displayed.
  • Page 7: Alarm Settings

    Alarm settings Setting the Alarm Buzzer With the “Wake” switch in the “ON” position, any program you set for Module number 1 will also set the internal alarm buzzer. A bell icon will show in the display to indicate that a time for the Buzzer is set. For example: If you connect your bedside lamp to a Lamp Module set to Unit Code 1 and then program Module number 1 for an On time of 7:00 AM - At 7:00 AM your bedside lamp will turn on and the internal buzzer in the Mini Timer will sound.
  • Page 8 Setting up the Lamp Module Setting The Lamp Module’s Code (modules sold separately) Using a small screwdriver, set the red House Code dial to the same letter as your Mini Timer. Set the Black Unit Code dial to any unused number. Ratings The Lamp Module can be used to control an incandescent lamp rated up to 300W.
  • Page 9: Troubleshooting

    Troubleshooting 1. If a particular Module won’t go on or off from the buttons on the Mini Timer: Check that you have power to the outlet controlling the Module and the switch on the light or appliance is ON. Check that the Unit Code and Housecode on the Module are set correctly. Try plugging the Module and the Mini Timer into the same outlet.
  • Page 10 WARRANTY NOTES X10 PRO (X10) warrants X10 products to be free from defective material and workmanship for a period of two (2) years from the original date of purchase at retail. X10 agrees to repair or replace, at its sole discretion, a defective X10 product if returned to X10 within the warranty period and with proof of purchase.
  • Page 11 X10 PRO, North Las Vegas, NV 89032 www.x10pro.com Made in China XPMT1-7/06...
