COMSOL UIR-120 User Manual

Usb infrared adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

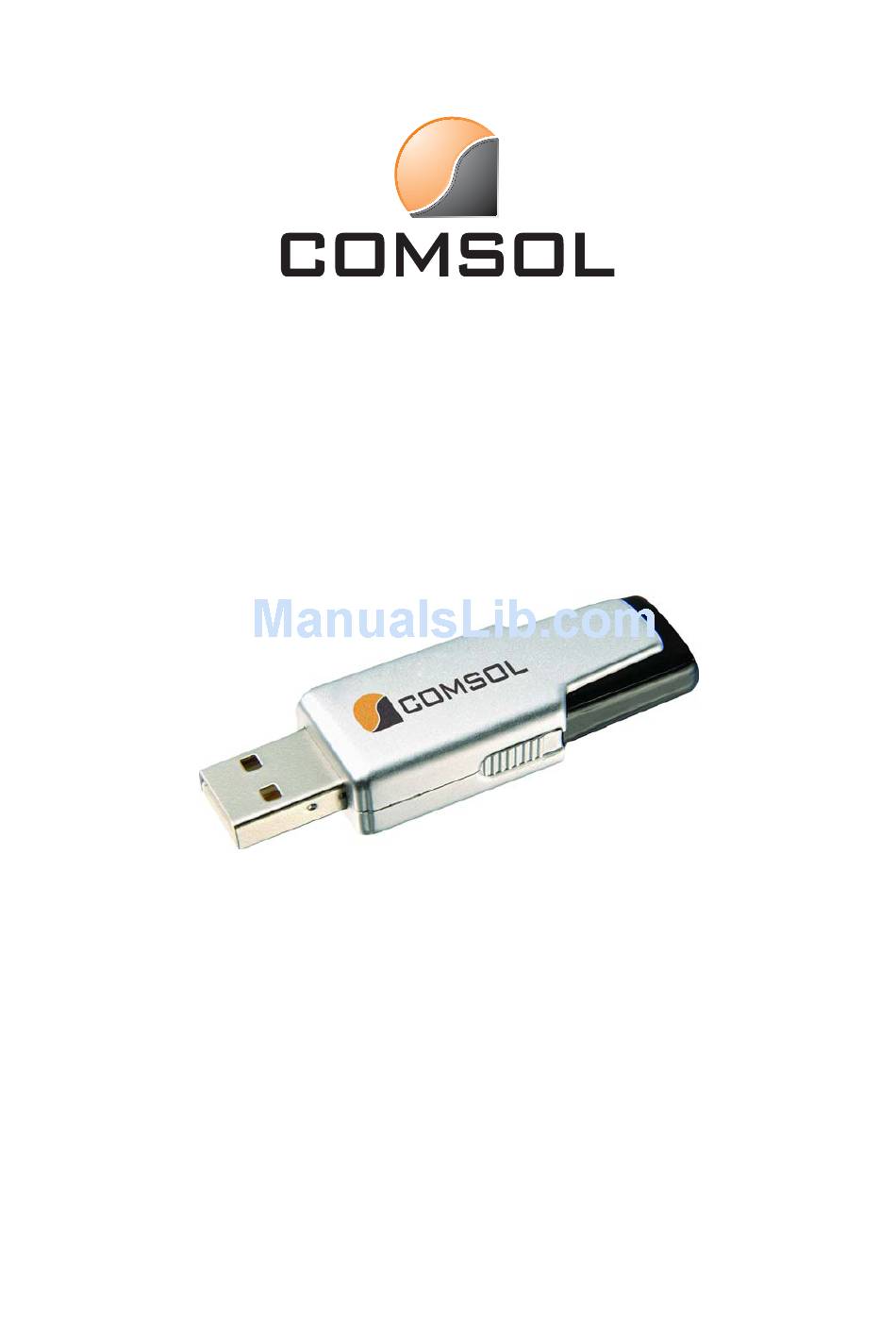

USER MANUAL
USB INFRARED ADAPTER
UIR-120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UIR-120 and is the answer not in the manual?

Questions and answers

Related Manuals for COMSOL UIR-120

Summary of Contents for COMSOL UIR-120

  • Page 1 USER MANUAL USB INFRARED ADAPTER UIR-120...

  • Page 2: Table Of Contents

    CONTENT Introduction----------------------------------------------------------------------------------2 Application & Connection-------------------------------------------------------------2 Package Content--------------------------------------------------------------------------2 Product Features--------------------------------------------------------------------------2 System Requirements-------------------------------------------------------------------3 Driver Installation-------------------------------------------------------------------------3 ® Windows 98 Driver Installation---------------------------------------------------3 ® Windows ME Driver Installation--------------------------------------------------5 ® Windows 2000 Driver Installation------------------------------------------------7 ® Windows XP Driver Installation---------------------------------------------------9 Disclaimer-----------------------------------------------------------------------------------12 FCC Statement----------------------------------------------------------------------------12 USB Infrared Adapter User Manual Page 1...

  • Page 3: Introduction

    1. Introduction Comsol USB Infrared Adapter enables IrDA wireless data communication through a standard USB port. Powered from USB bus, this product does not require any external power adapter. It supports SIR (2.4Kbps to 115.2Kbps), MIR (576Kbps to 1152Kbps), and FIR (4Mbps) modes. The effective data transmission distance is o (+ / from 0 to 1M.
  • Page 4 ® Follow the steps below to install the driver for Comsol USB Infrared Adapter: 6.1.1 Power on the computers that you will use to connect the Comsol USB Infrared Adapter and make sure the USB port is enabled and working properly.
  • Page 5 6.1.7 Windows will auto detect the new device and install the needed driver onto your system. Click “Finish” to complete the installation. 6.1.8 When the dialog box appears as below, restart your system. 6.1.9 After windows restarts, you must check “My Computer”-“Control Panel”-“System”-“Device Manager”, “Infrared Communication Device”...

  • Page 6: Windows ® 98 Driver Installation

    ® Follow the steps below to install the driver for Comsol USB Infrared Adapter: 6.2.1 Power on the computers that you will use to connect the Comsol USB Infrared Adapter and make sure the USB port is enabled and working properly.
  • Page 7 6.2.7 Windows will auto detect the new device and install the needed driver onto your system. Click “Finish” to complete the installation. 6.2.8 When the dialog box appears as below, restart your system. 6.2.9 After windows restarts, you must check “My Computer”-“Control Panel”-“System”-“Device Manager”, “Infrared Communication Device”...

  • Page 8: Windows ® 2000 Driver Installation

    ® Follow the steps below to install the driver for Comsol USB Infrared Adapter: 6.3.1 Power on the computers that you will use to connect the Comsol USB Infrared Adapter and make sure the USB port is enabled and working properly.
  • Page 9 6.3.7 After install the driver, you must check “My Computer”-“Control Panel”-“System”-“Hardware”-“Device Manager”, you will see“USB- IrDA Adapter” under the Infrared devices. USB Infrared Adapter User Manual Page 8...

  • Page 10: Windows ® Xp Driver Installation

    Windows XP Driver Installation ® Follow the steps below to install the driver for USB to IrDA Adapter USB cable: 6.4.1 Power on the computers that you will connect the USB to IrDA Adapter and make sure the USB port is enabled and working properly. 6.4.2 Put the driver CD into the CD-ROM and run the D:\ Infrared UIR- 120\Drivers\WINDOWS\SETUP.EXE.
  • Page 11 6.4.7 When the dialog box appears as below, plug the Comsol USB Infrared Adapter into the USB port. 6.4.8 Windows will auto detect the Comsol USB Infrared Adapter, click “Next” to continue. 6.4.9 When the dialog box appears as below, click “Continue Anyway” to install the driver.
  • Page 12 6.4.10 Windows will install the needed driver to your system. 6.4.11 Click “Finish” to complete installation. 6.4.12 Click “Finish” to complete installation. 6.4.13 To make sure that the driver has been properly installed on your computer, you must check “My Computer”-“Control Panel”- “System”-“Hardware”-“Device Manager”, you will see “SigmaTel USB-IrDA Dongle”...

  • Page 13: Disclaimer

    7. Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any other commercial damage, including but not limited to special, incidental, consequential, or other damages.
