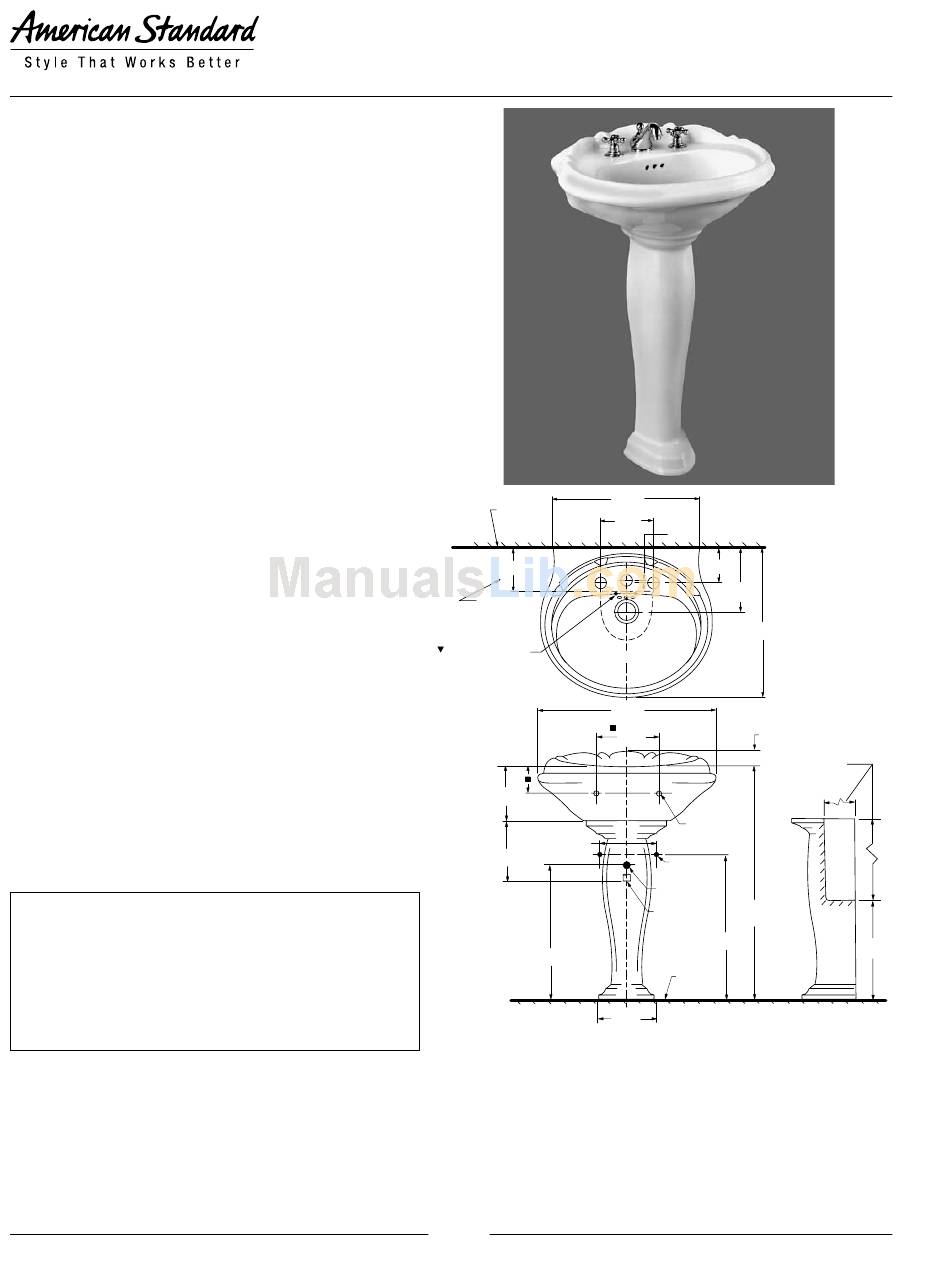

American Standard Reminiscence 0211.008 Specifications

REMINISCENCE™ PEDESTAL SINK
• Vintage-styled basin with raised motif backsplash
and design-coordinated pedestal
• Made from vitreous china
• Rear overflow
• Supplied with mounting kit
• Design matched to Reminiscence toilet
• Faucet ledge
Shown with 3801.452 Amarilis Jasmine faucet
and handles (not included)
❏ 0211.800 Faucet holes on 8" (203mm) centers
(Illustrated)
❏
0211.400 Faucet holes on 4" (102mm) centers
❏
0211.100 Center hole only
Nominal Dimensions:
660 x 508 x 864mm
(26" x 20" x 34")
Separate Components:
❏ 0211.008 Pedestal top-8" (203mm) centers
❏ 0211.004 Pedestal top-4" (102mm) centers
❏ 0211.001 Pedestal top-center hole only
❏
734900-400 Pedestal only
Bowl sizes:
476mm (18-3/4") wide
292mm (11-1/2") front to back
133mm (5-1/4") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
© 2008 AS America Inc.
PEDESTAL ANCHORING
SCREW HOLES
8mm (5/16) DIA
❏ Black
NOTES:
* DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
SUGGESTED.
▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J2
REMINISCENCE™
552mm
(21-3/4)
FINISHED
WALL
203mm
(8)
140mm
(5-1/2 REF.)
PEDESTAL
TO WALL
CLEARANCE
C/L
.
660mm
(26)
260mm
(10-1/4)
178mm
(7)
203mm
(8)
178mm
(7)
1-1/4 O.D.
1-1/4 O.D
TAILPIECE
*
546mm
(21-1/2)
210mm
(8-1/4)
PEDESTAL SINK
VITREOUS CHINA
10mm
(3/8)
108mm
(4-1/4)
206mm
(8-1/8)
508mm
(20)
70mm
(2-3/4)
DRAIN
CHASE
19mm (3/4) DIA.
HOLES FOR
ANCHOR BOLTS
SUPPLIES
AS REQ'D
WASTE
864mm
(34)
REF.
*
597mm
(23-1/2)
FINISHED
FLOOR
PEDESTAL
SIDE SECTION
Revised 2/08
400mm
(15-3/4)
