Data sheet

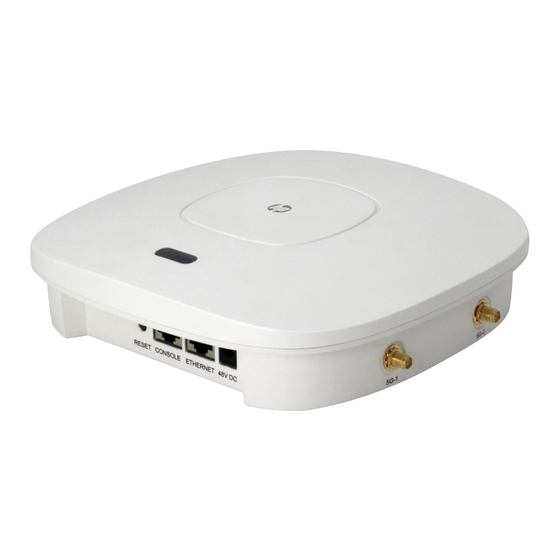

HP 425 802.11n Dual Radio
Access Point Series
The HP 425 802.11n Dual Radio Access Point Series, designed to work in sync with HP
controllers, delivers high-performance networking solutions. The enhanced controller
architecture scales to IEEE 802.11n—without requiring a controller replacement. The
controllers provide advanced radio resource management (RRM), including client load balancing
and interference mitigation. And the wireless controllers support a fast-roaming capability—an
important feature, especially for VoIP communications.
The 425 Access Points work in a managed mode with HP wireless LAN controllers. The access
points (APs) provide RF spectrum analysis with detection and classification of non-IEEE 802.11
interference; and they have the ability to automatically resist interference. Wireless security
is comprehensive with integrated wireless IDS (Intrusion Detection System) and support for
internal and external authentication, authorization, and accounting (AAA) servers; built-in
stateful firewalls; per-user VLAN mapping; and authentication.. In addition to working with HP
MSM controllers, the APs work with the new HP 10500/7500 20G Unified Wired-WLAN Module,
the HP 800 Series Unified Wired-WLAN Switch, and the HP WX5002/5004 wireless controllers.
A summary of the highlights of the 425 Access Points:
• Dual radio—two spatial stream access supporting 300 Mb/s per radio
• Support for embedded antennas as well as an optional external antenna
• Powered via the IEEE 802.3af power over Ethernet (PoE) or the local power supply
• Comprehensive WLAN security
• Lifetime Warranty 2.0—which comes with 24x7 telephone support for three years

Advertising

   Summary of Contents for HP 425

  • Page 1: Product Overview

    HP 425 802.11n Dual Radio Access Point Series Product overview The HP 425 802.11n Dual Radio Access Point Series, designed to work in sync with HP controllers, delivers high-performance networking solutions. The enhanced controller architecture scales to IEEE 802.11n—without requiring a controller replacement. The controllers provide advanced radio resource management (RRM), including client load balancing and interference mitigation.

  • Page 2: Features And Benefits

    Data sheet | HP 425 802.11n Dual Radio Access Point Series Features and benefits Management • Wi-Fi Clear Connect Provides a system-wide approach to improving WLAN reliability by proactively determining and adjusting to changing RF conditions; helps optimize WLAN performance by mitigating interference from Wi-Fi and non-Wi-Fi sources—using spectrum analysis capabilities built into...

  • Page 3

    Data sheet | HP 425 802.11n Dual Radio Access Point Series • Compatible with HP controllers and unified switches and modules – HP MSM720, MSM760, MSM765 zl and MSM775zl Controllers; the software version 6.2 (minimum) – HP WX5000 Access Controller Series and the controller software version CMW520-R2308P29-EI (minimum) –...

  • Page 4

    Data sheet | HP 425 802.11n Dual Radio Access Point Series Mobility • Bandsteering Redirects 5 GHz-capable clients automatically to the less-congested 5 GHz spectrum • HP 425 Antenna – Embedded antenna Provides excellent coverage through the use of embedded high-gain antennas (4 dBi antenna at 2.4 GHz and 5 dBi antenna at 5 GHz);...

  • Page 5

    Data sheet | HP 425 802.11n Dual Radio Access Point Series • IEEE 802.1X support Provides port-based user authentication with support for the extensible authentication protocol (EAP) MD5, TLS, TTLS, and PEAP—with choice of advanced encryption standard (AES), temporal key integrity protocol (TKIP), and static or dynamic WEP encryption for protecting wireless traffic between authenticated clients and the AP •...

  • Page 6: Specifications

    Data sheet | HP 425 802.11n Dual Radio Access Point Series HP 425 802.11n Dual Radio Access Point Series Specifications HP 425 Wireless Dual Radio 802.11n (AM) Access Point (JG653A) Ports 1 RJ-45 autosensing 10/100/1000 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);...

  • Page 7

    Refer to the HP website at hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. Radio characteristics Notes These radio characteristics apply to the HP 425 Access Points, including the embedded antenna. Power is limited based on country of operation.

  • Page 8

    Data sheet | HP 425 802.11n Dual Radio Access Point Series IEEE 802.11n 5 GHz @ 40 MHz Data rate MCS0, MCS8 MCS7, MCS15 channel 30 Mbps 300 Mbps Receiver sensitivity -92 dBm -70 dBm Transmit power 25 dBm 20 dBm IEEE 802.11n 5 GHz @ 20 MHz...

  • Page 9

    Data sheet | HP 425 802.11n Dual Radio Access Point Series MCS Index 800 nS Guard Interval 400 nS Guard Interval 20 MHz Rate (Mbps) 40 MHz Rate (Mbps) 20 MHz Rate (Mbps) 40 MHz Rate (Mbps) 13.5 14.4 19.5 40.5...

  • Page 10

    Data sheet | HP 425 802.11n Dual Radio Access Point Series HP 425 802.11n Dual Radio Access Point Series accessories Power supply HP 1-port Power Injector (J9407B) HP Gigabit IntelliJack 48V Power Supply (JD055B) HP access points and access devices are Wi-Fi External antenna HP Indoor Omnidirectional Dual Band 2.5/6dBi MIMO 4 Element Antenna (JG696A)

  • Page 11

    Data sheet | HP 425 802.11n Dual Radio Access Point Series...

  • Page 12

    HP shall not be liable for technical or editorial errors or omissions contained herein. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Microsoft is a U.S. registered trademark of Microsoft Corporation.
