SDN11PTB

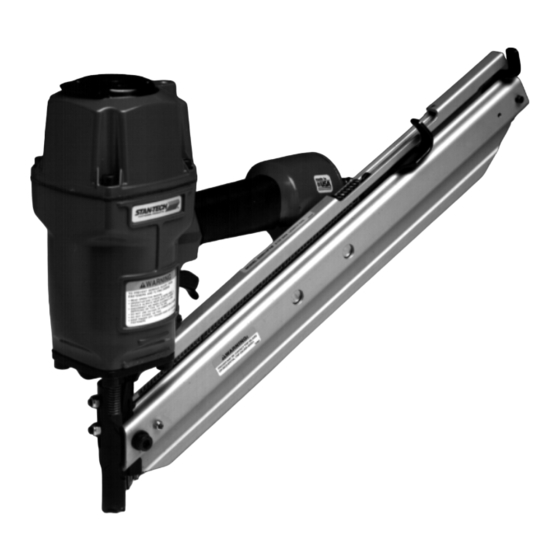

PNEUMATIC STICK NAILER
OPERATION and MAINTENANCE MANUAL
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND
AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE
TOOL FOR FUTURE REFERENCE.
IF YOU HAVE ANY QUESTIONS, CONTACT YOUR STAN-TECH
REPRESENTATIVE OR DISTRIBUTOR.
103127REVB 3/98
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stan-Tech SDN11PTB
Summary of Contents for Stan-Tech SDN11PTB
- Page 1 BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR STAN-TECH REPRESENTATIVE OR DISTRIBUTOR. 103127REVB 3/98...
-
Page 2: Limited Warranty
Stan-Tech, warrants to the original retail purchaser that this product is free from defects in material and workmanship, and agrees to repair or replace, at Stan-Tech’s option, any defective product within 90 days from the date of purchase. This warranty is not transferable. It only covers damage resulting from defects in material or workmanship, and it does not cover conditions or malfunctions resulting from normal wear, neglect, abuse or accident. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. - Page 4 DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE. AIR CONSUMPTION: Model SDN11PTB requires 7.8 cubic feet per minute (.22 cubic meters) of free air to operate at the rate of 100 fasteners per minute, at 80 p.s.i. (5.6kg/cm ). Take the actual rate at which the tool with be run to determine the amount of air required.
-
Page 5: Cold Weather Operation
Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Use STAN-TECH Air Tool Lubricant, Mobil Velocite #10, or equivalent. Do use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. -
Page 6: Fastener Depth Control Adjustment
Loosen screw as shown. Adjust to desired exhaust direction together slightly to disengage, slide pusher and tighten screw as specified in tool parts illustration. against nails. NOTE: Use only nails recommended for use in STAN-TECH SDN11PTB series nailers or nails which meet STAN-TECH specifications. -
Page 7: Tool Operation
I. READ AND UNDERSTAND THE WARNINGS CONTAINED IN THIS MANUAL. II. REFER TO “TOOL SPECIFICATIONS” IN THIS MANUAL TO IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL. There are three available systems on STAN-TECH pneumatic tools. They are: 1. TRIGGER OPERATION 2. CONTACT TRIP OPERATION 3. -
Page 8: Tool Operation Check
• Do not operate this tool if it does not contain a legible WARNING LABEL. NOTE: Do not continue to use a tool that leaks air or does not function properly. Notify your nearest Stan-Tech representative if your tool continues to experience functional problems. -
Page 9: Basic Tool Operation
“O”-rings. Coat each “O”-ring with “O”-LUBE before assembling. Use a small amount of oil on all moving surfaces and pivots. After reassembly add a few drops of STAN-TECH Air Tool Lubricant through the air line fitting before testing. -
Page 10: Trouble Shooting
Tighten and recheck Failure to cycle Air supply restriction Check air supply equipment Tool dry, lack of lubrication Use STAN-TECH Air Tool Lubricant Worn head valve O-rings Replace O-rings Broken cylinder cap spring Replace cylinder cap spring Head valve stuck in cap Disassemble/Check/Lubricate Lack of power;... - Page 11 1/16” (1.5mm) may cause a slight reduction in the apparent driving power. 6.308” - 6.328” (160.2 - 160.7 mm) STANDARD LENGTH SDN11PTB 3/8” (9.5mm) maximum limit of driver recessed into piston. Do not exceed this limit.
