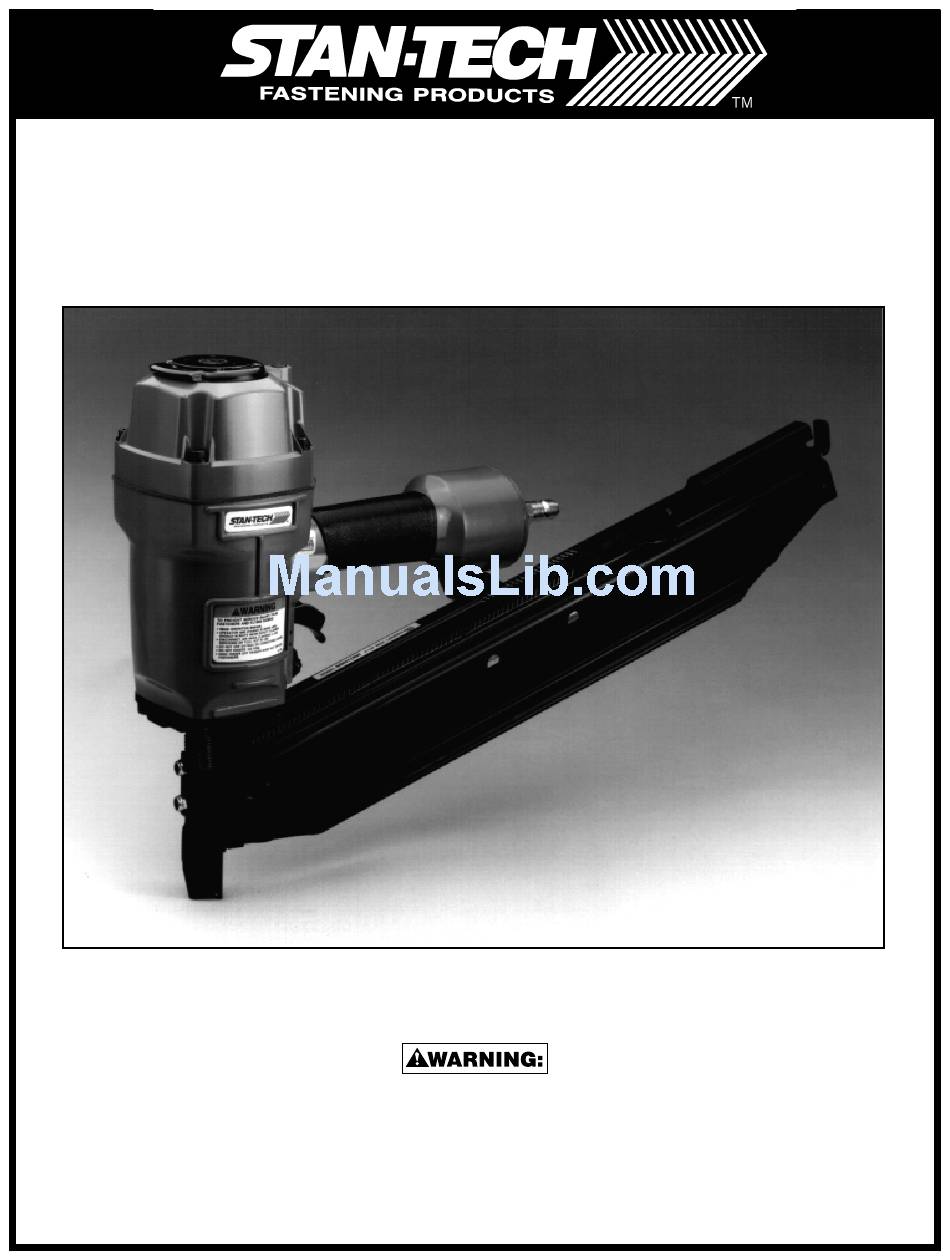

SDN11RH
PNEUMATIC STICK NAILER
OPERATION and MAINTENANCE MANUAL
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND
AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE
TOOL FOR FUTURE REFERENCE.
IF YOU HAVE ANY QUESTIONS, CONTACT YOUR STAN-TECH
REPRESENTATIVE OR DISTRIBUTOR.
103248REVB 4/98
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stan-Tech SDN11RH
Summary of Contents for Stan-Tech SDN11RH
- Page 1 BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR STAN-TECH REPRESENTATIVE OR DISTRIBUTOR. 103248REVB 4/98...
-
Page 2: Table Of Contents
Stan-Tech, warrants to the original retail purchaser that this product is free from defects in material and workmanship, and agrees to repair or replace, at Stan-Tech’s option, any defective product within 90 days from the date of purchase. This warranty is not transferable. It only covers damage resulting from defects in material or workmanship, and it does not cover conditions or malfunctions resulting from normal wear, neglect, abuse or accident. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury. -
Page 4: Tool Specifications; Air Consumption & Operating Pressure
DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE. AIR CONSUMPTION: The SDN11RH requires 7.8 cubic feet per minute of free air to operate at the rate of 100 nails per minute, at 80 p.s.i.g. (5.6 kg/cm ). Take the actual rate at which the tool will be run to determine the amount of air required. -
Page 5: Air Supply: Fittings, Hoses, Filters & Regulators
AIR SUPPLY AND CONNECTIONS Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury. FITTINGS: Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source. -
Page 6: Loading The Tool
Reconnect air supply and drive a few fasteners in a sample of material to determine if adjustment is correct. If further adjustment is NOTE: Use only nails recommended for use in Stan-Tech SDN11RH series nailers or nails which meet Stan-Tech necessary, disconnect air and repeat above. -
Page 7: Operating The Tool
I. READ AND UNDERSTAND THE WARNINGS CONTAINED IN THIS MANUAL. II. REFER TO “TOOL SPECIFICATIONS” IN THIS MANUAL TO IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL. There are three available systems on STAN-TECH pneumatic tools. They are: 1. TRIGGER OPERATION 2. CONTACT TRIP OPERATION 3. -
Page 8: Tool Operation Check
• Do not operate this tool if it does not contain a legible WARNING LABEL. NOTE: Do not continue to use a tool that leaks air or does not function properly. Notify your nearest Stan-Tech representative if your tool continues to experience functional problems. -
Page 9: Basic Tool Function Diagram
REPLACEMENT PARTS: STAN-TECH replacement parts are recommended. Do not use modified parts or parts which will not give equivalent performance to the original equipment. ASSEMBLY PROCEDURE FOR SEALS: When repairing a tool, make sure the internal parts are clean and lubricated. -
Page 10: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSE CORRECTION Trigger valve housing leaks air O-ring cut or cracked Replace O-ring Trigger valve stem leaks air O-ring/seals cut or cracked Replace trigger valve assembly Frame/nose leaks air Loose nose screws Tighten and recheck O-ring or Gasket is cut or cracked Replace O-ring or gasket Bumper cracked/worn Replace bumper... -
Page 11: Adjusting Exhaust
DIRECTIONAL EXHAUST DEFLECTOR Loosen screw as shown. Adjust to desired exhaust direction and tighten screw as specified in tool parts illustration. -11-...
