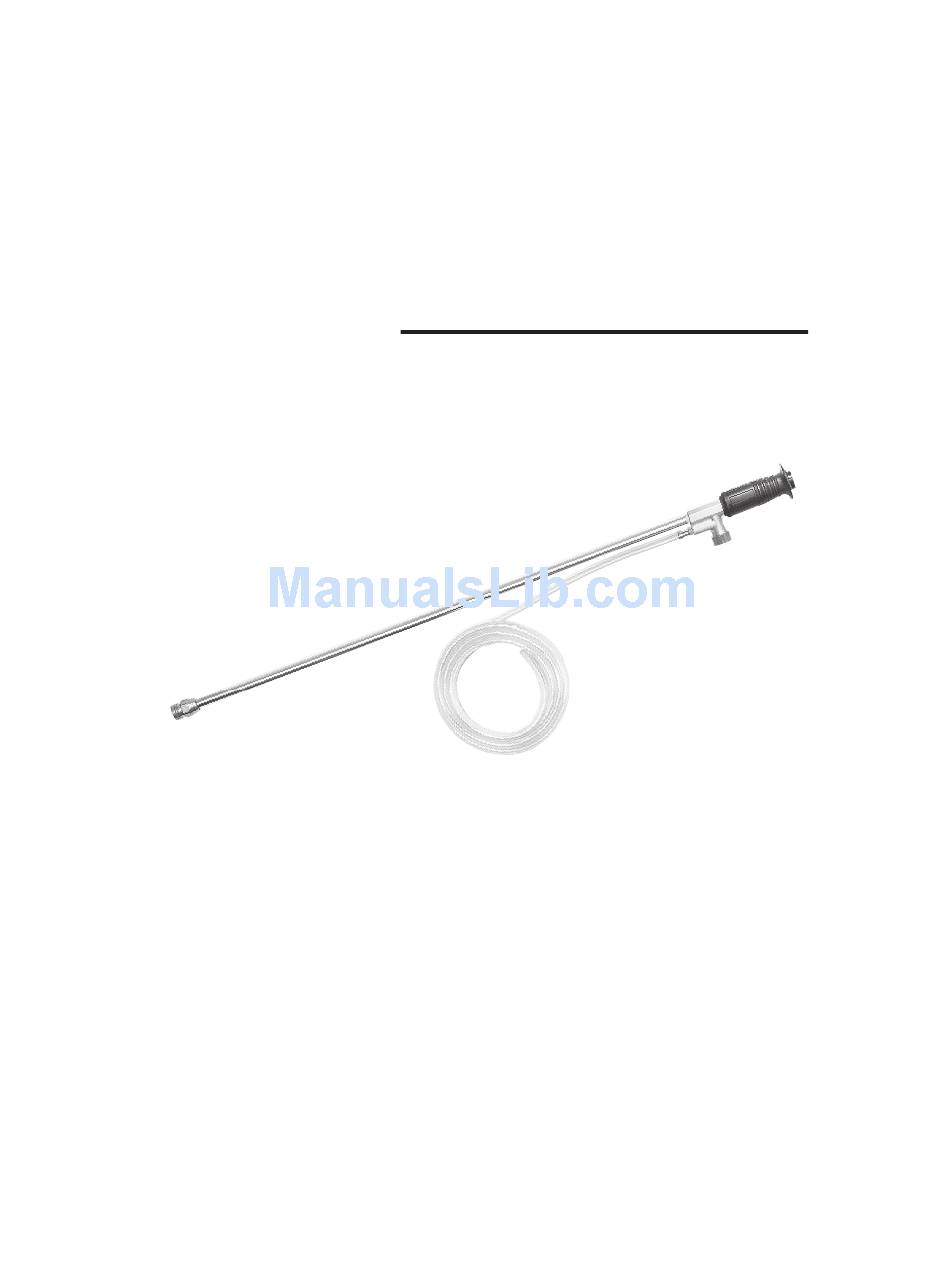

- Page 1 WA130 High Pressure Chemical/Soap Wand • Important Safety Instructions • Assembly • Operation • Maintenance • Service Information D20443 Rev. 0 3/14/00...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDER- STAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING. HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT • Some cleaning fluids •... - Page 3 IMPORTANT SAFETY INSTRUCTIONS HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT • Never place hands in front • Your washer operates at WARNING of nozzle. fluid pressures and velocities high enough to • Direct spray away from self RISK TO FLUID penetrate human and and others.
-
Page 4: Operating Instructions
OPERATING INSTRUCTIONS Choosing the Correct Nozzle This accessory was designed to be used with more than one pressure washer. Refer to the chart below to determine the correct nozzle for your unit. Select the combina- tion of water pressure (psi) and water flow (gpm) that most closely resembles the rating of your pressure washer. -
Page 5: Operation
OPERATING INSTRUCTIONS Depress the trigger on the gun to Adjusting Chemical Flow begin spraying. Release trigger to Turn the knob on the high pressure stop spraying. soap wand to adjust the soap flow. Turn knob counterclockwise for more soap (+) and clockwise for less soap (-). -
Page 6: Maintenance
OPERATING INSTRUCTIONS MAINTENANCE Clean the nozzle using the nozzle cleaner provided or a straightened Nozzle Cleaning paper clip. Insert into the nozzle end and work back and forth until If the nozzle becomes clogged with obstruction is removed. foreign materials, such as dirt, exces- sive pressure may develop. -
Page 7: Service Information
SERVICE INFORMATION Retain Original Sales Receipt as Proof of Purchase for Warranty Repair Work. SERVICE PARTS Part No. Description N0120 Nozzle 1.2 Bright Yellow N0130 Nozzle 1.3 Orange N0140 Nozzle 1.4 Beige NCT001 Cleaning Tool D20667 2 mm Allen wrench C013 Screen, Filter D20044... -
Page 8: Limited Warranty
All decisions of DeVilbiss Air Power Company Manufacturing with regard to this policy shall be final. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
