Summary of Contents for Art CX310

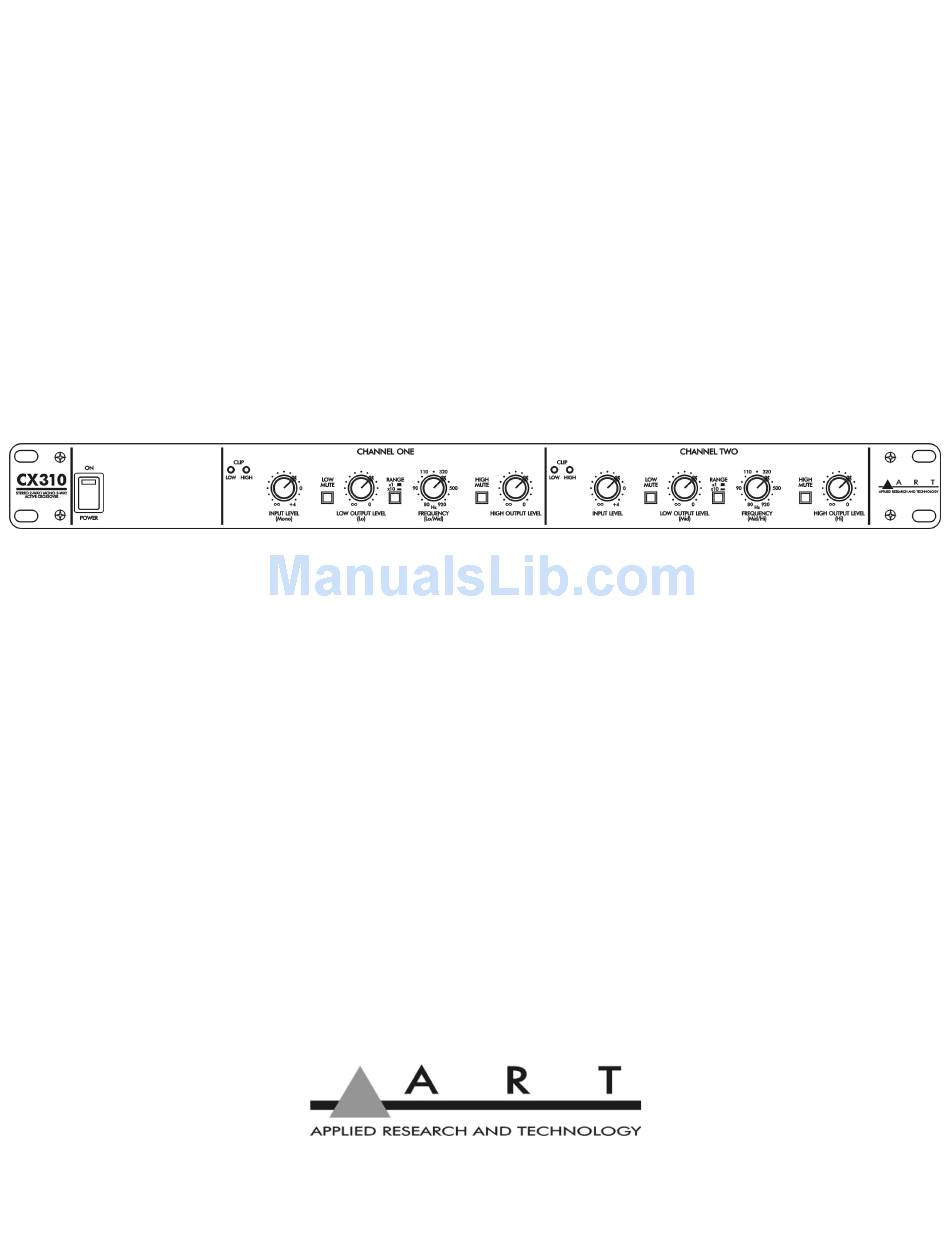

- Page 1 CX310 Stereo 2-Way / Mono 3-Way Active Crossover USER'S GUIDE...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS – READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. -
Page 3: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS – READ FIRST ............2 OVERVIEW ..............................4 Features ................................. 4 INSTALLATION ............................5 AC Power Hookup............................5 Input/Output Connections..........................5 Mono 3-Way Configuration ..........................5 Connections: .............................. 5 Controls: ..............................5 OPERATION ..............................6 FRONT PANEL CONTROLS ......................... -
Page 4: Overview
This ensures the proper acoustic summing of common signals from adjacent drivers in the crossover region. The CX310 may be used as either a stereo 2-way crossover network, splitting the signal in each channel into two separate frequency ranges (Lo and Hi), or as a mono 3-way crossover network, splitting one signal into three separate frequency ranges (Lo, Mid and Hi). -
Page 5: Installation
INSTALLATION The ART CX310 may be used in a wide variety of applications and environments. Enclosed in a 1U (1.75 inches high) rack-mountable, all-steel enclosure, the unit is designed for continuous professional use. The depth is 6.5 inches, exclusive of the power cord. Mounting location is not critical. -
Page 6: Operation
POWER SWITCH The POWER switch applies and removes power to the unit. Make sure that all equipment after the CX310 is either off or the outputs are turned all the way down before turning the CX310 on or off. CLIP INDICATORS Separate HIGH and LOW CLIP indicators are provided for each channel of the CX310. -
Page 7: Crossover Frequency Controls And Range Switches
Inserting a plug into a 1/4" jack disconnects the associated XLR connector. MONO/STEREO MODE SWITCH This switch configures the CX310 for stereo 2-way operation with the switch in the out position or for mono 3-way operation with the switch in the in position. -
Page 8: Applications
Initial Setup Tips Set all level controls to their full counter-clockwise position. Connect the output(s) of your mixer (or equalizer) to the input(s) of the CX310. If stereo, Channel One is left. Connect the LOW OUTPUT of each channel (LOW OUTPUT of Channel One for mono 3-way configuration) to the power amplifier powering the low frequency cabinet(s). -
Page 9: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. -
Page 10: Service
You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. You may contact Customer Service for more assistance, or directly request a Return Authorization for service in the “resources”... -
Page 11: Specifications
Weight 7.1 lbs. (3.2 kg) ART maintains a policy of constant product improvement. ART reserves the right to make changes in design or make additions or improvements to this product without any obligation to install these changes on products previously manufactured. Therefore, specifications are subject to change... - Page 12 E-mail: support@artproaudio.com © 2010 Applied Research & Technology CX310 V1.1...
