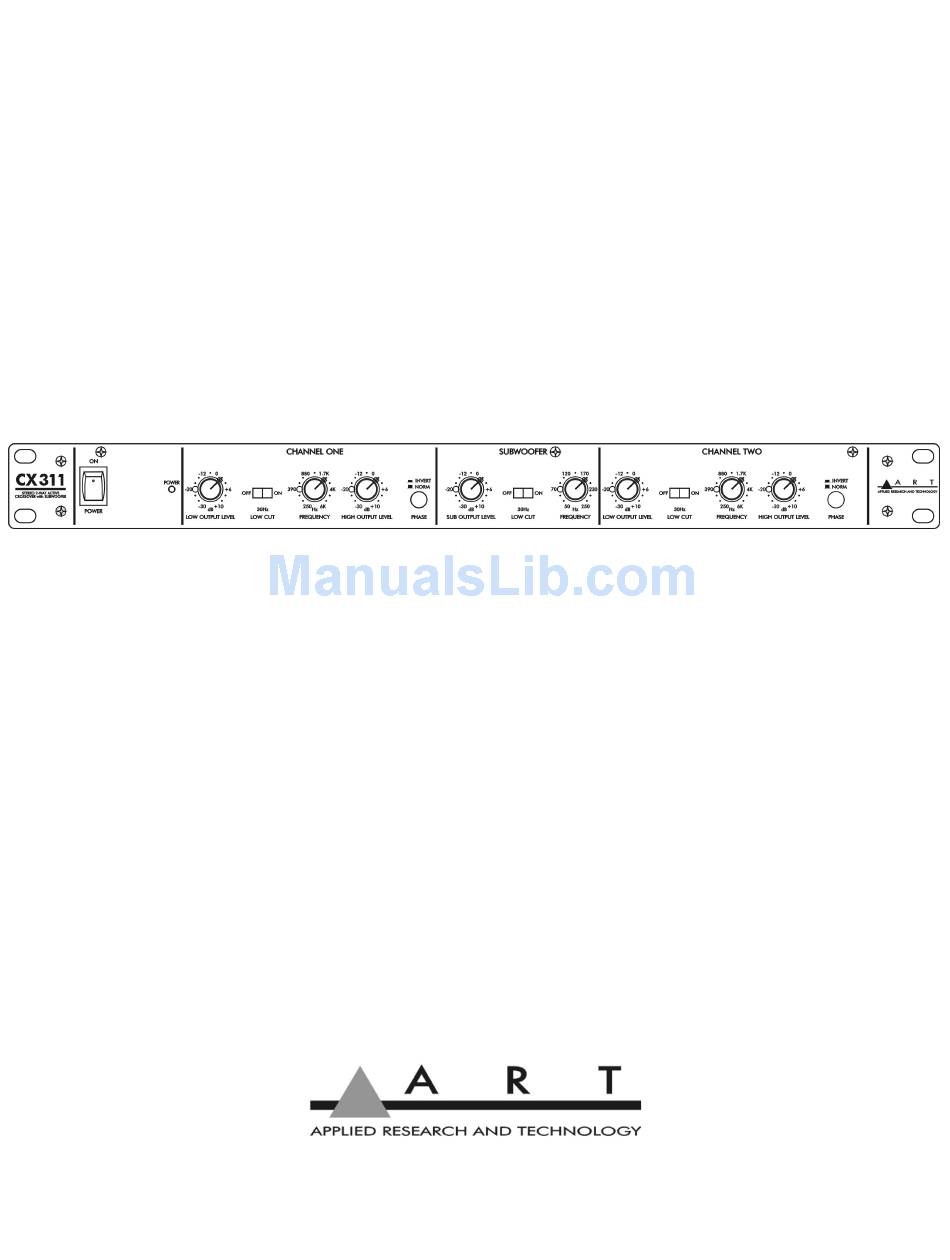

- Page 1 CX311 Stereo 2-Way Active Crossover with Subwoofer Output USER'S GUIDE...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS – READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. -
Page 3: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS – READ FIRST ............2 OVERVIEW ..............................4 Features ................................. 4 INSTALLATION ............................5 AC Power Hookup............................5 Input/Output Connections..........................5 OPERATION ..............................6 FRONT PANEL CONTROLS ........................ 6 Power Switch .............................. 6 Low Output Level Controls ......................... 6 Low Cut Filter Switch .......................... -
Page 4: Overview
OVERVIEW The ART CX311 Stereo 2-Way Active Crossover with Subwoofer Output offers a superb level of sound quality and its straightforward user interface gives you quick and easy access to all of its features. Designed for home, club, or DJ system applications or live sound reinforcement, the CX311 employs 24dB/ octave state-variable, fourth-order, Linkwitz-Riley filters. -
Page 5: Installation
INSTALLATION The ART CX311 may be used in a wide variety of applications and environments. Enclosed in a 1U (1.75 inches high) rack-mountable, all-steel enclosure, the unit is designed for continuous professional use. The depth is 5 inches. Mounting location is not critical. However, for greater reliability, we recommend that you not place the unit on top of power amps or other sources of heat. -
Page 6: Operation
The POWER switch applies and removes power to the unit. Make sure that all equipment after the CX311 is either off or the outputs are turned all the way down before turning the CX311 on or off. LOW OUTPUT LEVEL CONTROLS Each channel of the CX311 has a LOW OUTPUT LEVEL control. -
Page 7: Sub Output Level Control
switches in the out (NORM) position. Pushing a button in (INVERT position) may be used to help correct audible phase-related problems. SUB OUTPUT LEVEL CONTROL This control is used to trim the audio output level to the SUBWOOFER OUTPUT jack on the rear of the unit. -
Page 8: Applications
Initial Setup Tips Set all level controls to their full counter-clockwise position (-30dB.) Connect the outputs of your mixer (or equalizer) to the inputs of the CX311. If stereo, Channel One is left. Connect the LOW output of Channel One to the power amplifier powering the low frequency cabinets (left). -
Page 9: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. -
Page 10: Service
You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. You may contact Customer Service for more assistance, or directly request a Return Authorization for service in the “resources”... -
Page 11: Specifications
Weight 6.2 lbs. (2.8 kg) ART maintains a policy of constant product improvement. ART reserves the right to make changes in design or make additions or improvements to this product without any obligation to install these changes on products previously manufactured. Therefore, specifications are subject to change... - Page 12 E-mail: support@artproaudio.com © 2010 Applied Research & Technology CX311 V1.1...
