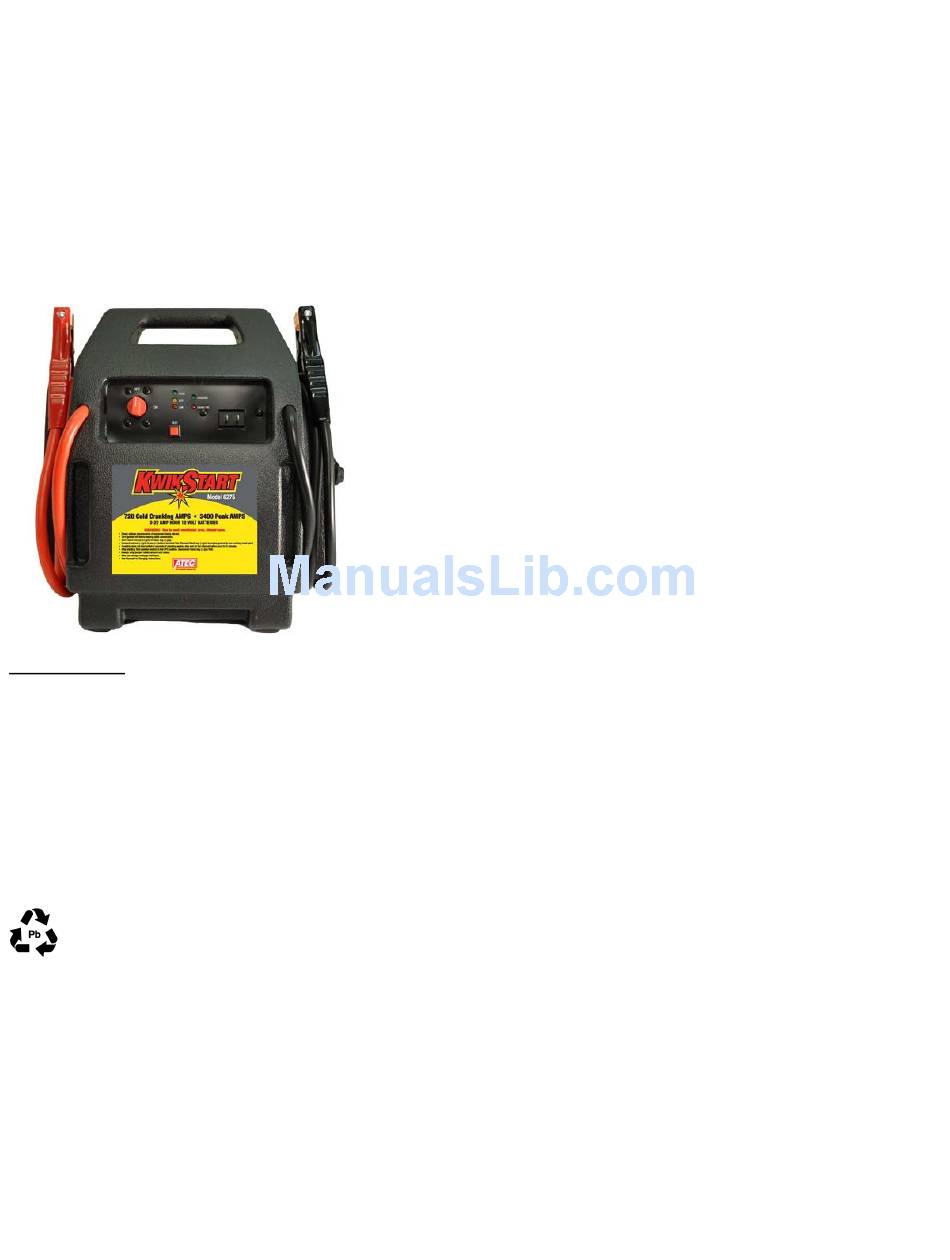

Atec 6275 KWIKSTART User Manual

(12 Volt DC Portable Power Source)
This unit has a sealed lead acid battery that should be kept at full charge. Recharge when first
received, immediately after each use, and every three months if not used (this charger
contains a smart circuit which allows it to be left on charge continuously without damage).
Failure to do this may cause the battery life to be reduced greatly.

SPECIFICATIONS

Voltage: 12 VDC
Peak-Amp power: 12V-3400A
12V output and charging protected socket
Battery type: 2-12V/22AH 360CCA (12V 720 CCA)
Internal Charger: 12V / 1000mA
Booster cables: 2AWG with insulated clamps
Automatic charging circuit
Charging and Charged LED indicators
Multiple LED power level indicators

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS
1.
important safety and operating instructions.
Contains sealed, non-spillable lead acid
battery. Must be disposed of properly.
WARNING
2. – RISK OF EXPLOSIVE GASES.
a. Working in the vicinity of a lead acid battery is dangerous.
Batteries generate explosive gases during normal battery
operation. For this reason, it is of utmost importance that when
using the KWIKSTART, you read this manual and follow the
instructions exactly.
b. To reduce risk of battery explosion, follow these instructions and
those published by battery manufacturer and manufacturer of any
Consumer: Retain these instructions for future use. Read all instructions carefully before using this KWIKSTART
(Portable Power Source).
Model 6275 KWIKSTART
USER'S MANUAL
– This manual contains
equipment you intend to use in vicin
cautionary marking on these products and on engine.
P ERSONAL PRECAUTIONS
3.
a. Someone should be within range of your voice or close enough to
come to your aid when you work
b. Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing, or eyes.
c. Wear complete eye protection, and clothing protection. Avoid
touching eyes while working near battery.
d. If battery acid contacts skin or clothing, wash immediately w
soap and water. If acid
running cold water for at least 10 minutes and get medical
attention immediately.
e. NEVER smoke or allow a spark or flame in vicinity of battery o
engine.
f. Be extra cautious to reduce risk
battery. It might spark or short circuit battery or other ele
part that may cause explosion.
g. Remove personal metal items such as rings, bracelets,
necklaces, and watches when working with a lead-acid ba
lead-acid battery can produce a short circuit current high enou
to weld a ring or the like to metal, causing a severe burn.
h. Use this KWIKSTART for charging or boosting a LEAD-ACID
battery only. Do not use for charging dry-cell batteries that a
commonly used with home applia
burst and cause injury to persons and damage to property.
i. NEVER charge a frozen ba
j. NEVER allow clamps to touch together or contact
of metal to prevent arcing.
IM PORTANT SAFETY INSTRUCTIONS
4.
a. Use of an attachment not recommended or sold by the
manufacturer may result in a risk of fire, electric shock, or injury to
persons.
b. When using the internal charger or DC power extension cord, pull
on the plug and NEVER ON THE WIRE when discon
c. Do not recharge the KWIKSTART with a damaged charger or DC
power extension cord. Replace th
d. The KWIKSTART may be u
snow, hot, or cold temperatures.
e. Do not submerge in water.
f. Do not operate with flammables such as gasoline etc...
g. If the KWIKSTART receives a sharp blow or is otherwise
damaged, in any way, have it checked by a qualified
person. If the KWIKSTART is leaking battery acid do not ship
Take it to the closest batte
h . Do not disassemble the KWIKSTART. Have it checked by a
qualified service person.
The KWIKSTART should never be left in a total discharged
any period of time. Damage to the battery could be permanent with
poor performance as a re
KWIKSTART's internal charger connected to AC power or recharge
every three (3) months.
1
ity of battery. Review
near a lead-acid battery.
enters eyes, immediately flood eyes with
of dropping a metal tool onto
nces. These batteries may
ttery.
em immediately.
sed under any weather condition; rain,
ry recycler in your area.
sult. When not in use, leave the
ith
r
ctrical
ttery. A
gh
re
the same piece
necting.
service
it.
state for
