Atec 2162 Quick Start Manual

4a.
Connect the ground stud to the
equipment enclosure's earth ground points.
4b.
Connect a wired AC mains connector
Amphenol P/N 97-3106A20-19S or equivalent
Connector Pinout
Pin A -- Neutral
Pin B -- Load
Pin C – Ground
System is rated to operate with an input
voltage range of 180-260VAC 47-63 Hz.
Maximum AC power consumption at 1 kW RF
output is 6kW.
A customer furnished circuit breaker upstream
to the system is required.
5.
Flip the circuit breaker to the
UP position. The internal fans will
turn on in
seconds. The single screen front
panel LCD screen will appear when
the system is ready for operation.
(~1.5 minutes). RF input required:
0 dBm +/- 5 dB
®
Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)
Quick Start Guide/Model 2162
READ AND FOLLOW THE OPERATING MANUAL
BEFORE TRANSMITTING RF POWER

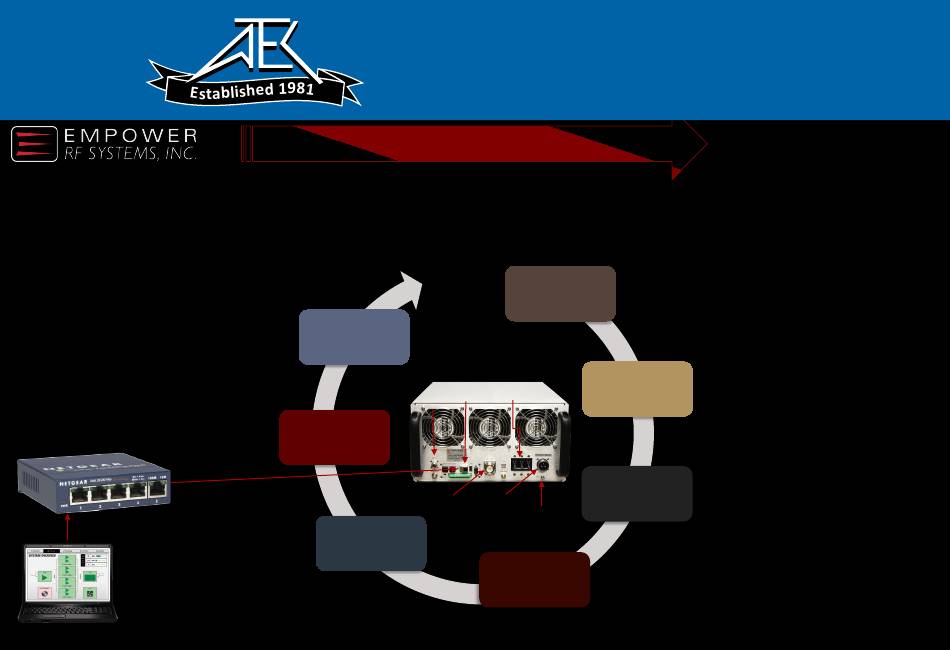

7. Remote
operation
6. IP Address
setting
5. System is On
approximately 30
1. Termination
Connection
2. Signal Source
3
5
Connection
2
3. Ethernet
1 4b
Connection
4a
4. Power up
1. 2.
Connect an Connect a
appropriately rated suitable signal
50 Ω termination to source to the N-type
the 7/16" RF output RF Input connector.
connector. This Nominal input power
power amplifier is is 0 dBm.
capable of
generating > 1kW of If sample port is not
RF power. Failure to used, terminate with
properly terminate an SMA 50 ohm load.
the RF output can
result in serious
injury to personnel.
3.
Using standard Ethernet cabling,
connect both the 2162 system and an
external PC to an Ethernet switch.
This will allow access to the system's
embedded web GUI and the UDP/IP
interface.
This is required to access full system
capability. Without this connection the
system can only be operated with the front
panel LCD screen, using factory settings of
ALC operation at full RF output power.
Remote operation through an external PC is
required to change operational modes and
power settings, and to view advanced
diagnostics.
See Step 7 for details on setting up the
remote web interface. See operating
manuals for details on UDP/IP interface.
