D-Link DSL-3580L User Manual
1

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-3580L

Summary of Contents for D-Link DSL-3580L

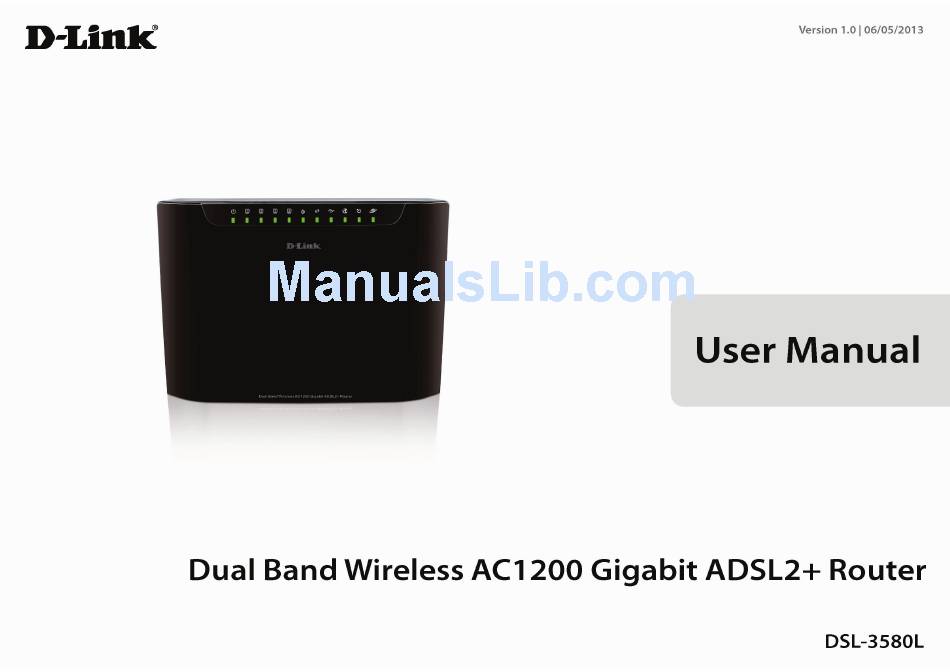

  • Page 1 Table of Content D-Link DSL-3580L User Manual...

  • Page 2: Table Of Contents

    SNMP SETUP ............... 75 Information you need from the Internet service provider . 14 PARENTAL CONTROL ............76 Information you need to know about DSL-3580L ....16 ROUTING SETUP ..............77 Information you will need about your LAN or computer: . 17 Wi-Fi PROTECTED SETUP ..........
  • Page 3 NETWORKING BASICS ............108 CHECK YOUR IP ADDRESS ..........108 STATICALLY ASSIGN AN IP ADDRESS ....... 109 FCC CAUTION ................ 110 IC CAUTION ................111 CONTACTING TECHNICAL SUPPORT ......... 112 D-LINK LINK’N PRINT ............113 TECHNICAL SPECIFICATIONS ..........120 D-Link DSL-3580L User Manual...

  • Page 4: Package Contents

    Section 1 - Product Overview Package Contents • DSL-3580L Dual Band Wireless AC1200 Gigabit ADSL2+ Router • 2 Internal Antenas (MIMO 2x2) • Power Adapter • CD-ROM with Installation Wizard, User Manual, and Special Offers • One twisted-pair telephone cable used for ADSL connection •...

  • Page 5: System Requirements

    • CD-ROM Drive • Ethernet Adapter with TCP/IP Protocol Installed • Windows 8/7/vista/XP/2000z • MAC OS • Internet Explorer v6 or later, FireFox v1.5 2. DCC (D-Link Click's Connect) Utility Computer with: • MS Windows – Win7/Vista/XP/2000 D-Link DSL-3580L User Manual...

  • Page 6: Introduction

    ULTIMATE INTERNET CONNECTION The DSL-3580L ADSL2+ router is a versatile, high-performance remote router for home and the small office. With integrated ADSL2/2+ supporting up to 24Mbps download and 2.7Mbps upload speed, Gigabit Ethernet WAN Port, firewall protection, Quality of Service (QoS), 802.11ac wireless LAN and 4 Gigabit Ethernet LAN switch ports, this router provides all the functions that a home or small office needs to establish a secure and high-speed remote link to the outside world.

  • Page 7: Features

    • Network Address Translation (NAT) - For small office environments, the DSL-3580L allows multiple users on the LAN to access the Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user. NAT improves network security in effect by hiding the private network behind one global and visible IP address.
  • Page 8 *Maximum wireless signal rate derived from IEEE standard 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. D-Link DSL-3580L User Manual...

  • Page 9: Hardware Overview - Connections

    Giga Ethernet ports Push in to power-on the To connect the Router to To connect the Router to Router. Push again to front end Bridge Modem your Ethernet LAN or power-off the Router device Ethernet LAN Ethernet devices D-Link DSL-3580L User Manual...
  • Page 10 Ethernet port. established between the router and the client. The LED will remain in solid Blue for 5 seconds. Steady Green light indicates a successful USB connection. Dark if no USB device is plugged. D-Link DSL-3580L User Manual...

  • Page 11: Installation

    Before you Begin Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand before beginning the installation. D-Link DSL-3580L User Manual...

  • Page 12: Installation Notes

    Operating Systems The DSL-3580L uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, and Windows XP, Windows 7, Windows 8.
  • Page 13 DSL-3580L through the wireless interface. Security for wireless communication can be accomplished in a number of ways. DSL-3580L supports WPA (Wi-Fi Protected Access), WPA2, and mixed WPA/WPA2. Wireless access can also be controlled by selecting MAC addresses that are allowed to associate with the device. Please read the section on Wireless Configuration.

  • Page 14: Information You Need From The Internet Service Provider

    Modulation Type drop-down menu on the ADSL Configuration window (Advanced > ADSL) Security Protocol This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router supports the PAP and CHAP protocols. D-Link DSL-3580L User Manual...
  • Page 15 ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface. D-Link DSL-3580L User Manual...

  • Page 16: Information You Need To Know About Dsl-3580L

    IP address used for DHCP service on the LAN when DHCP is enabled. LAN Subnet Mask for the DSL-3580L This is the subnet mask used by the DSL-3580L, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be changed later.

  • Page 17: Information You Will Need About Your Lan Or Computer

    Ethernet NIC If your computer has an Ethernet NIC, you can connect the DSL-3580L to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the DSL-3580L to connect to other computer or Ethernet devices.

  • Page 18: Wireless Installation Considerations

    1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

  • Page 19: Device Installation

    Device Installation DSL-3580L Daul Band 802.11ac Wireless ADSL2+ Gigabit Ethernet Router maintains four separate interfaces, an Ethernet LAN, a wireless LAN, an Ethernet WAN and an ADSL Internet (WAN) connection. Carefully consider the Router’s location suitable for connectivity for your Ethernet and wireless devices.

  • Page 20: Factory Reset Button

    (MDI-II) port on a hub or switch. The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters. D-Link DSL-3580L User Manual...
  • Page 21 MDI-X ports (1x, 2x, etc.) with a crossed cable. Computer to Router Connection You can connect the Router directly to a 10/100/1000 BASE-TX Ethernet adapter card (NIC) installed on a PC using the straight-through 8P8C RJ-45 Ethernet cable provided as shown in this diagram. D-Link DSL-3580L User Manual...

  • Page 22: Configuration

    Section 3 - Configuration Configuration This section will show you how to configure your new D-Link wireless router using the web-based configuration utility. Web-based Configuration Utility Connect to the Router To configure the WAN connection used by the Router it is first necessary to communicate with the Router through its management interface, which is HTML-based and can be accessed using a web browser.

  • Page 23: Setup

    Click on the Setup button located over ADSL INTERFACE if you want to configure ADSL Interface WAN. ETH INTERFACE Click on the Setup button located over ETHERNET WAN INTERFACE if you want to configure Ethernet WAN. D-Link DSL-3580L User Manual...
  • Page 24 Setup Wizard button to configuring router step-by-step. MANUAL ADSL CONNECTION SETUP Please select the connection type for your internet connection. If your Internet service supported IPv6, you can click Enable IPv6 for this service to setup IPv6 in this connection D-Link DSL-3580L User Manual...
  • Page 25 DNS AND DEFAULT GATEWAY Select Obtain DNS server address automatically to get DNS from your ISP. Or Select Use the following DNS server addresses to specify the DNS server IPs in the Preferred DNS server and Alternate DNS server. D-Link DSL-3580L User Manual...
  • Page 26 Set VPI/VCI, enable the Enable NAT Enable the Enable Firewall when you want to have the basic filter function, for example, ICMP ping to DSL-3580L. Enable the Enable IGMP Multicast Proxy to send IGMP query packets to the IPTV clients.
  • Page 27 Set VPI/VCI, enable the Enable NAT. Enable the Enable Firewall when you want to have the basic filter function, for example, ICMP ping to DSL-3580L. Enable the Enable IGMP Multicast Proxy to send IGMP query packets to the IPTV clients.
  • Page 28 DNS AND DEFAULT GATEWAY Select Obtain DNS server address automatically to get DNS from your ISP. Or Select Use the following DNS server addresses to type the DNS IP in the Preferred DNS server and Alternate DNS server. D-Link DSL-3580L User Manual...
  • Page 29 Set VPI/VCI, enable the Enable NAT. Enable the Enable Firewall when you want to have the basic filter function, for example, ICMP ping to DSL-3580L. Enable the Enable IGMP Multicast Proxy to send IGMP query packets to the IPTV clients.
  • Page 30 To click Setup button from ETHERNET WAN INTERFACE to initiate This section is same as previous MANUAL ADSL CONNECTION Ether WAN configuration. SETUP section. Here you pick up the connection type, enter access authorization information, DNS server D-Link DSL-3580L User Manual...

  • Page 31: Wireless Setup

    Section 3 - Configuration WIRELESS SETUP Use this section to configure the wireless settings for your D-Link router. Please note that changes made in this section will also need to be duplicated onto your wireless clients and PC. To access the WIRELESS (WLAN) settings window, click on the Wireless Setup button in the SETUP tab.
  • Page 32 Section 3 - Configuration Welcome to the D-Link Wireless Security Setup Wizard Enable Your Wireless Network Your wireless network is enabled by default. You can simply uncheck the below checkbox to disable wireless Network Name (SSID) identifies members of the Service Set. Accept the default name or change it to something else.
  • Page 33 PBC-- Please press the Connect button and hold on for 3 seconds on your wireless device and presses the Connect button below within 120 seconds to start the handshaking. Click Prev to go back to previous page. D-Link DSL-3580L User Manual...
  • Page 34 Please type network key on the Network Key Click OK button to process the next page. Add Wireless Device with WPS (WI-FI PROTECTED SETUP) Finally it will show all the configurations. You can check if it is exact, please click the Next button. D-Link DSL-3580L User Manual...
  • Page 35 Section 3 - Configuration Manual WIRELESS Connection Setup SETTINGS DSL-3580L comes with 2 physical wireless interfaces (known 2.4GHz and 5GHz). Click on the Enable Wireless box to activate the wireless interface. You can use the Add New button to create a schedule and apply to the wireless interface.
  • Page 36 20/40 MHz Auto (up to 400Mbps at 40MHz) or 20/40/80 MHz Auto mode (up to 866Mbps at 80MHz). Visibility Status Choose Visible or Invisible to decide if you want to have the SSID hidden for better security. D-Link DSL-3580L User Manual...
  • Page 37 Enter the key into the WEP Key field 1~4. (Key length is outlined at the bottom of the window.) Select Authentication type from the drop-down menu. (Shared is better than Open) Click on the Apply Settings button to apply settings. D-Link DSL-3580L User Manual...
  • Page 38 Type the value seconds on the Group Key Update Interval. The default value is 1800. WPA / WPA2 -PSK (Personal) Type the string on the Pre-Shared Key Click the Apply Settings button to save the configuration. D-Link DSL-3580L User Manual...
  • Page 39 802.1X security measures to overcome some weaknesses in standard WEP applications. A RADIUS server is used to authenticate all potential users. . Enter your RADIUS server data: IP Address, Port, and Key. Click on the Apply Settings button to apply settings. D-Link DSL-3580L User Manual...

  • Page 40: Lan Setup

    192.168.1.254. The IP address pool can be up to 253 IP addresses. Set the value hours on the DHCP Lease Time If you don’t want DSL-3580L to be the DHCP server, you can enable DHCP relay to pass the DHCP discover packets of the clients to another DHCP server.
  • Page 41 After saved the DHCP reservation, the DHCP RESERVATIONS LIST will list the configuration. The NUMBER OF DYNAMIC DHCP CLIENTS shows amount of DHCP clients (PC or Laptop) connected to the router currently. Click on the Save Settings button. D-Link DSL-3580L User Manual...

  • Page 42: Time And Date

    NTP (Network Time Protocol) Server. Daylight Saving can also be configured to automatically adjust the time when needed. To access the TIME setting window, click on the Time and Date button in the SETUP tab D-Link DSL-3580L User Manual...
  • Page 43 Daylight Saving time at 2 A.M. Thus, in the United States you must use March, Second, Sunday, at 2:00 A.M. Daylight Saving time starts in the European Union on the last Sunday of March. Thus, in D-Link DSL-3580L User Manual...
  • Page 44 You can also use the Copy Your Computer’s Time Settings to synchronize the Date and Time to your local PC. Or, you also can adjust Year/Month/Day/Hour/Minute/Second manually. Please click the Apply button to save the configuration. D-Link DSL-3580L User Manual...

  • Page 45: Ipv6

    IPv6 INTERFACE Choose the IPv6 Interface in the drop-down menu. IPv6 CONNECTION TYPE Choose the IPv6 internet connection type from the drop-down menu: • Link-local only • Static IPv6 • Autoconfiguration (SLAAC/DHCPv6) • PPPoE • DS-Lite D-Link DSL-3580L User Manual...
  • Page 46 Section 3 - Configuration IPv6 Connection Type: Link-local only LAN IPv6 ADDRESS SETTING Link-local only is communication with in internal network. The LAN IPv6 Link-local Address is used as default setting. D-Link DSL-3580L User Manual...
  • Page 47 SLAAC+RDNSS to set computers on Router network obtained IPv6 address by RDNSS Stateful DHCP to set computers on Router network obtained IPv6 address by Stateful DHCP, you need type the IPv6 Address Range (Start and End) D-Link DSL-3580L User Manual...
  • Page 48 SLAAC+RDNSS to set computers on Router network obtained IPv6 address by RDNSS Stateful DHCP to set computers on Router network obtained IPv6 address by Stateful DHCP, you need type the IPv6 Address Range (Start and End) D-Link DSL-3580L User Manual...
  • Page 49 LAN IPv6 ADDRESS SETTINGS Enable DHCP-PD to use Prefix Delegation assigned IPv6 Prefix. Or you can change the LAN IPv6 Address. ADDRESS AUTOCONFIGURATION SETTINGS SLAAC+Stateless DHCP to set computers on Router network obtained IPv6 address by stateless DHCP. D-Link DSL-3580L User Manual...
  • Page 50 End) IPv6 Connection Type: DS-Lite Choose DS-Lite DHCPv6 Option, If you choose Manual Configuration, need type the AFTR IPv6 Address. Type B4 IPv4 Address (if necessarily) Type WAN IPv6 Address and IPv6 WAN Default Gateway. D-Link DSL-3580L User Manual...

  • Page 51: Usb Setup

    To access the USB SETUP setting window, click on the USB SETUP button in the SETUP tab USB NETWORK PRINTER SERVER D-Link Link’n Print allows you to share your USB printer as a network printer server to all the connected local hosts.
  • Page 52 To setup USB Storage Server, press Setup button in STORAGE SETUP window enter the server configuration page USB DEVICE STATUS can check the USB Device Status and press Status Refresh button to refresh the status. Press Safely Remove Device button to safely remove device. D-Link DSL-3580L User Manual...
  • Page 53 Setup the Port Name, Maximum connection, and Idle timeout of FTP file server. You can remote access when the Remote Access was hooked. You can check Add, Edit and Delete the user in the FTP SERVER USER PROFILE. D-Link DSL-3580L User Manual...
  • Page 54 Click Setup button in 3G USB MODEM SETUP window to configure 3G USB MODEM Enable the Enable 3G USB Modem Type the PIN Code, Telephone Number (known the dial up phone number) and APN, which provide by your 3G ISP. D-Link DSL-3580L User Manual...

  • Page 55: Advanced

    Section 3 - Configuration ADVANCED This chapter includes the more advanced features used for network management and security as well as administrative tools to manage the router, view status and other information used to examine performance and for troubleshooting. D-Link DSL-3580L User Manual...

  • Page 56: Port Forwarding

    (WAN-to-LAN traffic). The Port Forwarding function allows remote users to access services on your LAN such as FTP for file transfers or SMTP and POP3 for e-mail. The DSL-3580L will accept remote requests for these services at your Global IP Address, using the specified TCP or UDP protocol and port number, and then redirect these requests to the server on your LAN with the LAN IP address you specify.

  • Page 57: Application Rules Configuration

    It will appear the Trigger and Firewall ports after you choose the application name by the drop-down menu. Choose the Use Interface and click the Add/Apply button to save the configuration, and then it will be added in the list. D-Link DSL-3580L User Manual...

  • Page 58: Qos Setup

    WMM No Acknowledge means that the receiver doesn’t have to send back the Acknowledge packet. ADVANCED QoS Setup Click the Wireless QoS button to set wireless data priority. Click the LAN QoS button to set Ethernet data priority. D-Link DSL-3580L User Manual...
  • Page 59 Select the Protocol, ANY, ICMP, TCP and UDP. Set the Source IP Range and the Destination IP Range. Set the Source Port Range and the Destination Port Range. Click the Add/Apply button to add the policy to the list D-Link DSL-3580L User Manual...

  • Page 60: Outbound Filter

    Destination Port (can be single port or port range in “start port::end port” syntax ) Set the policy schedule on the Schedule, Always or never, or View Available Schedules Please click Add/Apply button to add the policy in the list. D-Link DSL-3580L User Manual...

  • Page 61: Inbound Filter

    LAN to WAN Internet Access – Inbound filter will not block WAN to LAN traffic which is initiated from LAN side internet application, e.g. web browsing, sending/receiving email and file transferring. To access the INBOUND FILTER settings window, click on the INBOUND FILTER button in the ADVANCED tab D-Link DSL-3580L User Manual...
  • Page 62 Destination Port (can be single port or port range in “start port::end port” syntax ) Set the policy schedule on the Schedule, Always or never, or View Available Schedules Please click Add/Apply button to add the policy in the list. D-Link DSL-3580L User Manual...

  • Page 63: Wireless Filter

    Type filter name on the FILTER NAME Type wireless MAC address on the Wireless MAC Address WIRELESS FILTER - MAXIMUM 32 ENTRIES CAN BE ADDED. Please click the Add/Apply button to add the policy in the list. D-Link DSL-3580L User Manual...

  • Page 64: Dns Setup

    IP addresses. Using a DDNS service provider, your friends can enter your host name to connect to your game server and your friends don’t mind what your IP address is, and then just type the DDNS name to reach. You can subscribe the free D-Link DDNS service from https://www.dlinkddns.com.
  • Page 65 Please choose which interface name to use on the Interface. Type the username/password on the username/password for your DDNS account. After configure the DNS settings as desired, click on the Apply Setting button to apply settings. D-Link DSL-3580L User Manual...

  • Page 66: Firewall & Dmz

    Check the Enable DOS and Portscan Protection box, you can Choose the below attack firewall setting: SYN attack, FIN/URG/PSH attack, Ping attack, Xmas Tree attack, TCP reset attack, Null scanning attack, Ping of Death attack, SYN/RST SYN/FIN attack. D-Link DSL-3580L User Manual...
  • Page 67 Application Level Gateway (ALG) Configuration Please choose the following ALG to enable: • PPTP (VPN Passthrough) • IPSec (VPN Passthrough) • RTSP(Online Video Streaming) • Windows/MSN Messenger • FTP • H.323(Video Conferencing) • SIP • Wake-On-LAN • MMS D-Link DSL-3580L User Manual...

  • Page 68: Advanced Internet

    The Multiple PVC Settings allow you to Add (up to 8 PVC in total), Delete or Edit multiple PVCs connection for advanced ADSL service. The Advanced ADSL settings allow you to choose which ADSL modulation settings your modem router will support. D-Link does not recommend you to change these settings unless directed to do so by your ISP.
  • Page 69 G.Dmt, G.lite, T1.413, ADSL2, AnnexL, ADSL2+, Annex M (available only on Annex A model) Please choose the Inner pair or Outer pair on the Select the phone line pair below. Please select to enable Bitswap and SRA on the Capability. D-Link DSL-3580L User Manual...

  • Page 70: Advanced Wireless

    ADVANCED WIRELESS These options are for users that wish to change the behavior of their wireless radio from the standard setting. D-Link does not recommend changing these settings from the factory default. Incorrect settings may impair the performance of your wireless radio. The default settings should provide the best wireless radio performance in most environments.
  • Page 71 Please choose Visible or Invisible on the Visibility Status Please select Off/On on the AP Isolation. GUEST WIRELESS SECURITY By default guest wireless domain is not applied with any security. To offer security mechanism, please select the encryption methodology and input pre-share key. D-Link DSL-3580L User Manual...

  • Page 72: Advanced Lan

    Section 3 - Configuration ADVANCED LAN These options are for users that wish to change the LAN settings. D-Link does not recommend changing these settings from factory default. Changing these settings may affect the behavior of your network. To access the Advanced LAN setting window, click on the Advanced LAN button in the ADVANCED tab...

  • Page 73: Port Mapping

    Default group if Remove is checked. Only the default group has IP interface. To access the Port Mapping setting window, click on the Port Mapping button in the ADVANCED tab PORT MAPPING Click Add button to add Port Mapping rule. D-Link DSL-3580L User Manual...
  • Page 74 Choose Grouped LAN Interface from Available LAN Interfaces. Type DHCP vendor IDs in the Automatically Add Clients With the following DHCP Vendor IDs for auto add clients. Click on the Apply Button to save the setting. D-Link DSL-3580L User Manual...

  • Page 75: Snmp Setup

    Community to match with the SNMP query. Please type System Name, System Location and System Contact to describe the DSL-3580L’s related information. Please type the trap IP on the Trap Manager IP Please click the Apply button to save the setting. D-Link DSL-3580L User Manual...

  • Page 76: Parental Control

    To specify Blocked Hour All DAY-24hrs or specific Start Time to End Time. Click on the Block Website button to add web site block rule. INTERNET ACCESS TIME RESTRICTIONS Check the Start Time to End Time and days for Internet Access Restriction Allow or Deny. D-Link DSL-3580L User Manual...

  • Page 77: Routing Setup

    Please type the Destination Network Address and Subnet Mask. Please choose type Use the Gateway IP, Use the IPv4 interface or Use the IPv6 interface to be the routing interface. Click the Apply the button to save the configuration. D-Link DSL-3580L User Manual...
  • Page 78 'Enabled' checkbox for the interface. Click the 'Apply' button to save the configuration, and to start or stop RIP based on the Global RIP mode selected. Please choose the Version and Operation, and then decide to Enable or not. D-Link DSL-3580L User Manual...

  • Page 79: Wi-Fi Protected Setup

    PIN Settings: Choose to click the Reset PIN to Default button or Generate New PIN button to show the PIN on the Current PIN. ADD WIRELESS STATION: Please click the Add Wireless Device with WPS button to set the WPS. D-Link DSL-3580L User Manual...

  • Page 80: Ipv6 Firewall

    Type Rule Name, select Schedule (Schedule Rule can be set as following). Type Source Address Range, select Use Interface and Protocol in drop-down menu. Type Dest Address Range, Dest Port Range and select Use Interface in drop-down menu. D-Link DSL-3580L User Manual...
  • Page 81 Click Add button to add a new schedule. ADD SCHEDULE RULE Type Name for this rule and select Day(s), you can sele All Week or select Day(s). Check All Day-24hr or set Start time to End Time D-Link DSL-3580L User Manual...

  • Page 82: Ipv6 Routing

    To access the IPv6 Routing setting window, click on the IPv6 Routing button in the ADVANCE table STATIC IPV6 ROUTES Click Add button to add Rules. STATIC ROUTE ADD/EDIT Type Rule/Name for this rule. Type Destination IPv6/Prefix, Metric and Gate way IP Address. Select Use Interface in drop-down menu. D-Link DSL-3580L User Manual...

  • Page 83: Budget Quota

    • Before you activated Budget Quota, you MUST activate NTP and have device sytem time adjusted accurately • Before you configure Budgt Quota, please have your WAN inteface connected (otherwise, the WAN interface will not show over the Budget Quota interface option) D-Link DSL-3580L User Manual...

  • Page 84: Logout

    The LOGOUT page enables you to logout of management GUI and as well closes the browser. To access the LOGOUT setting window, click on the Logout button in the SETUP tab LOGOUT Click on the Logout button to logout of the router configuration settings and close the web browser. D-Link DSL-3580L User Manual...

  • Page 85: Maintenance

    Click on the MAINTENANCE tab to reveal the window buttons for various functions located in this directory. PASSWORD The factory default password of this router is 'admin'. To help secure your network, D-Link recommends that you should choose a new password. To access the PASSWORD setting window, click on the PASSWORD button in the MAINTENACE tab...

  • Page 86: Save/Restore Settings

    Please click the Save button on the Save Settings to Local Hard Drive. Please click Browse button to choose the configurations file and then click the Update Settings button to upload. If necessary, please click the Restore Device button to have the default settings. D-Link DSL-3580L User Manual...

  • Page 87: Firmware Update

    Upload button to begin copying the file. The Router will load the file and restart automatically. WARNING: Please DO NOT power off the router during the time device upgrading the firmware image as it may damage the hardware. D-Link DSL-3580L User Manual...

  • Page 88: Remote Management

    Please select Allow All or Deny All on the Remote Admin Inbound Filter Please type a string to describe the action on the Details. REMOTE ACCESS CONTROL To tick the specific Service(s) which you wish to enable over the device LAN interface or the device WAN interface D-Link DSL-3580L User Manual...

  • Page 89: Diagnostics

    Connection and Test ADSL Synchronization and they will show PASS or FAIL INTERNET CONNECTIVITY Check There are Ping ISP Default Gateway/ Primary DNS server and they will show PASS or FAIL Please click the Test button to Diagnostic the above test items. D-Link DSL-3580L User Manual...

  • Page 90: Ping Test

    You can type Host Name or IP Address and click Ping button IPv6 PING TEST You can type Host Name or IPv6 Address and click Ping button PING RESULT When you click Stop button, the ping results will show in PING RESULT windows D-Link DSL-3580L User Manual...

  • Page 91: System Log

    Mode: Display mode of system log. Local: Display on local host only Server IP Address: IP address of the remote system log server Server UDP Port: UDP port number of the remote system log server D-Link DSL-3580L User Manual...
  • Page 92 Please Enable the On Log Full. When the log file is full, the system will send mail to the mail address you set. View System Log The system will show logs in the list by Date/Time, Facility, Severity and Message. Please click the Apply Settings button to save the configuration. D-Link DSL-3580L User Manual...

  • Page 93: Schedule

    Press Add / Edit / Delete button to modify your SCHEDULE RULE list. ADD SCHEDULE RULE Type Name for your schedule. Select Day(s) or ALL Day-24hrs to active your firewall and type Star Time to End Time. Click the Apply the button to save the configuration. D-Link DSL-3580L User Manual...

  • Page 94: Status

    Internet configuration (both wireless and Ethernet status). To access the DEVICE INFO setting window, click on the Device Info button in the STATUS tab. This window displays current SYSTEM INFO, INTERNET INFO, WIRELESS INFO and LOCAL NETWORK INFO. D-Link DSL-3580L User Manual...
  • Page 95 This window displays WAN information including IP address, Mask, Default Gateway, Primary/Secondary DNS Server. WIRELESS LAN This session displays the 2.4GHz and the 5GHz wireless interface On/Off status, SSID names, wireless channel selected and security mode currently employed. D-Link DSL-3580L User Manual...
  • Page 96 This session show you USB 3G dongle signal strength and as well the operation mode. When internet connection dropped unexpectedly, you can check here to find out whether the root cause is related to poor signal strength. D-Link DSL-3580L User Manual...

  • Page 97: Connected Clients

    This window displays authenticated wireless stations and their status. CONNECTED LAN CLIENTS This window displays all the entities which link to the LAN interface successfully. You can choose to block which entities and click the Block button D-Link DSL-3580L User Manual...

  • Page 98: Statistics

    To access the STATISICS window, click on the Logs button in the STATISICS tab. WAN STATISTICS This window displays all the Receiver and Transmitted packet status on the WAN interface. LAN STATISTICS This window displays all the Receiver and Transmitted packet status on the LAN interface. D-Link DSL-3580L User Manual...
  • Page 99 Section 3 - Configuration ADSL STATISTICS This window displays all the ADSL status You can click the ADSL BER Test button to test the ADSL connection. You can click the Reset Statistics button to set all statistics to recount. D-Link DSL-3580L User Manual...

  • Page 100: Routing Info

    To access the ROUTE INFO setting window, click on the ROUTE INFO button under the STATUS tab. The Route Info section displays route information showing the IP addresses of the destination, gateway, and subnet mask as well as other route information D-Link DSL-3580L User Manual...

  • Page 101: Ipv6 Status

    Section 3 - Configuration IPv6 STATUS To access the IPv6 Status setting window, click on the IPv6 Status button under the STATUS tab. All of your IPv6 Internet and network connection details are displayed on this page. D-Link DSL-3580L User Manual...

  • Page 102: Ipv6 Routing Info

    Section 3 - Configuration IPv6 ROUTING INFO To access the IPv6 Routing Info setting window, click on the IPv6 Routing Info button under the STATUS tab. This Routing page displays the IPv6 routing policies currently configured on your router. D-Link DSL-3580L User Manual...

  • Page 103: Troubleshooting

    1. Why can’t I access the web-based configuration utility? When entering the IP address of the D-Link router (192.168.1.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself.
  • Page 104 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for the web management.

  • Page 105: Appendix

    D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when and where you want it.
  • Page 106 PDAs, headphones, laptops, speakers, and other devices that operate on batteries. Who uses wireless? Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it.
  • Page 107 Appendix A - Wireless Basics Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers. Wireless network is easy to setup, but if you’re installing it for the first time it could be quite a task not knowing where to start. That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.

  • Page 108: Networking Basics

    Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

  • Page 109: Statically Assign An Ip Address

    Windows® 2000 - From the desktop, right-click on the My Network Places > Properties. Step 2 Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties. Step 3 Highlight Internet Protocol (TCP/IP) and click on the Properties.

  • Page 110: Fcc Caution

    -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Support: DSL-3580L , DSL-3581L, DSL-2880L D-Link DSL-3580L User Manual...

  • Page 111: Ic Caution

    Cet appareil num é rique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interf é rence et (2) cet appareil doit accepter toute interf é rence, notamment les interf é rences qui peuvent affecter son fonctionnement. D-Link DSL-3580L User Manual...

  • Page 112: Contacting Technical Support

    Appendix E – Contacting Technical Support Contacting Technical Support You can find software updates and user documentation on the D-Link websites. If you require product support, we encourage you to browse our FAQ section on the Web Site before contacting the Support line.

  • Page 113: D-Link Link'n Print

    D-Link Link’n Print allows you to share USB devices such as external storage drives and multifunction printers with other users across your network by simply connecting the device to select D-Link routers. This allows you to use an external storage drive or printer located across your network as if it were connected to your local PC.
  • Page 114 D-Link D-Link Link’n Print. 4. Right-click on in the System Tray at the lower-right corner on your Windows Desktop. A window pops up to display the D-Link Router. Enable Network USB on the D-Link Router 1. Click on the D-Link Router.
  • Page 115 1. Right-click on the icon. 2. Click on Open D-Link Link’n Print. 3. The D-Link Link’n Print displays the connected USB devices on the network. 4. Advanced Options can be set by clicking on Advanced Options. D-Link DSL-3580L User Manual...
  • Page 116 1. Move the cursor to Waiting to Connect and click on Connect to virtually connect a USB device. The D-Link Link’n Print displays which user is virtually connecting this USB device. Move the cursor to In Use By (Owner) and click on Disconnect to virtually disconnect the USB device.
  • Page 117 When the USB Device is a Multifunction Printer 1. Move the cursor to Waiting to Connect and click on Manage Device. 2. Click Yes on the question “Do you want to install the printer software or MFP utility?” D-Link DSL-3580L User Manual...
  • Page 118 When the installation process prompts you to connect the multifunction printer to your PC, click Next. 4. The D-Link Link’n Print virtually connects to this multifunction printer. Click Next D-Link DSL-3580L User Manual...
  • Page 119 Appendix F – DLink SharePort 5. Choose the printer driver that you want D-Link Link’n Print to auto-connect when you print. When You Want to Scan 1. Move the cursor to Available for Use and click on Scan Now. D-Link DSL-3580L User Manual...

  • Page 120: Technical Specifications

    G.dmt: full rate downstream: up to 8 Mbps / upstream: up to 1 Mbps • G.lite: downstream up to 1.5 Mbps / upstream up to 512 Kbps ADSL2 • G.dmt.bis full rate downstream: up to 12 Mbps / upstream: up to 1 Mbps D-Link DSL-3580L User Manual...
