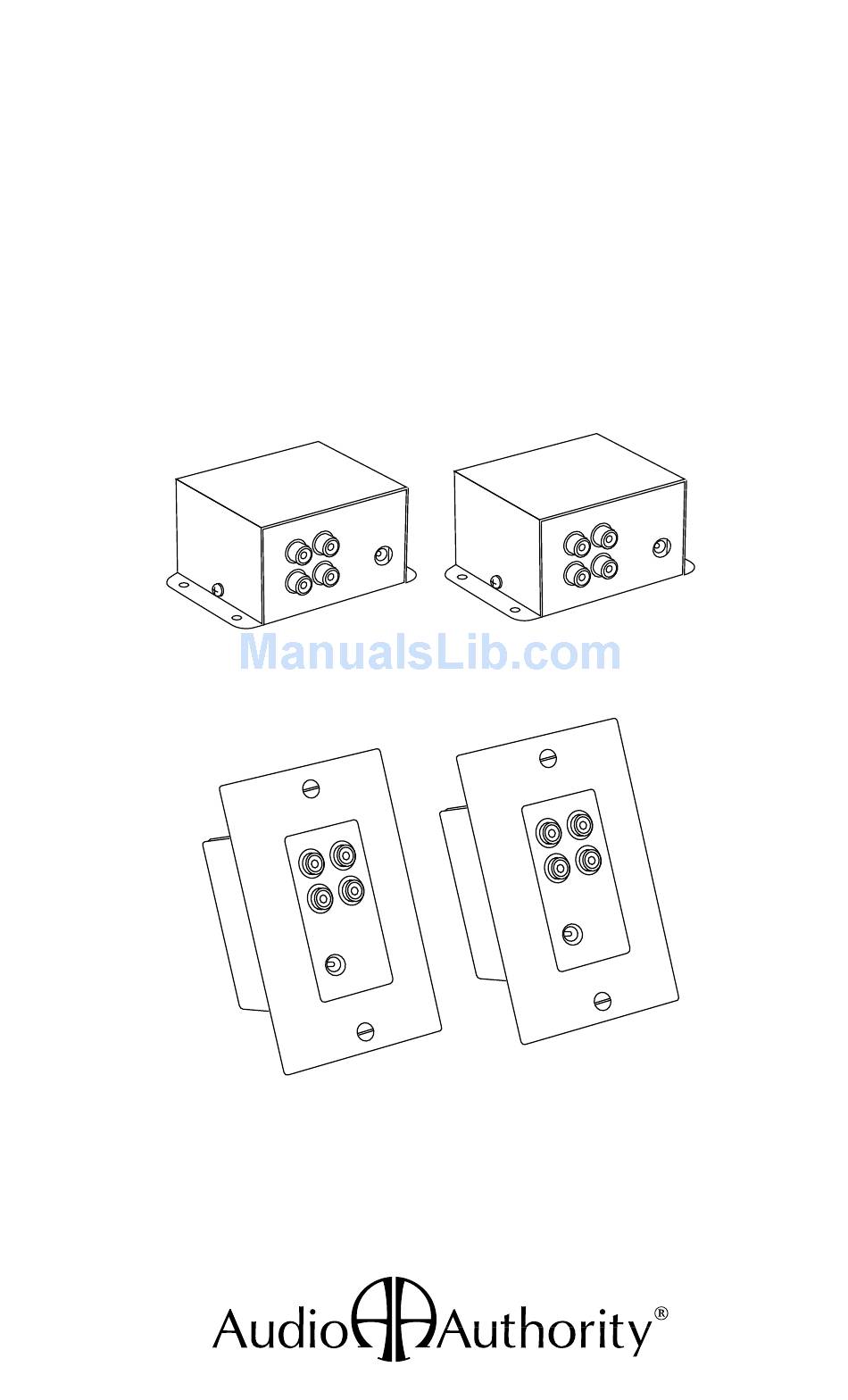

Page 1: User Manual
User Manual HDTV Cat 5 Extender Video and Audio Over One Cat 5 Cable Model SCP-11 and SCP-11D Model 1180T Transmitter Model 1180R Receiver Model 1180TD Transmitter Model 1180RD Receiver... - Page 2 Audio Authority reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable.
-
Page 3: Table Of Contents
Model SCP-11 and SCP-11D HDTV Cat 5 Extenders TABLE OF CONTENTS Introduction ..... . . 4 Checking Package Contents ....4 Installation . -
Page 4: Introduction
1.0 INTRODUCTION Thank you for purchasing this HDTV Cat 5 Extender from Audio Authority. The SCP-11 system incorporates the signal paths necessary for premium audio and video distribution over just one inexpensive, easy to install Cat 5e/6 cable. Each Cat 5 transmitter is capable of distributing HDTV signals to one or two receivers located up to 1,000 feet from the source. -
Page 5: Installation
3.0 INSTALLATION While the SCP-11 is ideal for new construction or an existing home, it does require special knowledge and tools to install. We suggest you contact a local custom home installation specialist. Many installation specialists are members of the Custom Electronic Design & Installation Association and can be located through the CEDIA website: www.cedia.org. - Page 6 3.2 ROUGH-IN AND WIRING The Cat 5 receiver is usually placed in or on the wall or ceiling behind a television display or near a projector that is remotely located from the main home entertainment system where the transmitter is located. To assure service access, it is recommended that a two- gang plaster ring be provided for an 1180R receiver if mounted inside a wall.
- Page 7 WARNING: continuity testing is not adequate; the twisted pairs must be placed in precise order in the connector, or damage to the equipment may occur. 3.3 INSTALLING THE CAT 5 RECEIVER(S) • Plug the Cat 5 cables into the 1180R or 1180RD. •...
-
Page 8: Adapting Dual Cat 5 Systems Using Model 1110
• Plug the Cat 5 cable into an output jack on the Transmitter (either or both may be used), and power up the A/V equipment connected at each end. • Power the SCP-11 system (install a receiver power supply if the Cat 5 cable is over 700 feet long). -
Page 9: Getting The Best Results
6.0 TROUBLESHOOTING GUIDE • Check the SCP-11 power LEDs, and make certain the transmitter AC adapter is plugged in to a working AC outlet. • Connect an AC adapter to the receiver in long distance applications. -
Page 10: Limited Warranty
7.0 LIMITED WARRANTY If any consumer product from Audio Authority fails due to defects in materials or workmanship within one year from the date of the original sale to the end- user, Audio Authority guarantees that we will replace the defective product at no cost. -
Page 11: Specifications
4 x 1.6 x 2.75 (without trim cover) 9.0 REGULATORY COMPLIANCE The SCP-11 has been tested for compliance with FCC rules and regulations. The power supply included has been tested for compliance with UL, CUL, CE, PSE, and GS regulations and guidelines and is RoHS compliant. - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com 752-584 5/09...
