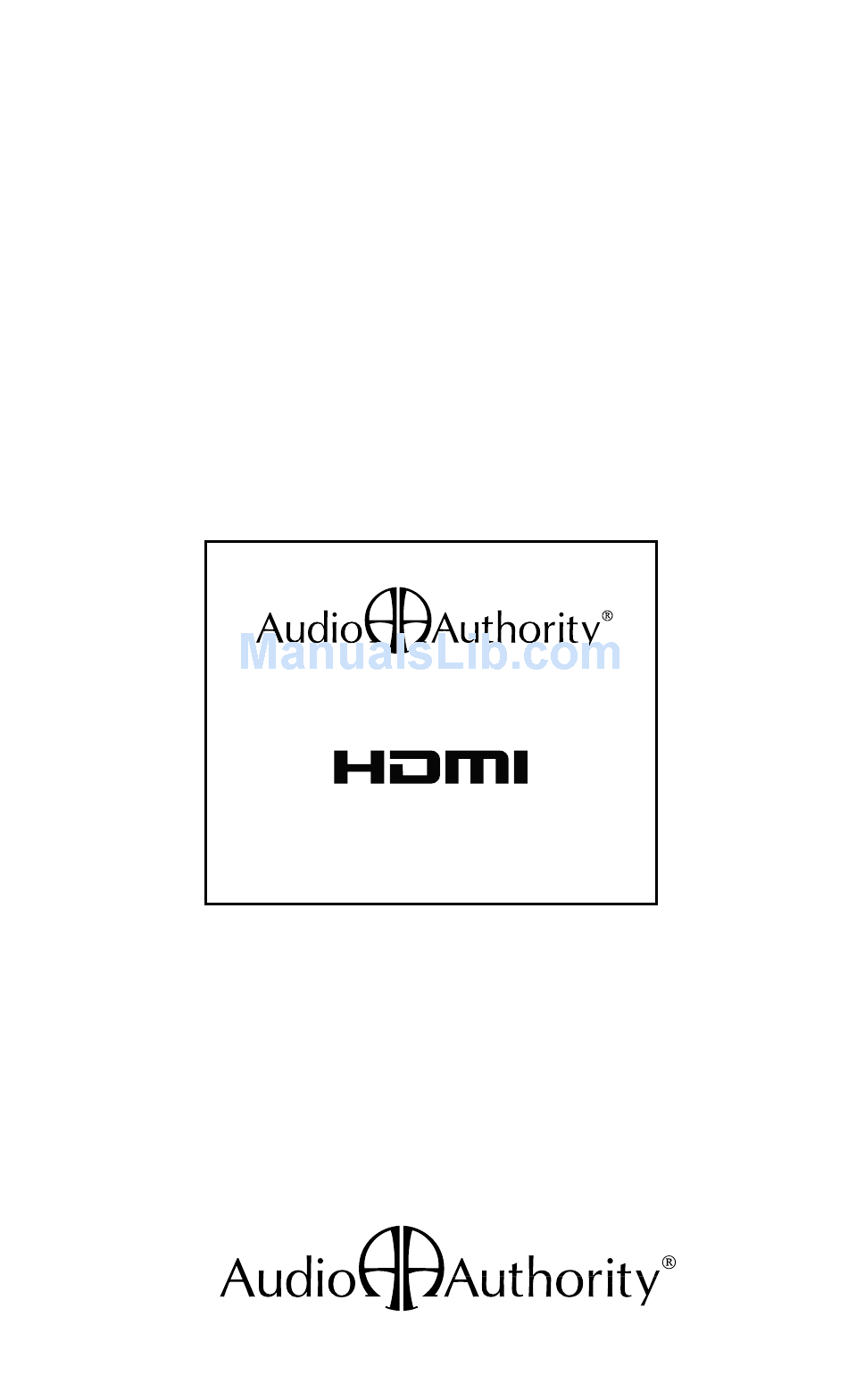

Page 1: User Manual
User Manual Model 1391 EQ / Extender www.audioauthority.com Model 1391 HDMI EQ/Extender POWER INPUT OUTPU ACTIVE DC 5V-2A... -
Page 3: Table Of Contents
Table Of Contents Introduction ..... . . 4 Specifications ..... . 5 Checking Package Contents . -
Page 4: Introduction
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. 1.2 FEATURES The 1391 has many features that enable it to perform in a superior manner. Among those features you will find: • Supports 480i, 480p, 720p, 1080i, 1080p •... -
Page 5: Specifications
2.0 SPECIFICATIONS Performance Resolutions Supported 480p, 720p, 1080i, 1080p Maximum Cable Length* Input: 40m max, Output: 5m max Maximum Bandwidth 1.65GHz HDMI Compliance Version 1.1 HDCP Function HDCP compliant I/O Connectors Input HDMI Type A x1 Output HDMI Type A x1 Mechanical Dimensions (H-W-D) 0.9 x 1.6 x 2.1 (22 x 40 x 53.5mm) -
Page 6: Checking Package Contents
Please study the panel drawings below and become familiar with the signal input, output and power input. Model 1391 HDMI EQ/Extender, top view. Model 1391 EQ / Extender Model 1391 EQ / Extender www.audioauthority.com www.audioauthority.com Model 1391 HDMI EQ/Extender, left and right views. POWER POWER INPUT OUTPUT INPUT OUTPUT... -
Page 7: Installing The Unit
AC adapter into an active AC socket. • Turn on the HDMI Source and HDMI Display Device. * The 1391 may be powered via the HDMI cable, however, the source device must supply a minimum of 200mA to the HDMI cable. Since this may be an unreliable power source, it is recommended that the AC Adapter provided with the unit be used. -
Page 8: Troubleshooting
• The input cable should be no more than 40 meters long and none of the output cables more than 5 meters long. • Make certain that the 1391 is receiving power by looking at the power LED. • Attempt to isolate the problem by first connecting the source device directly to the destination device using the same cables you are using with the expanded system. - Page 9 Notes...
-
Page 10: Limited Warranty
7.0 LIMITED WARRANTY Should any consumer use product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). -
Page 11: Regulatory Compliance
8.0 REGULATORY COMPLIANCE The 1391 EQ/Extender has been tested for compliance with appropriate FCC and CE rules and regulations and are also RoHS compliant. The Power Adaptor/Supplies have been tested for compliance with UL, CE and CSA rules and regulations and are also RoHS compliant. - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 Website: http://www.audioauthority.com E-070 12/06...
