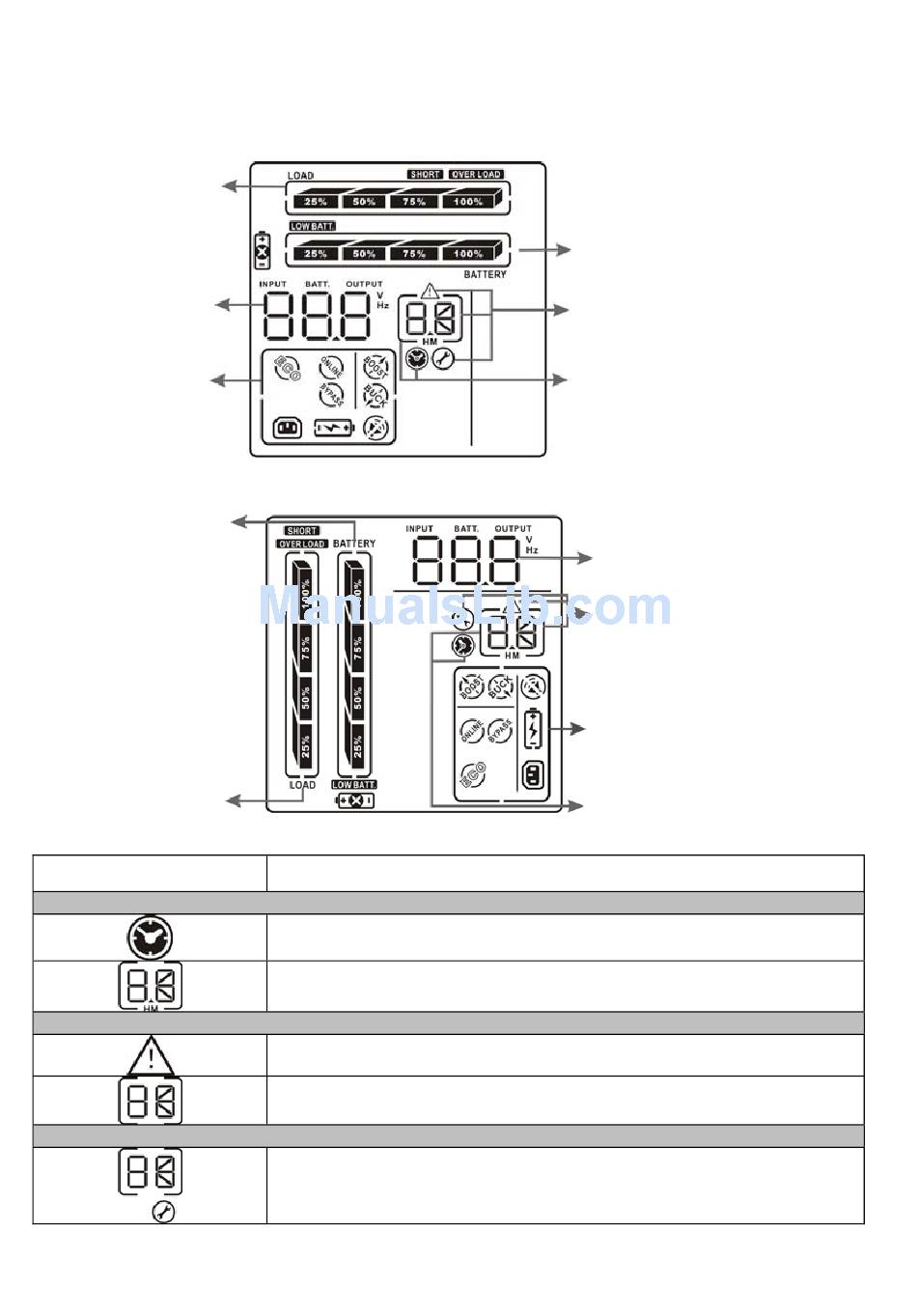

3.2 LCD panel

1) Rack display

Load info.
Input/output
and battery
info.
UPS status

2) Tower display

Battery info.
Load info.
Display

Backup time information

Warning & fault information
Setting operation
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
10
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 07 11 AA 59 203 07
Indicates the backup time in pie chart.
Indicates the backup time in numbers.
H: hours; M: minute.
Indicates that warning and fault occur.
Indicates the warning and fault codes
(codes are listed in details page 16).
Indicates the setting operation.
Battery info.
Warning
& fault info./ Setting operation
Backup time info.
Input/output
and battery info.
Warning & fault info./
Setting operation
UPS status
Backup time info.
Functions
