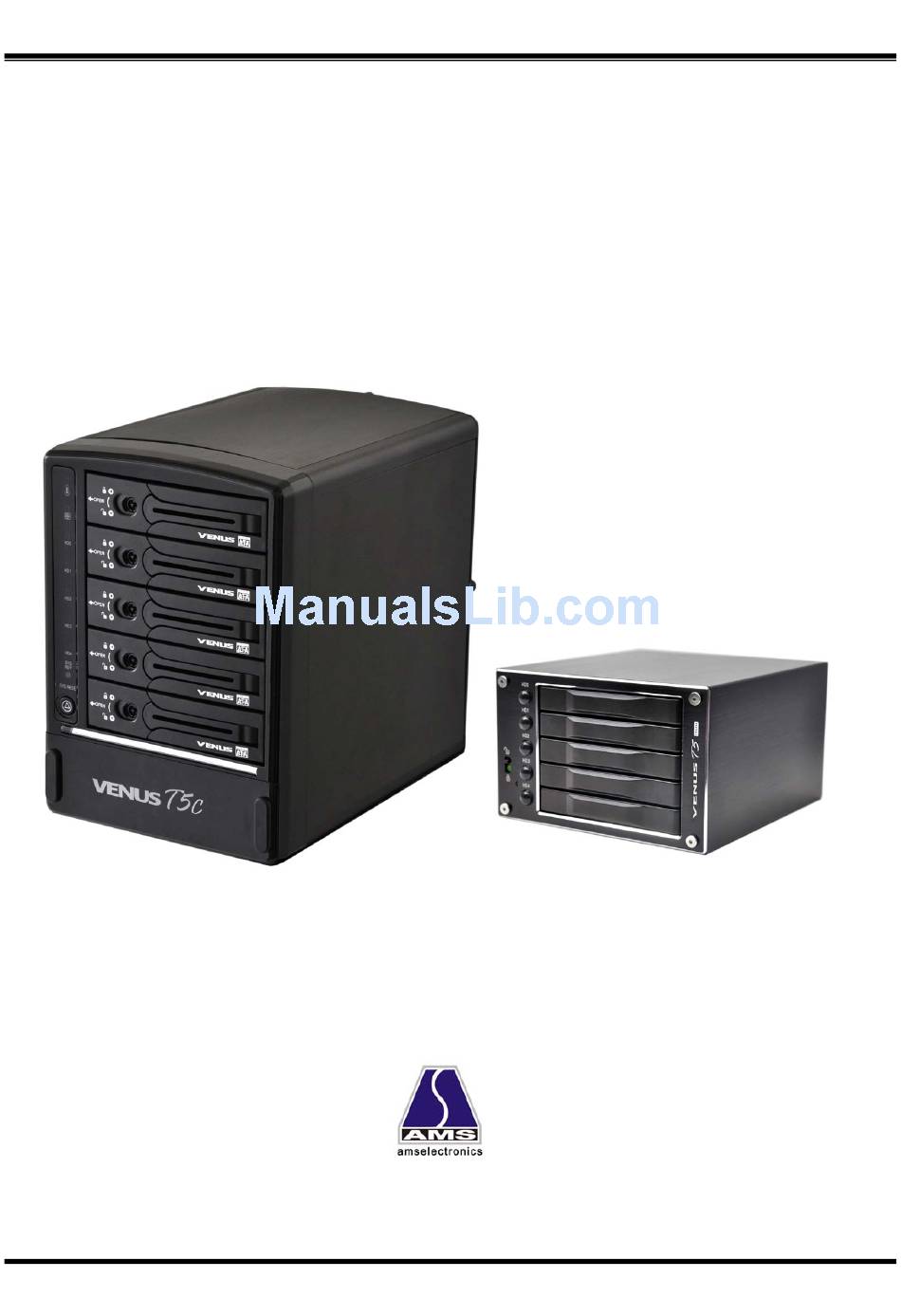

  • Page 1 Venus T5c Series Venus T5c series SATA RAID User Manual DS-2350C DS-2250C Model: Model: (For 3.5” SATA) (For 2.5” SATA) www.american-media.com Page 1...
  • Page 2 Venus T5c Series 1. Features of Venus T5c mini All Aluminum design Plug & play, hot swappable, Support Windows, Mac & Linux Built-in DIP Switch RAID mode setting LED indicators (for AC Power, HDD Error, HDD Access) Double Security handle lock Port Multiplier -- support up to 5 x 2.5”...
  • Page 3 Venus T5c Series --Rear View--- (see Figure 7) B1: Power Input (+5V 4A ) B2: E-SATA port B3: Raid Setting DIP Switch (*7 Raid Mode: Raid 0, 10, 3, 5, JBOD, Single, Clone) B4: Reset Device / Change Mode Button 1.

  • Page 4: Dip Switch And Raid Mode Cross Reference

    Venus T5c Series Raid Status LED Indicator [see figure 6, A1~A5] Access Blue/Flash RAID10 rebuilding Blue & Red/Flash Access Blue/Flash RAID3 rebuilding Blue & Red /Flash Access Blue/Flash RAID5 rebuilding Blue & Red /Flash JBOD (Large) Access Blue/Flash Access Blue/Flash...
  • Page 5 Venus T5c Series 2.2 RAID 1 (Mirror) for High Security Mirror or RAID 1 is the replication of data onto separate hard disks in real time to ensure continuous availability. Take a RAID 1 system with two hard disks as an example, data in a hard disk will be exactly the same as the data in another hard disk.
  • Page 6 Venus T5c Series 2.4 Clone The action of Clone is similar to RAID 1. However, all of the hard disks will be the mirrors. For example, in a four hard drives Clone environment, data in each hard drive will be same. This mode is useful especially when users would like to copy data from a hard drive to several hard drives at the same time.

  • Page 7: Parity Protection

    Venus T5c Series 2.6 Parity Protection XOR engine in T5 generate parity block. In RAID 3 mode, Parity Block will be stored in the same hard drive. While in RAID 5 mode, Parity Block will be spread over all of the different hard drives.
