NIX X10F User Manual

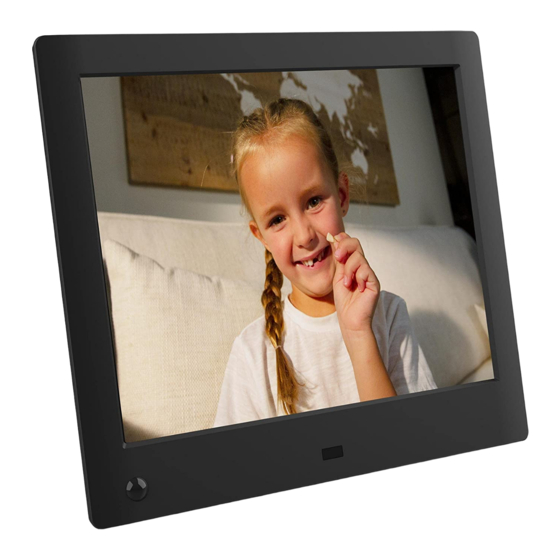

10 inch ultra thin motion sensor frame
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10F and is the answer not in the manual?

Questions and answers

Related Manuals for NIX X10F

Summary of Contents for NIX X10F

  • Page 3: Table Of Contents

    Contents Getting Started..........................2 Viewing Your Photos........................2 Viewing Your Videos........................4 Clock and Calendar........................4 Motion Sensor..........................5 Deleting Files ……......................... 6 USB Flash Drive........................... 7 Settings............................8 Diagrams and Specifications......................9 Remote Control.......................... 11 Notes Of Importance........................12 Safety &...

  • Page 4: Getting Started

    Getting Started 1) Insert the power lead into the Digital Photo Frame’s socket marked DC 2) Turn on the Digital Photo Frame by pressing the POWER button on the back of the unit. Main Menu: After turning on the unit, this screen will appear: If you have memory devices inserted into the frame (ie SD/SDHC or USB Flash Drive), they will appear as an extra icon in this Menu.
  • Page 5 During a slideshow, you can press the MENU button and an info bar will appear on the screen. This allows you to skip back and forth through the slideshow, rotate a photo, stop the slideshow or zoom in on a photo. Press [◀][▶] and ENTER to make a selection.

  • Page 6: Viewing Your Videos

    Viewing Your Videos This Digital Photo Frame allows you to view MPEG-4/AVI Video files only. It is not “HD Ready”. If you encounter problems with video playback, please refer to our website FAQ section where there are links to Video Conversion programs. ▪...

  • Page 7: Motion Sensor

    2) To view the Calendar, choose the Calendar icon from the Main Menu. A Photo slideshow will play in a small window in the lower right corner. Motion Sensor For Energy-Saving and convenience, you can set the Digital Photo Frame to automatically turn on when it detects human movement and off when there’s nobody around it.

  • Page 8: Deleting Files

    Deleting Files Generally, we would recommend editing and deleting your files on a Computer, as the process is much faster. With this Digital Photo Frame though, you can delete files from the storage device. ▪ From the Main Menu, select the Memory Device where the relevant file is stored, ie USB, SD etc.

  • Page 9: Usb Flash Drive

    ▪ Now press the MENU button on the Remote Control. ▪ Select DELETE, by highlighting it and pressing ENTER. ▪ If you are deleting, you will be asked to confirm you want to proceed by selecting the tick icon and pressing ENTER. USB Flash Drive You are able to store your photos, videos and music onto the 4GB USB Flash Drive supplied with this Digital Photo Frame.

  • Page 10: Settings

    Settings Select the ‘setup’ icon from the main menu, to adjust the settings on your Digital Photo Frame. Alternatively, just press the ‘setup’ button on the Remote Control From here, you will see the various options: [▲][▼] button: Move through items or choose parameters [◀][▶]button: Change the parameters ENTER: Confirm/ Save Changes EXIT: Back to item list.

  • Page 11: Diagrams And Specifications

    Diagrams and Specifications Package Contents: Please make sure all of the following are present when you unpack your Digital Photo Frame. If there are any parts missing, contact us via www.nix-digital.com and we will send you the relevant part. Digital Photo Frame...
  • Page 12 Rear Overview: Front View: Top View:...

  • Page 13: Remote Control

    Remote Control Note: 1) Please remove the plastic tab between the Remote Control Battery Door and the Battery 2) Please point the Remote Control toward the Remote Sensor, which is located on the bottom center of the frame’s panel.

  • Page 14: Notes Of Importance

    Notes Of Importance ▪ Never remove a Memory Card or USB Flash Drive from a Digital Photo Frame whilst any media is being copied or deleted. ▪ Never remove a Memory Card or USB Flash Drive from your personal computer without first correctly ejecting it.

  • Page 15: Cleaning Your Digital Photo Frame

    In case of loss or failure of the adapter, please contact our service department via www.nix-digital.com telling us the model of frame, where and when purchased, your address and we will send you a new adapter.
  • Page 16 Q: Why won't the Photos I edited in Photoshop play on my Digital Photo Frame? A: NIX Frames recognize JPEG files only, so if an image is taken into Photoshop for alterations make sure you save your work as JPEG-STANDARD or STANDARD-JPEG. Also, if you have saved files as CMYK, they will be unreadable, so you should convert them to RGB.
  • Page 17 will not have actually saved in the new orientation, for the Digital Photo Frame to recognise this. To properly save photos in an exact orientation on your PC, you need to do so using a Photo Editing Program that enables this, such as iPhoto, Photoshop.
  • Page 18 This frame comes with a full one-year Manufacturer’s Warranty. You do not need to register your Warranty. In the event your fame requires any servicing, you just need to contact us via www.nix-digital.com. our website: Please provide a copy of your original order information as proof of purchase.
  • Page 20 Digital Photo Frames. Please contact us with suggestions, comments, possible improvements or even design ideas! NIX is a registered trademark of Creedon Technologies Ltd., UK, Creedon Technologies Ltd., Canada and Creedon Technologies USA LLC. This product is designed in London, UK and made in China.
